Automatic Sliding Door, Fine Frame ESA400 Showcase

Automatic Sliding Door, Fine Frame ESA400 Showcase

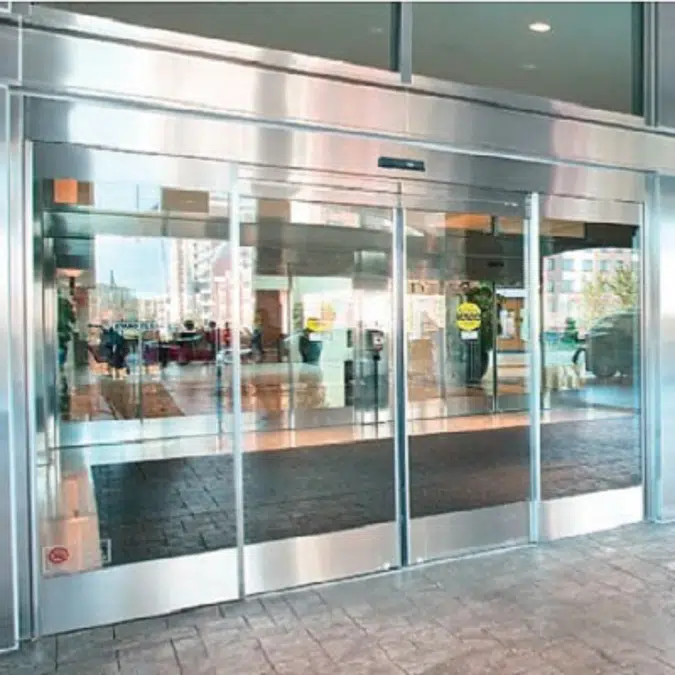

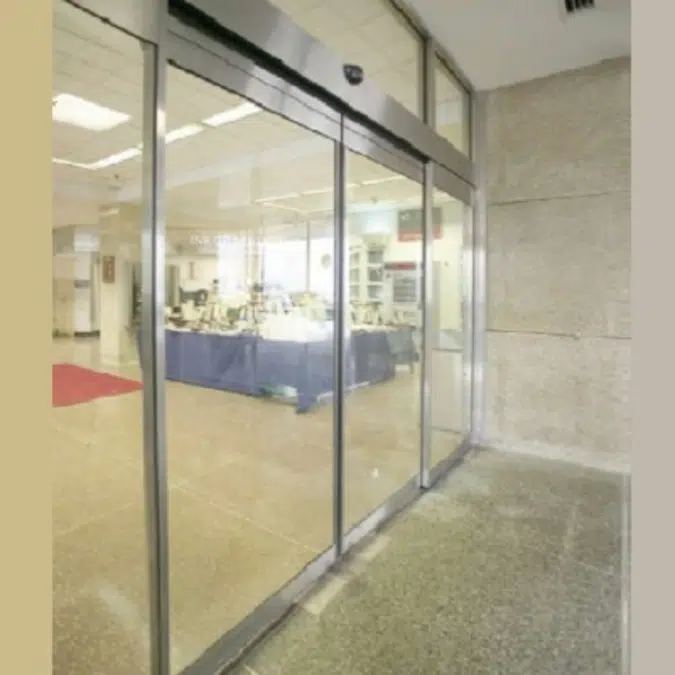

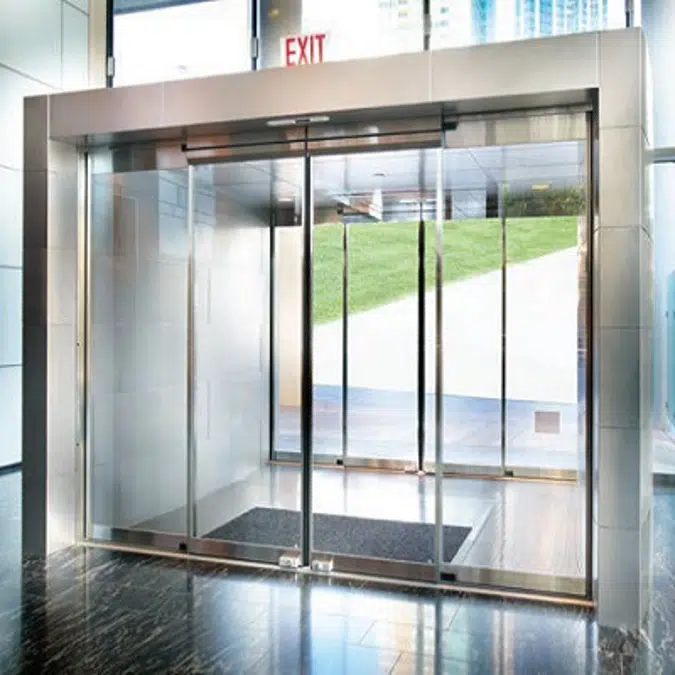

Fine Frame Full Breakout Automatic Sliding Door

For elegant and upscale applications, the ESA400 Fine Frame is a perfect marriage of beauty and functionality. Including full breakout capability, the ESA400 combines full view aesthetics with excellent weather-sealing qualities. The ESA400 is ideal for interior or exterior applications including high-end retail stores or modern office buildings. Full breakout provides enhanced egress capacity or an expanded pass-through opening to move large objects, displays, and equipment.

Fine-Frame profile nearly disappears from view
Full breakout of active and fixed panels
Adjustable astragal
Factory-glazed 3/8" thick tempered glass
Dual vertical weather sweeps
Overhead combination safety and activation sensors

Specification

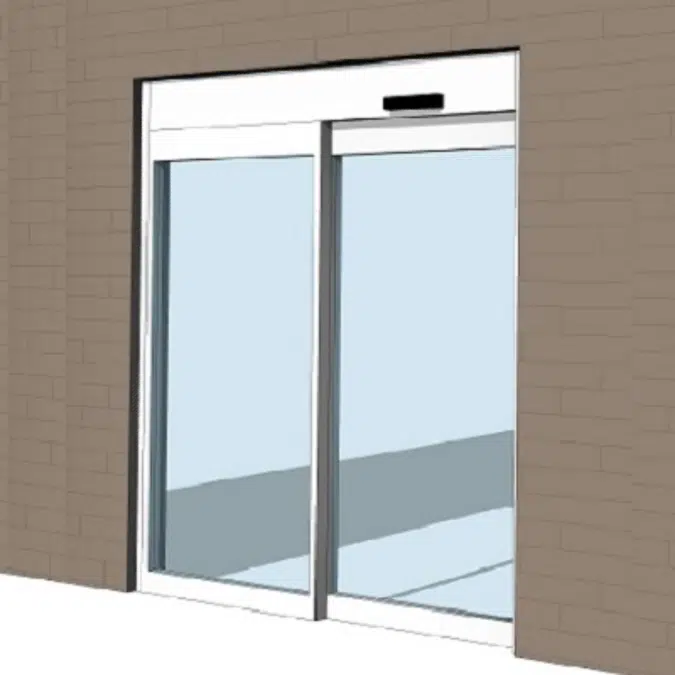

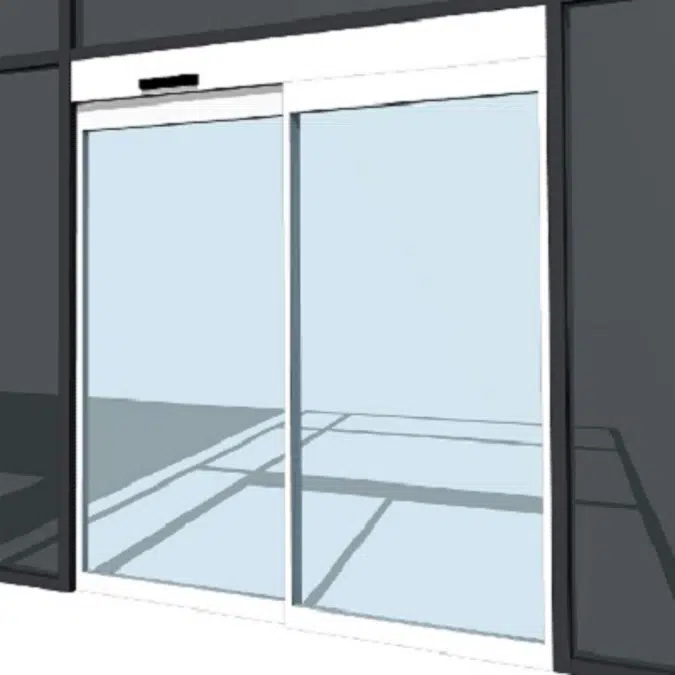

REVIT .rfa Filename Format
The BIMobject filename indicates Revit wall types application:
- Solid Wall, [no tag]
- Curtain Wall, CW
The BIMobject filename indicates the door assembly type:
Single panel doors
- S Single panel
Bi-parting panel doors
- B Bi-parting panels
CAD DWG format files are available online through the dormakaba ESA400 product page.

Technical specification

Unique ref.automatic_sliding_door_ESA400
Product familyEntrance
Product groupAutomatic Sliding Doors
TypeShowcase (model)
Date of publishing2021-08-20
Edition number1

Links

Material mainGlass
Material secondaryMetal
Designed inUnited States
Manufactured inUnited States

Classification

BIMobject CategoryDoors - Sliding
CSI MasterFormat 2014 Code08 42 29
CSI MasterFormat 2014 TitleAutomatic Entrances
