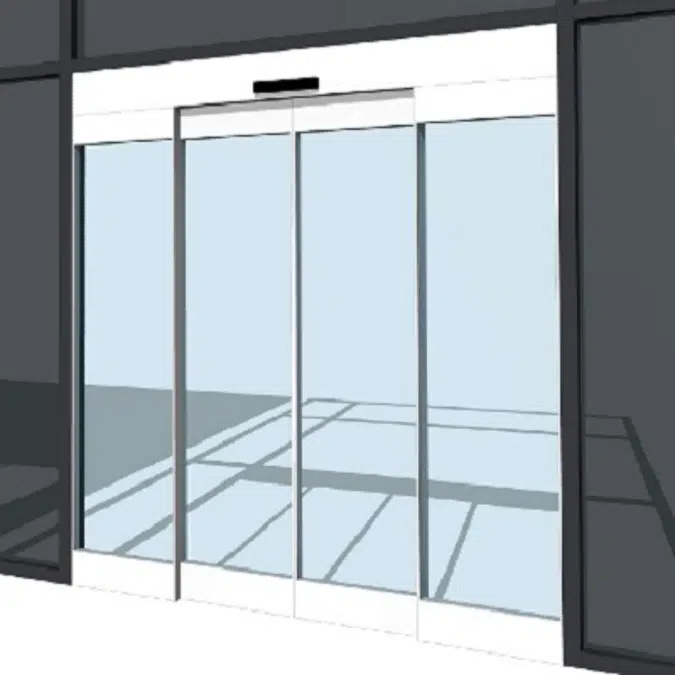

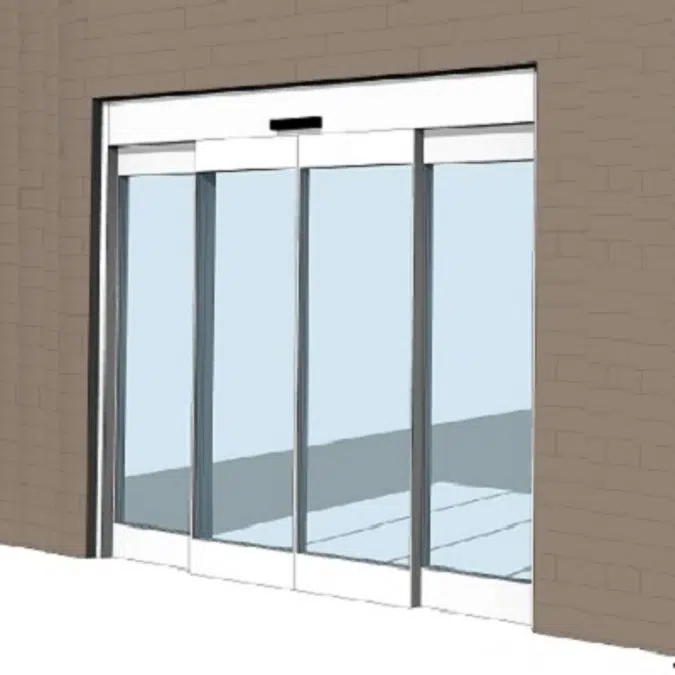

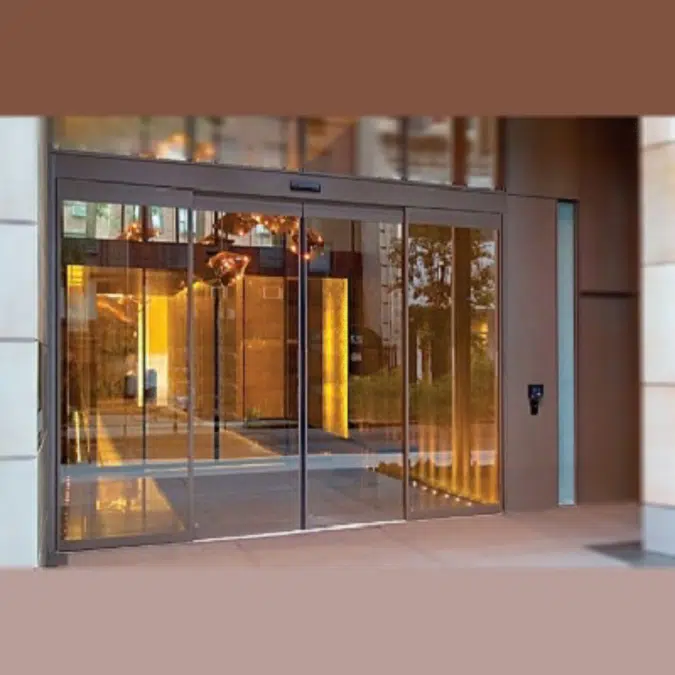

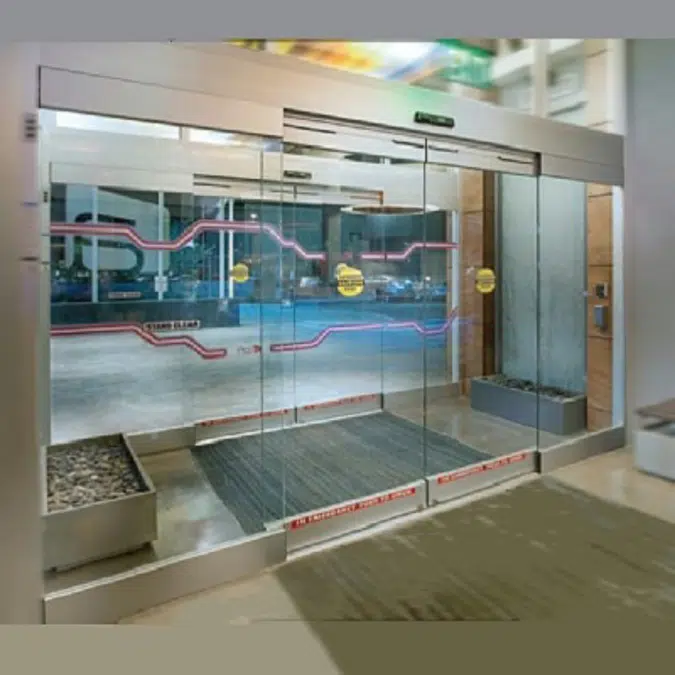

    ESA500 All Glass Partial Breakout Automatic Sliding Door

    Perfect for creating an all glass look for interior applications. Superior choice for interior openings (also appropriate for exterior applications in temperate climates). Suitable for larger openings with extended width sidelites.

    The ESA500 is an all glass (having top and bottom rails only) automatic sliding door designed primarily for interior applications where emergency breakout of only the active sliding panels is required.

    • Graceful lines with no vertical stiles, 1/2" thick tempered glass, typical
    • Only the active sliding panels break out
    • Dual vertical weather sweeps
    • Recessed floor track adjacent to sidelite
    • Clear or dark bronze anodized aluminum finish
    • Overhead combination safety and activation sensors
    Specification
    • REVIT .rfa Filename Format

      The BIMobject filename indicates Revit wall types application:

      • Solid Wall, [no tag]
      • Curtain Wall, CW

      The BIMobject filename indicates the door assembly type:

      Single panel doors

      •        Single panel

      Bi-parting panel doors

      • B        Bi-parting  panels
      • BP      Bi-parting  panels, vertical Pocket tubes

      CAD DWG format files are available online through the dormakaba ESA500 product page.

    Technical specification
    • Unique ref.automatic_sliding_door_ESA500
    • Product familyEntrance
    • Product groupAutomatic Sliding Doors
    • TypeShowcase (model)
    • Date of publishing2021-08-20
    • Edition number2
    Related
    • Material mainGlass
    • Material secondaryGlass
    • Designed inUnited States
    • Manufactured inUnited States
    Classification
    • BIMobject CategoryDoors - Sliding
    • CSI MasterFormat 2014 Code08 42 29
    • CSI MasterFormat 2014 TitleAutomatic Entrances
