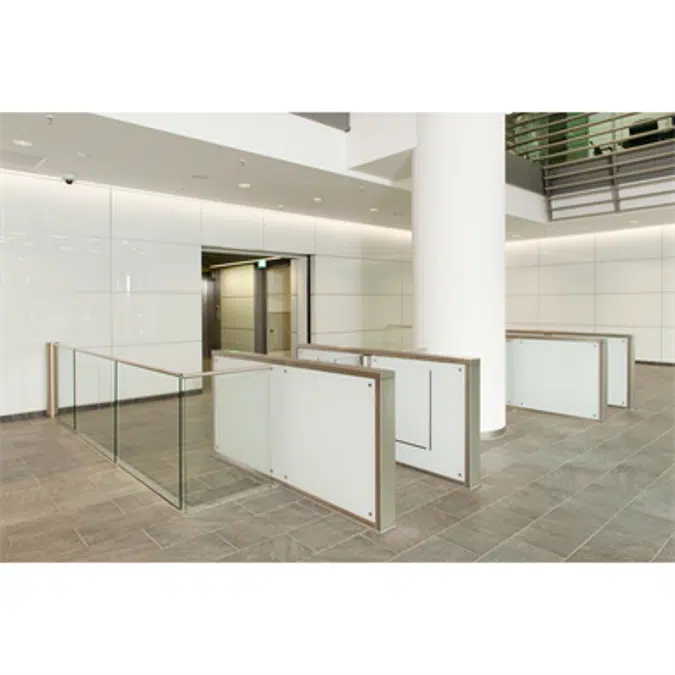

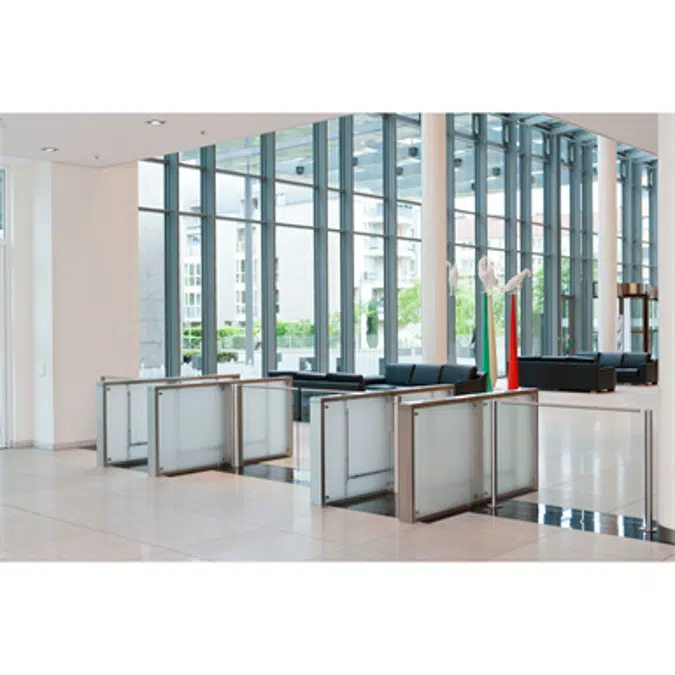

Half-height Sensor Barrier Argus HSB-S05

Passage width = 650 mm, total width = 1.070 mm, interlock height 945 mm,
interlock length = 2.010 mm
Guiding elements made of rectangular stainless steel posts AISI 304 with 8 mm
tempered and satined safety glass panels and stainless steel bar handle AISI 304.
Sensor system integrated in the guiding elements. The sensors are covered by the
satined glass panels and infrared transmissible segments.
Two door leaves made of transparent polycarbonate, upper edge 900 mm.
Drive housing made of stainless steel AISI 304.
Stainless steel satin finish.
Function Type 2 power assisted motion; 2 servo positioning drives / 2 directions electrically
controlled, drives integrated in the rotating tube.
Entrance sector monitored by enhanced sensor system in optimised overall length
and alignment (increased level of single passage monitoring in both directions,
security level 2). Integrated protection against entry from below, identification of
trolleys, detection of children. Protective device: rotation angle of the door leaves is
monitored by the same sensor system.
2 operation modes are possible:
Default position "day-operation" open: the door leaves close automatically if
somebody tries to pass without authorisation
Default position "night-operation" closed: the door leaves open automatically for
authorised persons in the passage direction and then close again after passage
In the case of a power failure: door leaves can be moved freely

Technical specification

Unique ref.Argus_HSB-S05
Product familyEntrance
Product groupSpecial Doors
TypeObject (single object)
Date of publishing2020-02-25
Edition number1
Height (mm)945
Width (mm)1070
Depth (mm)2010

Links

Product urlhttps://www.dormakaba.com/gb-en/solutions/products/entrance-systems/speed-gates/argus-hsb-267676

Material mainGlass
Material secondaryPolycarbonate
Designed inGermany
Manufactured inGermany

Classification

BIMobject CategoryDoors - Security Doors
