Z5645-BWL Flush Valve Water Closet
Zurn

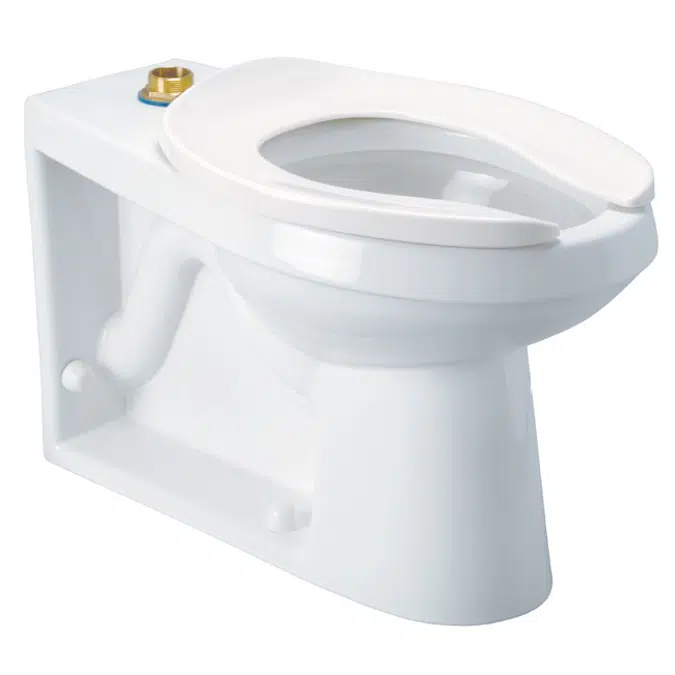

Z5645-BWL Flush Valve Water Closet

Vitreous china, 1.1 gpf [4.16 Lpf] or greater, high efficiency, floor mounted back outlet toilet with siphon jet flushing action, ZurnSHIELD™ ceramic glaze, elongated front rim, ADA compliant rim height, 1-1/2” [39mm] top spud inlet connection and 4-1/8” [105mm] back outlet rough-in height. This bowl is designed to perform to industry standards with as little as 1.1 gallons per flush, engineered to provide optimal performance.

规格
  • • Zurn High Efficiency Toilets and paired performance flush valve systems are designed to exceed industry standards while using as little as 1.1 gallons of water per flush

    • Universal high efficiency toilet can be specified with 1.28gpf [4.8 lpf], 1.6 gpf [6.0 lpf] or dual flush valves

    • Vitreous china

    • ZurnSHIELD™ ceramic glaze creates a permanent surface that protects the fixture by inhibiting the growth of stain and odor causing mold, mildew, and bacteria, thus reducing the amount of time, chemicals and water needed to clean the bowl

    • 4-1/8” [105mm] Back Outlet Rough-in

    • Elongated front rim

    • ADA Compliant rim height

    • 2-1/8” [54mm] fully glazed trapway

    • High efficiency siphon jet flush action

    • Includes bolt caps

    • Shipping Weight: 65 lbs

技术规格
  • 唯一参考z5645-bwl
  • 产品系列Finish Plumbing - Fixtures
  • 产品组Water Closets
  • 类型对象(单个对象)
  • 发布日期2024-02-19
  • 版本号1
  • 高度 (inch)16.62
  • 宽度 (inch)14.37
  • 深度 (inch)27.37
相关
  • 主材料玻化瓷
  • 设计国家/地区美国
  • 净重 (Lbs)65
分类
  • BIMobject 类别卫生 - 洗手间
  • IFC 分类卫浴终端
  • Uniclass 2015 代码SL_35_80_89
  • Uniclass 2015 说明Toilets
  • CSI MasterFormat 2014 代码22 42 13
  • CSI MasterFormat 2014 标题Commercial Water Closets, Urinals, and Bidets
  • OmniClass 编号23-31 19 19
  • OmniClass 标题Water Closets
