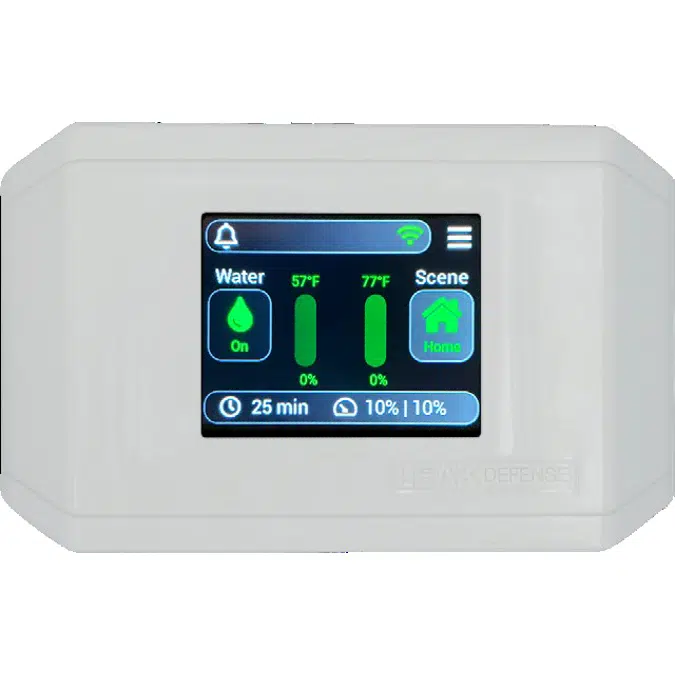

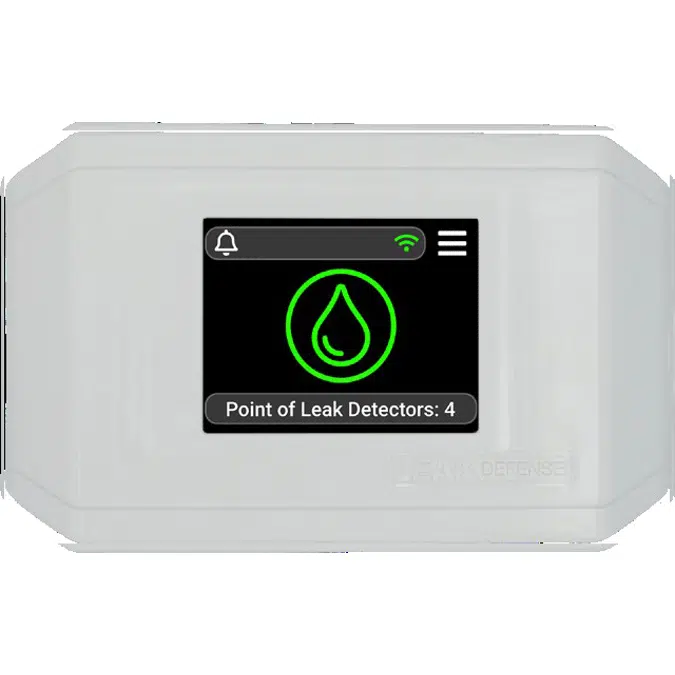

Control Panel (CCMv3) - LDS-3-WCP

Single LDS Valve/POLD Control

Features

• Local monitoring & control for a single Leak Defense Valve or POLD Only System
• Central hub for all Wireless connections to LDS, POLD(s)*, and API(s)**
• Connect to WiFi for remote monitoring and control via the app
• 1 panel can be wired by Sentinel to allow for simultaneous shutoff of two valves (hot/cold)

*Point of Leak Detector **All-Purpose Interface

规格

Feature List

Wall Power	NEMA 5-15R 120 VAC (Non-GFI)*
Transformer	NEMA 5-15P IN: 120VAC OUT: 12VDC (6ft cable length)
Non-Continuous Max Power Draw	0.5 amp
Continuous Idle Power Draw	0.2 amp
Power Terminal	Barrel plug or terminal hard-wired
Input Auto Reset PCB Fuse	Longer life, no maintenance
Inputs	Common alarm customer input to shut valve off
Dry Contact Alarm Output Relays	1 - N/O (50 mA)
User Interface	Color LCD touch screen
Audible Alarm	Yes
Communication	RF: 433 MHz to valves and accessories
WiFi Connection	2.4 GHz b.g.n (No 5GHz Support)
Internet Capable	Yes - w/ Web & Molbile app (iOS & Android)
Mounting	Wall/panel mounting
Number of Valves Monitored	Maximum 2
Number of POLDs	150, within RF range of WCP
Number of Uniqle POLD Zones	15 field paired (30 if factory paired)
