Office Acoustics
Office Acoustics
Office Acoustics
Office Acoustics

    Office Acoustics

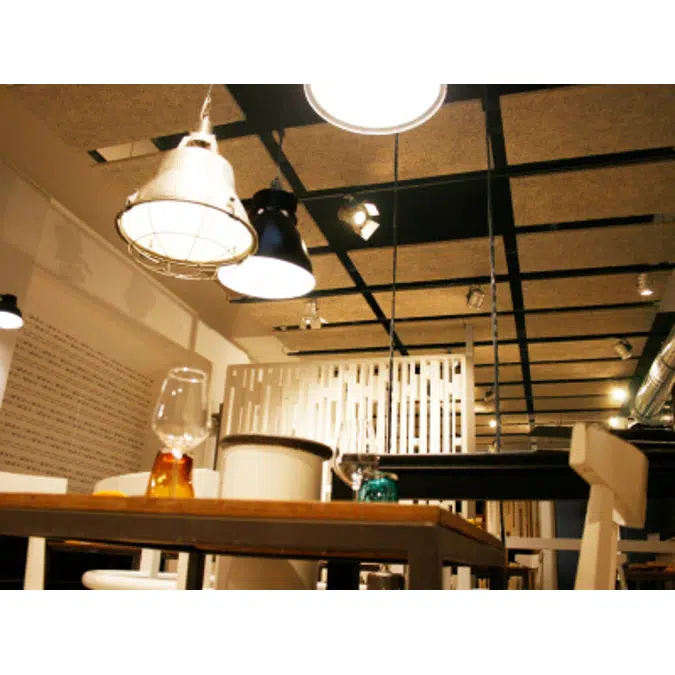

    The Troy “9-to-5" Office Acoustics System is a holistic approach to workplace environment noise control through innovative ceiling and wall designs. Troy’s Portland cement/ wood fiber boards and tiles combined with Troy’s organic mineral wool provide superior barrier (STC) and absorptive (NRC) qualities. The Troy system can be shipped anyplace in the world and installed with local labor according to Troy designs.

    .

    key words: office, workspace, open plan, cubicle, partition, privacy, meeting space, work space, desk, suspended, customer service, call centers, executive, creative, loud machines,

    规格
    • Wood Fiber and Portland Cement Boards

      Troy Boards (TB) are produced from Portland Cement and wood fibers resulting as the superior acoustical performance material for loud noise environments. Troy Boards are low VOC and are sourced from sustainably managed forest. Troy Wool (TW) is a 2.5 lbs. density mineral wool, produced from Basalt rocks. The Troy System materials TB and TW are natural and organic in composition.

      Physical Properties

      ¨ Zero (0) Flame Spread as per UL

      ¨ Zero (0) Smoke Developed as per UL

      ¨ NRC of .85 for Baffles/Safety Ceiling

      ¨ NRC of .89 for Range Walls

      ¨ Acoustical tests per Riverbank Laboratory

      ¨ NRC 1.0 for absorption ceiling

      ¨ Waterproof, can be used outdoors

      ¨ Does not support Fungi Growth

      ¨ Does not support Microbial growth

      Applicable Standards

      ¨ Acoustical per Riverbank Laboratory

      ASTM C423-09a, ASTM E795-05

      ¨ CAC per USG Testing

      ASTM E1414-16

      ¨ Microbiological Testing per Accugen Labs

      ASTM G21, ASTM E 2180

      ¨ Splatter & Ricochet Protection testing by USAF

      ¨ Fire Rating per Underwriters Laboratory ASTM E84 as per UL 723


      Load Weights

      ¨ 1” TB and 2” TW for Direct attach to Ceiling Decks is 3.5 lbs./sq. ft.

      ¨ 2” TB and 2” TW for Direct Attach to Walls is 5 lbs./sq. ft.

      ¨ 1” TB and 6” TW for Suspended Absorption Ceilings is 3.5 lbs./sq. ft.

      OTHER

      ¨ Fire Rating per Underwriters Laboratory

      Report # R27255-20120503

      ¨ Acoustical Performance per Riverbank Laboratory

      Report # RAL– A11-205, A11-206

      ¨ Anti-Fungal and Anti-Microbial tests per

      Accugen Laboratory Report # 175034, # 175035

    技术规格
    • 唯一参考office-acoustics
    • 产品系列Acoustics
    • 产品组Offices
    • 类型对象(单个对象)
    • 发布日期2022-09-07
    • 版本号1
    相关
    • 主材料Cementitious
    • 次要材料木头
    • 设计国家/地区美国
    • 制造国家/地区美国
    分类
    • BIMobject 类别建筑材料 - 吸音板及配件
    • IFC 分类建筑元素
    • Uniclass 2015 代码Ss_25_25_05
    • Uniclass 2015 说明Acoustic panel systems
    • CSI UniFormat II 代码F1030
    • CSI UniFormat II 标题Special Construction Systems
