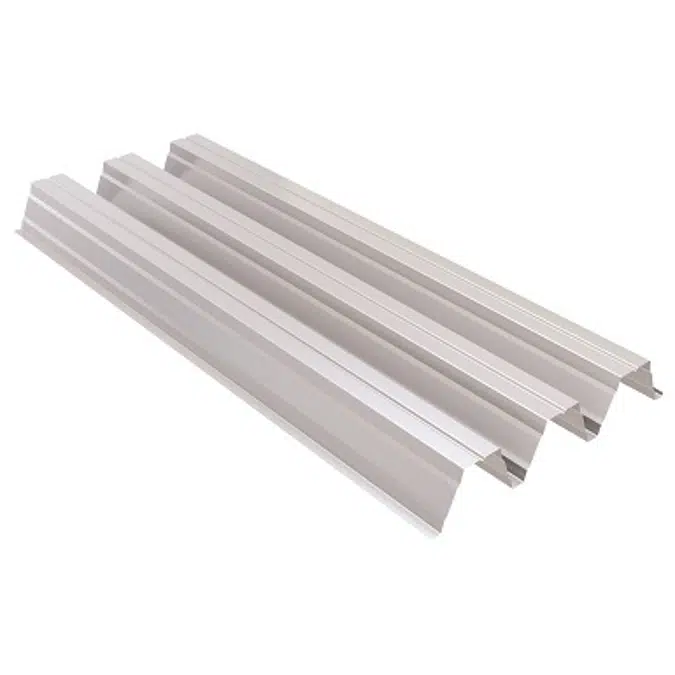

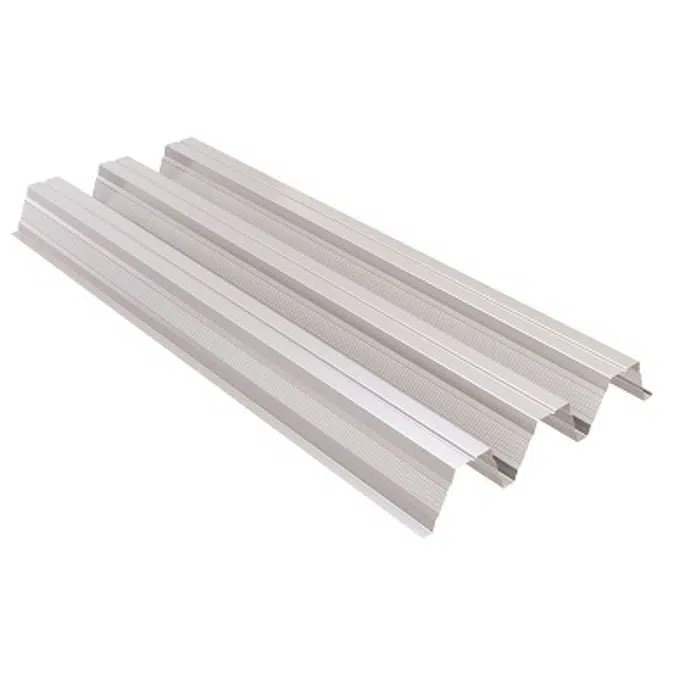

RoofDek D153 (Deep Deck) - Structural decking for roofs

RoofDek D153 (Deep Deck) - Structural decking for roofs

Deep decks have exceptional strength and span capability, providing a rugged structural platform for all roofing types. They are ideal for architecturally interesting large space buildings as they eliminate the need for purlins, but are used in any situation where a strong solid base for the roof is required. Single ply roofs, metal standing seam, asphalt and bitumen roofs all use deep RoofDek, and in recent years they have been the default choice for green roofs, which impose a heavy dead load. When specifying deep decks, designers frequently take advantage of Tata Steel's free diaphragm design service to reduce or eliminate in plane roof bracing.

规格

Subject to satisfactory fixings, the decks will resist wind uplift to at least the value of 1.50kN/m2, and a deflection limit of L/90. Full load span tables may be obtained from our website: www.tatasteelconstruction.com or from our technical department. Sheet lengths in excess of 12 metres are not practical for installation on site and may also be subject to delivery restrictions. Extended end laps can be used to create a double span whilst keeping the deck length to a minimum. If a deck length in excess of 12 metres is nevertheless required, contact our Technical Department for assistance. Also, please see our brochure: https://www.tatasteelconstruction.com/static_files/Tata%20Steel/content/products/Building%20Systems/RoofDek/Structural%20Liner%20Tray/downloads/RoofDek%20Structural%20Roof%20Decking%20and%20Trays%20brochure.pdf

技术规格

唯一参考roofdek-d153
产品系列Structural Roofing Systems
产品组RoofDek
类型对象（单个对象）
发布日期2016-09-02
版本号1

链接

相关

主材料钢
次要材料铝
设计国家/地区英国
制造国家/地区英国

分类

BIMobject 类别建筑 - 屋顶
IFC 分类屋顶
Uniclass 2015 代码Ss_30_40_65_50
Uniclass 2015 说明Metal profiled sheet roof covering systems
CSI MasterFormat 2014 代码07 61 00
CSI MasterFormat 2014 标题Sheet Metal Roofing
OmniClass 编号23-13 39 27 11 13
OmniClass 标题Sheet Metal Roofing
CSI UniFormat II 代码B3010
CSI UniFormat II 标题Roof Coverings
