7" x 43" Fiberglass, Urethane, & Synthetic Stone Balustrades, Railing System

7" x 43" Fiberglass, Urethane, & Synthetic Stone Balustrades, Railing System

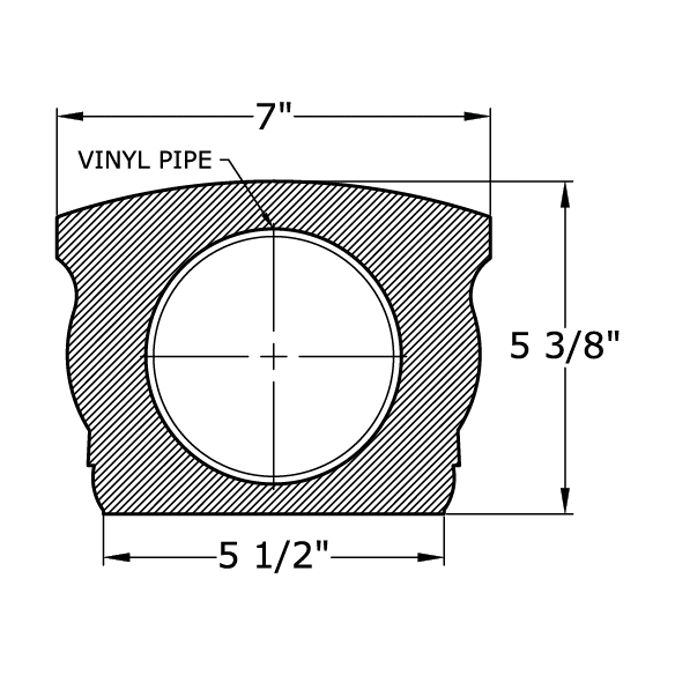

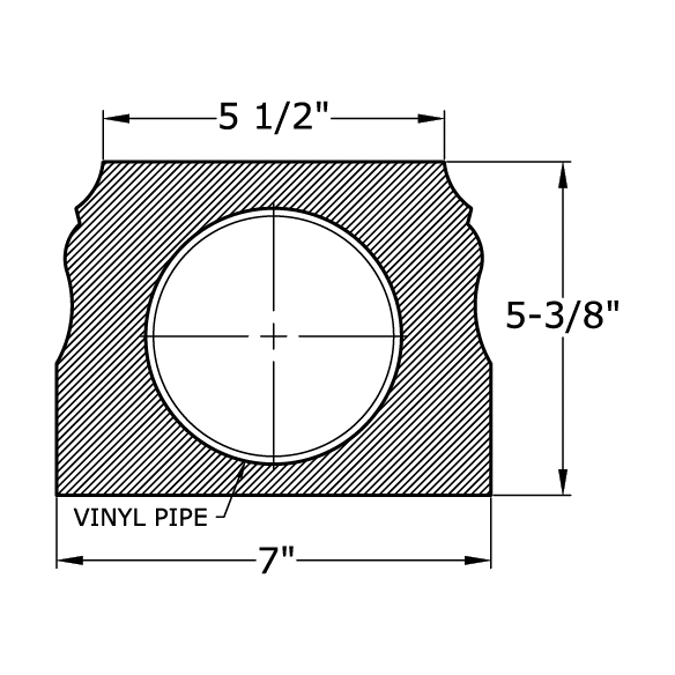

The first dimension is the width of the rails and the 2nd dimension is the height of the railing system, with the posts being taller and available as paneled rather than plain. Each system has roughly a 4" support block underneath the bottom rail, which can be cut shorter to achieve shorter system heights.

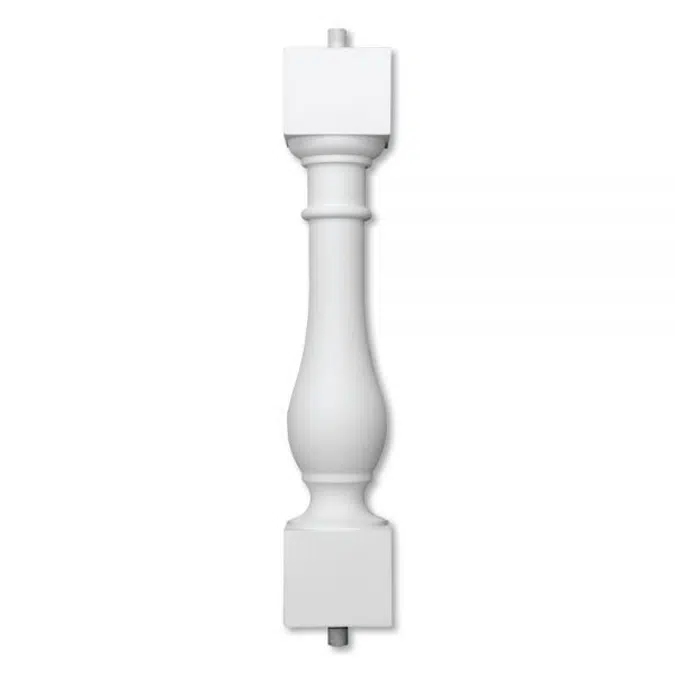

Royal Corinthian manufactures 3 structural balustrade systems made from composite materials that will last for generations. Our balustrades, which are comprised of balusters or spindles, top/bottom rails, newel posts and caps, decorative finials, and installation hardware, are available in RoyalCast™ composite fiberglass, RoyalStone™ polymer stone, and RoyalThane high density polyurethane. Each of our systems has been independently tested by engineering firms and exceeds commercial and residential building code requirements for a structural balustrade. All of our balustrade systems are lightweight systems when compared to natural stone but some are significantly lighter than others. We are the only manufacturer that offers all 3 materials in the same styles so the same project can use our RoyalStone balustrades on the front porch and our lightweight polyurethane system on a rooftop that has weight restrictions.

规格

	RoyalCast™ Fiberglass	RoyalStone™ Synthetic Stone	RoyalThane™ polyurethane
Best Application	Paintable, Rubust, Structural	Prefinished, Robust, Structural	Paintable, Lightweight, Structural
Factory Finish (Standard)	Paint-Grade Gray	6 Colors, 3 Textures	Paint-Grade Primed White
Factory Finish (Options)	Paint-Grade Only	Unlimited Custom Colors	Paint-Grade Only
Price Comparison	$	$$	$
On-Site Prep Work	Sand, Predrill, Prime, And Paint	Predrill	Predrill And Paint
Styles	All	All	All
System Widths	Up To 10"	Up To 10"	Up To 12"
System Heights	Up To 51"	Up To 51"	Up To 51"
Longest Rail Span	Up To 20'	Up To 20'	Up To 12'
Weight (Per Lineal Foot)	*20 To 100 Lbs	*20 To 100 Lbs	5 To 40 Lbs
Warranty	Limited Lifetime	Limited Lifetime	Limited Lifetime
Advantages	Structural And Versatile	Prefinished And Structural	Lightweight And Structural
Structural	Yes	Yes	Yes
Customizable	Yes	Yes	Yes
Fiberglass Content	1-3%	None, Unless Requested	None
Filler	Calcium Carbonate/ATH/Prolite	Calcium Carbonate/ATH/Prolite	None
Fire Rating	Available: Class A	Available: Class A	Available: Class A
LEED Points	Available	Available	Available

技术规格

唯一参考balustrades-0435_B7022-3-railing-system
产品系列Balustrade
产品组0435-B7022-3 Railing System
类型对象（单个对象）
发布日期2022-11-29
版本号1

链接

产品网址https://royalcorinthian.com/balustrade-systems/
安装说明https://royalcorinthian.com/installation-instructions/
指导视频https://youtu.be/477c3BzJGKg
技术说明https://royalcorinthian.com/technical-information/

相关

设计国家/地区美国
制造国家/地区美国

分类

BIMobject 类别建筑 - 栏杆
IFC 分类栏杆
Uniclass 2015 代码Ss_25_15_60_05
Uniclass 2015 说明Balustrade and guarding systems
OmniClass 编号23-17 25 11 11 17
OmniClass 标题Railing
