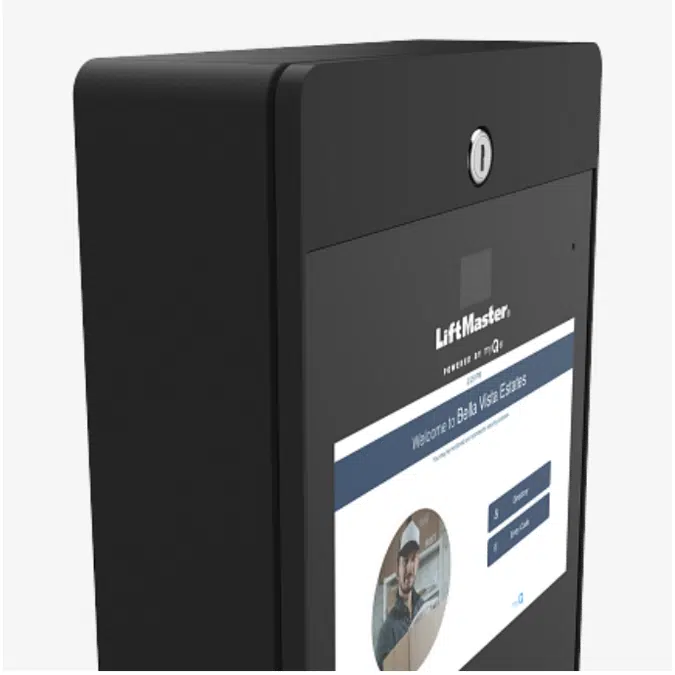

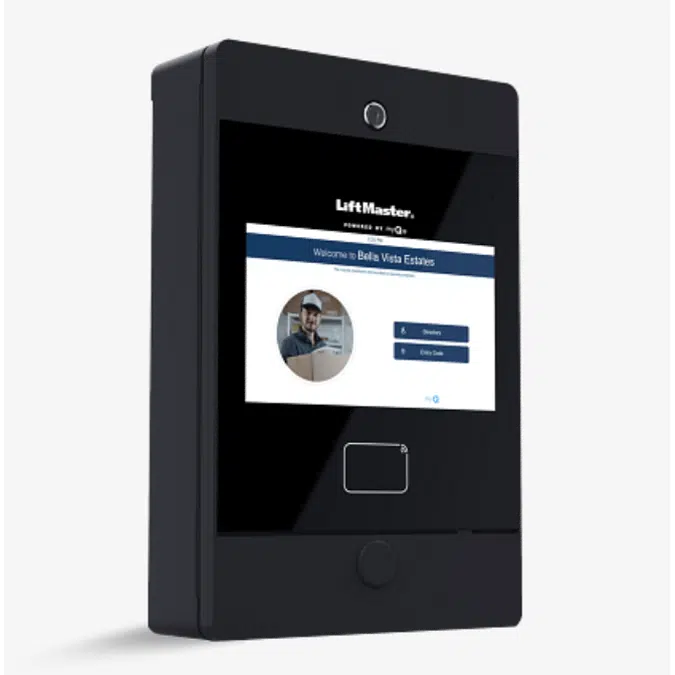

CAPXLV2 LiftMaster Smart Video Intercom - L

Modern looking 10" Smart Video Intercom Designed for high-rise buildings and gated communities.

For 50 to 50,000 units multi-family buildings and garden style communities.
Perfect for any entrance and beyond with 4 Wiegand Input, 4 OSDP Readers, and 8 Relay Output to control doors, gates, or any other relay-controlled electrical system.

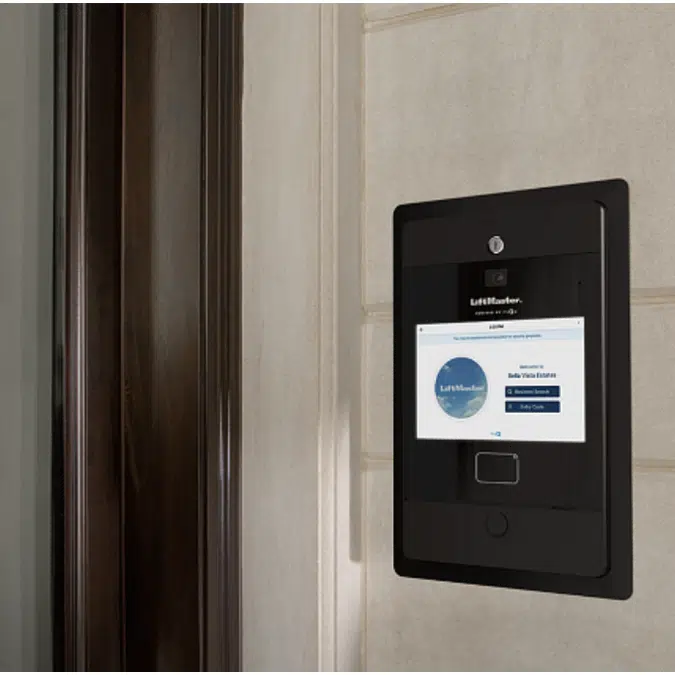

HD touchscreen display fits in a surface, flush or pedestal mount.
Wi-Fi® or ethernet for easier installation and connection to Cloud. 3rd party cellular modem can be used as well.
Wireless link to LiftMaster® gate operators to eliminate the need for digging trenches at the gate.

规格

Outdoor Rating: IP54 and IK07
Smartphone Control: Requires myQ Community App subscription
Local User Capacity: 50000
Connectivity: Ethernet and Wi-Fi®
Display Type:10” 720P high definition, fade-resistant touchscreen display with picture-in-picture
Operating Temperature: -20°F to 130°F (-29°C to 54°C)
Power Supply: 24VDC, 3A, 72W or POE 36-55VDC, 60W, 802.3bt Type 3 four pair compatible.
Video:1080p camera resolution, 25FPS; Phone.com VOIP subscription required
Field of View: 135 degrees
Warranty: 2 Years (Intercom/Operator)
Warranty: 2 Years Operator Warranty
