Self-levelling paved terrace riser pedestal (adjustable 65-95 mm)
Self-levelling paved terrace riser pedestal (adjustable 65-95 mm)
Self-levelling paved terrace riser pedestal (adjustable 65-95 mm)
    JOUPLAST

    Self-levelling paved terrace riser pedestal (adjustable 65-95 mm)

    This riser pedestal is adjustable for heights of between 65 to 95 mm,

    and designed for paved terraces intended for pedestrian use.

    Self-levelling riser pedestals can be used on uneven or irregular ground

    to compensate for - or create - a gradient of up to 5%, regardless of

    ground characteristics.

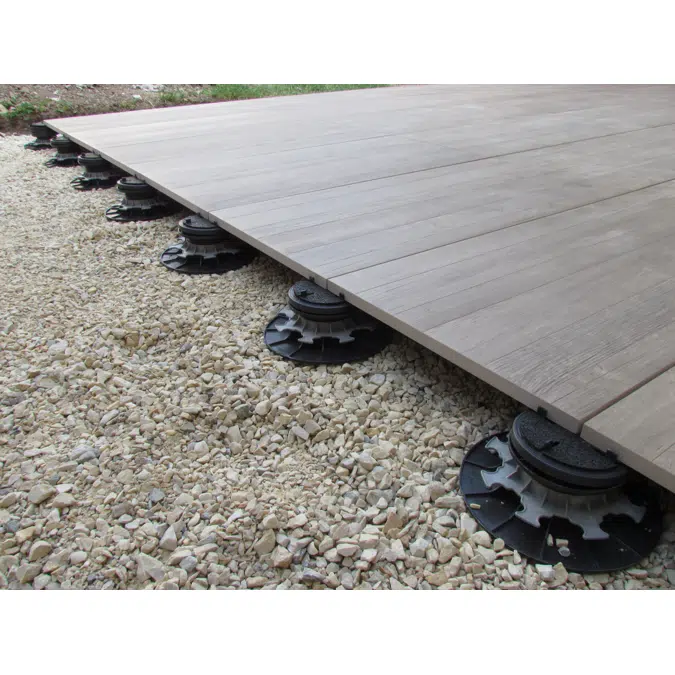

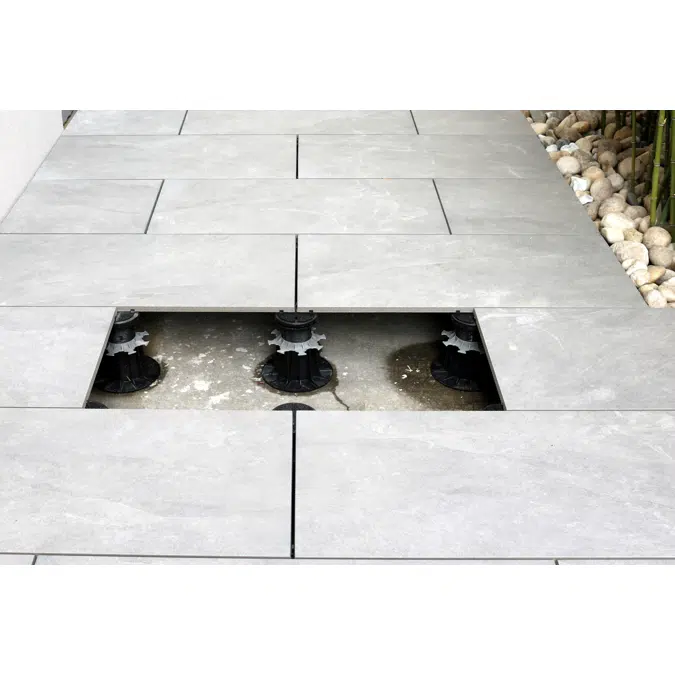

    Located beneath tile corners at each intersection, it allows air to

    circulate freely, prevents rising damp and leaves space for cable and

    pipe runs.

    UV and frost resistant.

    The manual screw adjuster enables precise height adjustment.

    规格
    • Colour : Black with grey adjuster

      Material : Recycled polypropylene

      Spacer thickness : 3 mm

      Flange diameter : 208 mm

      Riser pedestal head diameter : 120 mm

      Weight : 0,298 kg

      No. of items per Box / Bag (number of items / box or bag) : 60

      No. of Boxes/Bags per Pallet (number of boxes or bags per pallet) : 12

      No. per pallet (number per pallet) : 720

      Multiple orders : 60

      Reference : IH065095DSN0000

      Quick and easy to install
      Precise height adjustment using the rotating nut: no additional tools required.
      3 mm divisible spacers (quantity 4) to make the installation easier.
      Conforms to French regulation DTU 43.1.
      Resistance : UV and gel
      Strong resistance to crushing (higher than 1T)

    技术规格
    • 唯一参考Self-levelling_paved_terrace_riser_pedestal_65-95mm
    • 类型对象(单个对象)
    • 发布日期2023-07-03
    • 版本号1
    相关
    • 主材料Recycled Polyethylene
    • 设计国家/地区法国
    • 制造国家/地区法国
    分类
    • BIMobject 类别地板 - 地板系统
    • Uniclass 2015 代码Ss_30_42_32_30
    • Uniclass 2015 说明External floor tiling systems
    • OmniClass 编号23-15 17 11
    • OmniClass 标题Flooring Specialties and Accessories

    发售地区

    欧洲
    德国
    比利时
    法国
    瑞士
    英国
    西班牙
