Conca New consolle basin 60 1TH OF GR

Conca New consolle basin 60 1TH OF GR

Conca New consolle basin 60 1TH OF GR

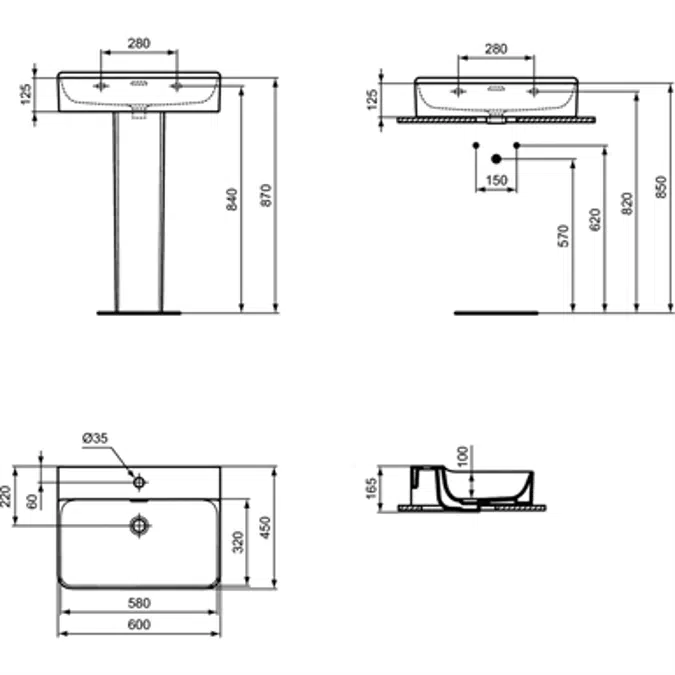

Conca Rectangular washbasin for suspended or countertop installation, 600x450mm with overflow,1 tap hole. Fixedup.White Finish

规格

Rectangular 600 mm washbasin for suspended or countertop installation. Available with or without overflow. For the version without an overflow hole, we recommend the combination with the Ideal Flow N8326AA system and the free-outlet drain with ceramic cover E211401, both to be purchased separately. Glazed finish.

技术规格

唯一参考T3818
产品系列CONCA
产品组Wash-Basin
类型对象（单个对象）
发布日期2019-11-25
版本号1
高度 (mm)460
宽度 (mm)600
深度 (mm)160.7

链接

产品网址https://www.ideal-standard.co.uk/products.html
安装说明https://www.ideal-standard.co.uk/products.html
技术说明https://www.ideal-standard.co.uk/products.html

相关

主材料陶瓷
净重 (Kg)17

分类

BIMobject 类别卫生 - 盆
IFC 分类卫浴终端
UNSPSC 名称Sanitary ware
UNSPSC 代码301815
Uniclass 2015 代码Pr_40_20_96
Uniclass 2015 说明Wash basins, sinks and troughs
OmniClass 编号23-11 21 21 13
OmniClass 标题Catch Basins

发售地区

欧洲
俄罗斯
保加利亚
希腊
德国
意大利
捷克共和国
法国
波兰
英国
