PSF 80 Level E - Hurricate Rated Door

HD-Storm - Level E™

80 PSF Belt Drive

Engineered to be the most robust and easy to install hurricane product in the industry. Horton’s HD Storm – Level E is tested to withstand design pressures up to 80 PSF which is equivalent to wind speeds seen in category 5 hurricanes. Equipped with a three-point lock and medium stile rails. Designed using Horton’s Super Duty Series 2001 header with factory supplied 3M VHB eliminating the mess and long cure time of caulking during installation.

规格

Compliant with:
- Florida Building Code 2020
- Miami-Dade NOA
- TAS 202-94: Air Infiltration Test
- TAS 202-94: Static Load Test
- TAS 202-94 & ASTM F842-04: Forced Entry Resistance Test

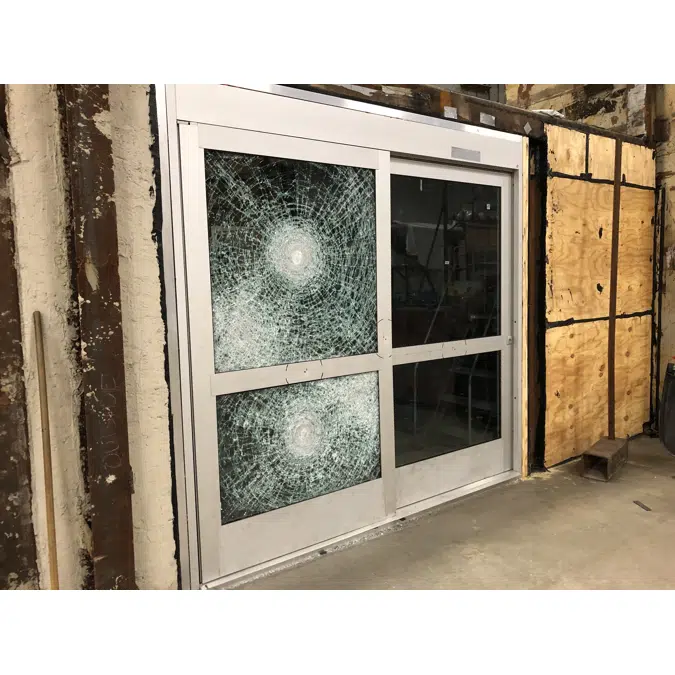

- TAS 201-04: Impact Test
- TAS 203-94: Cyclic Load Test
- ANSI A156.10 - 2011: For Power Operated Pedestrian Doors; Sliding Doors section.
Impact Rated Level E PSF 80 - Single Slide
- Series 2001 – 6” x 8” Header
- Unit Widths from 7’ 0” – 9’ 0”
- Unit Height Max – 8’ 6”
- Glazing – 5/8”
- Full Breakout
- Available in Non-impact, Small Missile Level C and Large Impact Level D & E
- Custom paint or anodize finish
- Optional Fail Safe or Fail Secure Autolock
- Optional Panic Device
- Optional 10” Bottom Rails
Impact Rated Level E PSF 80 - Bi-Parting Slide
- Series 2001 – 6” x 8” Header
- Unit Widths from 9’ 0” – 14’ 6”
- Unit Height Max – 8’ 6”
- Glazing – 5/8”
- Full Breakout
- Available in Non-impact, Small Missile Level C and Large Impact Level D & E
- Custom paint or anodize finish
- Optional Fail Safe or Fail Secure Autolock
- Optional Panic Device
- Optional 10” Bottom Rails
