HB678 170mm Flush D Pull
HB678 170mm Flush D Pull
HB678 170mm Flush D Pull
HB678 170mm Flush D Pull

    HB678 170mm Flush D Pull

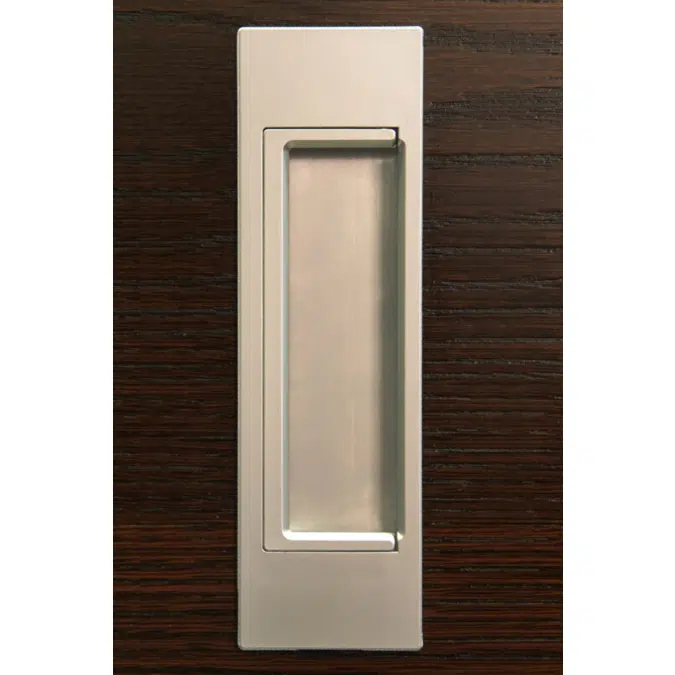

    As an update on the popular HB675 Bi-fold Flush Pull, the HB678 has been developed with flexibility in mind using an integrated D Handle within the flush pull itself.

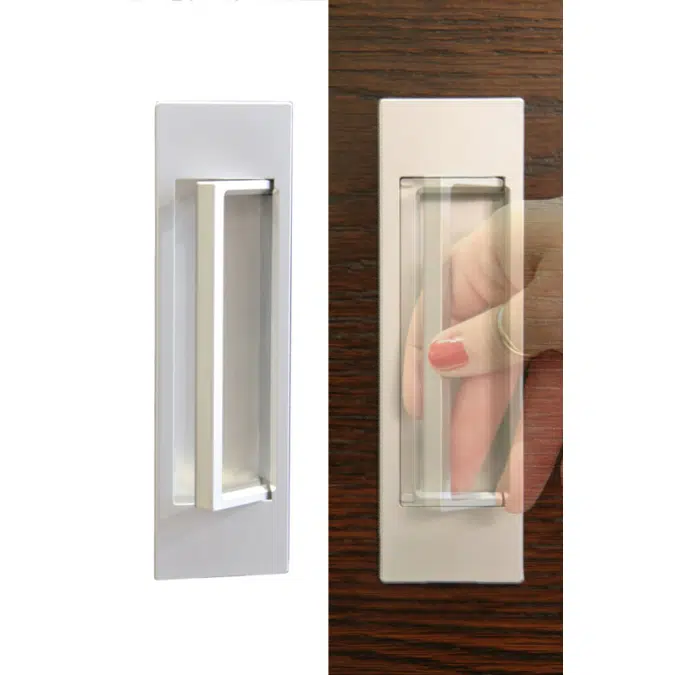

    The HB678 does double duty as both flush pull and pull handle.

    Useful where flush mounting is required, and the additional grip of a pull handle is desirable. Useful where flush mounting is required, but the additional grip of a pull handle is desirable. These are suitable for sliding doors, pivot, or bi-fold doors and cabinetry. Unlike our other options suitable for bi-fold, hinge, or pivot doors, the HB678 is a non-handed pull.

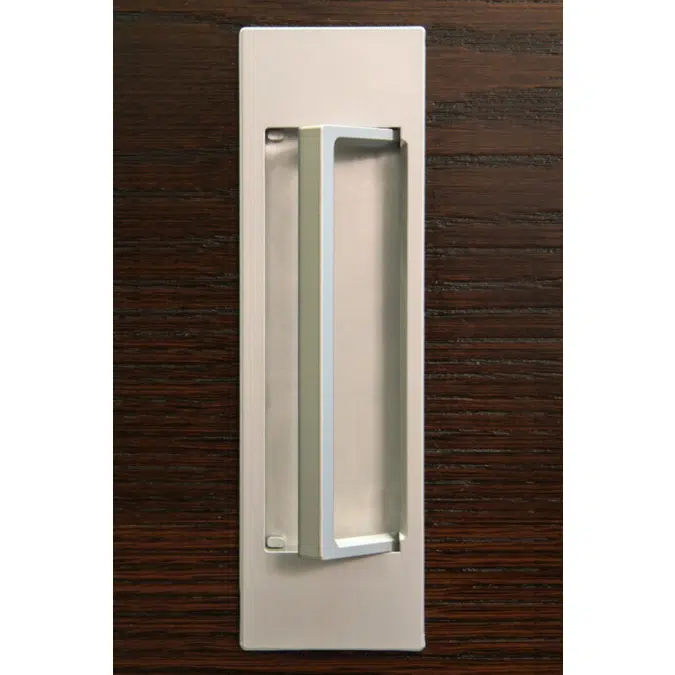

    Ball bearings in the casing hold the D Handle in place when closed. For the longer 250mm long version, please see the HB679.

    All flush pulls have invisible fixing for a pared back contemporary look. Sold individually.

    Material: Diecast zinc

    Flush pulls : 170mm x 50mm x 19mm

    Suitable for timber or aluminum doors. HB604 timber fixing kit not required for aluminum doors.

    规格
    • For finish options please see our current Finishes Sheet. FLUSH D PULLS ARE NOT AVAILABLE IN POWDERCOAT FINISHES. Please check with your local Halliday + Baillie representative as not all finishes are available in all regions.

      Flush pulls are designed to be mounted with the body within the thickness of the door, and the face plate on the door surface – total projection is 2mm. Fully recessed mounting is possible on timber doors with the appropriate door thickness. Using glue, epoxy or silicone products etc to secure flush pulls to the door is not required or recommended for installation, and may void warrantee.


      Available Finishes
      Brushed Nickel, Brushed Satin Chrome, Oil Rubbed Bronze, Matt Black Chrome, Polished Brass, Polished Chrome, Polished Nickel, Satin Chrome
    技术规格
    • 唯一参考hb678-170mm-flush-d-pull
    • 产品系列Sliding Door Hardware
    • 产品组Flush Pulls
    • 类型对象(单个对象)
    • 发布日期2023-04-26
    • 版本号1
