HB1470 310mm Flush Pull

Designed to compliment the existing range of Halliday and Baillie Flush Pulls, the new larger HB1470 responds to the increasing size of interior doors.

For hinge or pivot doors the companion HB1475 Bi-fold Flush Pull keeps a seamless look across a project.

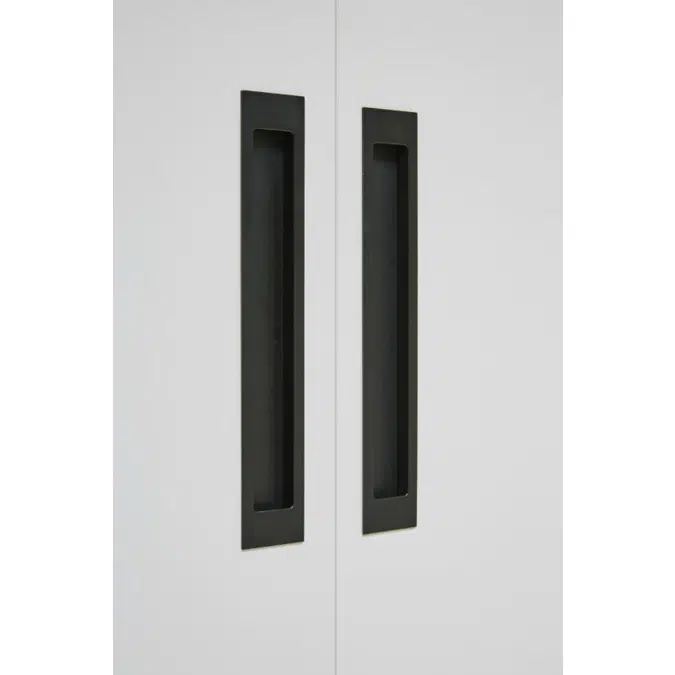

(Shown with an HB680 End Pull – Flush Pulls sold separately)

Minimum Door Thickness Required: 33mm if used back to back with no end pull, 42mm if used back to back with an HB680 End Pull as pictured.

Material: Solid brass

Flush pulls : 310mm x 50mm x 15mm

Suitable for timber or larger aluminum doors. HB1410 timber fixing kit not required on aluminum doors.

规格

For finish options please see our current finishes sheet. Please check with your local Halliday + Baillie representative as not all finishes are available in all regions.
Flush pulls are designed to be mounted with the body within the thickness of the door, and the face plate on the door surface – total projection is 2mm. Fully recessed mounting is possible on timber doors with the appropriate door thickness. Using glue, epoxy or silicone products etc to secure flush pulls to the door is not required or recommended for installation, and may void warrantee.

Available Finishes
Brushed Nickel, Oil Rubbed Bronze, Electro Black Ace, Electro Dark Bronze, Electro Medium Bronze, Electro Flat White, Matt Black Chrome, Polished Brass, Polished Chrome, Polished Nickel, Satin Chrome, Appliance White

技术规格

唯一参考hb-1470-310mm-flush-pull
产品系列Sliding Door Hardware
产品组Flush Pulls
类型对象（单个对象）
发布日期2023-04-26
版本号1

链接

相关

主材料黄铜
设计国家/地区新西兰
制造国家/地区新西兰

分类

BIMobject 类别门 - Hardware
