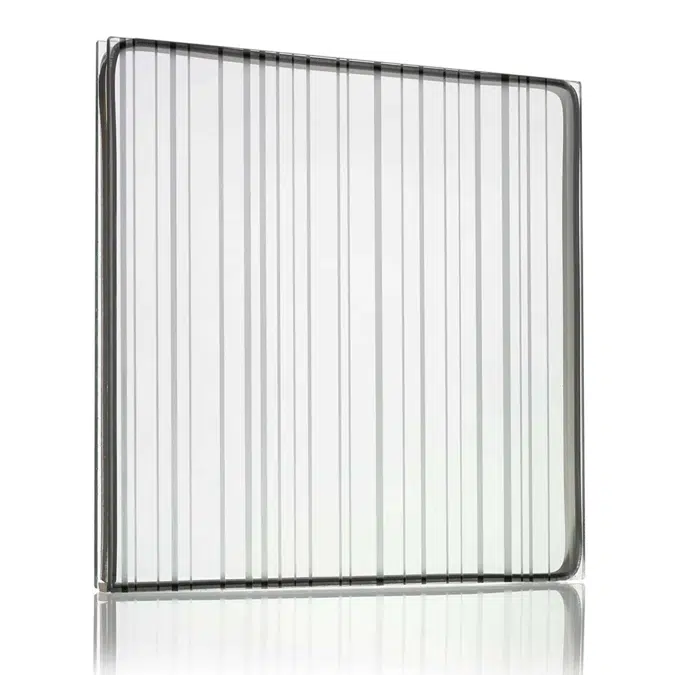

Guardian Bird1st™ Etch 11, Clear Glass, Double Glaze (North America)

Protect Birds with Guardian Bird1st™ Etch
Twice a year, migratory birds embark on a long, cross-continental flight. But their journey is often cut short. From hummingbirds to colorful warblers, bird populations are decreasing—and glass in buildings are one reason why. Birds simply can’t tell the reflection of trees and sky in façades from the real thing. Guardian Bird1st^™ Etch glass can be safer for birds year-round.

What Humans See.
Guardian Bird1st Etch glass offers the right balance of solar performance, aesthetics and bird safety—so you can start designing your bird-friendly building through one trusted source. With four etch patterns to choose from, designers can add distinctive style and visuals to the façades and curtain walls of any building elevation. Paired with select Guardian SunGuard® low-E coatings, Bird1st Etch glass offers the high performance you want and need, and may help your project earn LEED Pilot Credit 55.

What Birds See.
When compared to clear and/or tinted glass, Guardian Bird1st Etch patterns increase visual contrast, reduce reflectivity and visually signal an impending barrier to birds to help prevent collisions. And with documented Threat Factor scores¹ and/or meeting the 2”X4” rule², these products have been tested by bird conservationists to quantify collision-avoidance effectiveness.

¹ Threat Factor scores indicate the percent of times in which birds will not avoid collision.
²2” X 4” rule: two inches or less of horizontal space or four inches or less of vertical space between etch-markings.

规格

PRODUCT: Guardian Bird1st™ Etch 11 w/ SN 68 on Clear
DOUBLE GLAZE PERFORMANCE VALUES:
TRANSMITTANCEVisible Light: 68%Ultraviolet: 30%Solar Energy: 33%Light to Solar Gain (LSG): 1.80 REFLECTANCEVisible Light Outside: 11%Visible Light Inside: 12%Solar Energy Outside: 33% U-VALUEWinter Nighttime - Argon(90%): 0.25Winter Nighttime - Air: 0.29Summer Daytime - Air: 0.28 HEAT GAINRelative Heat Gain (RHG): 90Solar Heat Gain Coefficient (SHGC): 0.38
COMPOSITIONIG: 6 mm/12.7 mm/6 mm
Outboard lite: Surface #1: Bird1st Etch 11, Surface #2: SunGuard SN 68 on Clear.
Inboard lite: Guardian Float ClearCalculation Standard: NFRC-2010
PRODUCT: Guardian Bird1st™ Etch 11 w/ SNX 62/27 on Clear
DOUBLE GLAZE PERFORMANCE VALUES:
TRANSMITTANCEVisible Light: 62%Ultraviolet: 6%Solar Energy: 23%Light to Solar Gain (LSG): 2.31 REFLECTANCEVisible Light Outside: 11%Visible Light Inside: 12%Solar Energy Outside: 39% U-VALUEWinter Nighttime - Argon(90%): 0.24Winter Nighttime - Air: 0.29Summer Daytime - Air: 0.27 HEAT GAINRelative Heat Gain (RHG): 65Solar Heat Gain Coefficient (SHGC): 0.27
COMPOSITIONIG:6 mm/12.7 mm/6 mm
Outboard lite: Surface #1: Bird1st Etch 11, Surface #2: SunGuard SNX 62/27 on Clear.
Inboard lite: Guardian Float Clear Calculation Standard: NFRC-2010
PRODUCT: Guardian Bird1st™ Etch 11 w/ SNX 51/23 on Clear
DOUBLE GLAZE PERFORMANCE VALUES:
TRANSMITTANCEVisible Light: 51%Ultraviolet: 11%Solar Energy: 19%Light to Solar Gain (LSG): 2.19 REFLECTANCEVisible Light Outside: 14%Visible Light Inside: 14%Solar Energy Outside: 36% U-VALUEWinter Nighttime - Argon(90%): 0.24Winter Nighttime - Air: 0.29Summer Daytime - Air: 0.27 HEAT GAINRelative Heat Gain (RHG): 57Solar Heat Gain Coefficient (SHGC): 0.23
COMPOSITIONIG:6 mm/12.7 mm/6 mm
Outboard lite: Surface #1: Bird1st Etch 11, Surface #2: SunGuard SNX 51/23 on Clear.
Inboard lite: Guardian Float Clear Calculation Standard: NFRC-2010

技术规格

唯一参考b1st_etch11_dg_cg_naca
产品系列Bird1st
产品组Bird1st Etch
类型对象（单个对象）
发布日期2021-02-17
版本号1

链接

产品网址https://www.guardianglass.com/us/en/products/brands/guardian-bird1st
