Wall Mounted Motorised Sink Module 6300-ES11
Wall Mounted Motorised Sink Module 6300-ES11
Wall Mounted Motorised Sink Module 6300-ES11
Wall Mounted Motorised Sink Module 6300-ES11
    Granberg

    Wall Mounted Motorised Sink Module 6300-ES11

    Summary

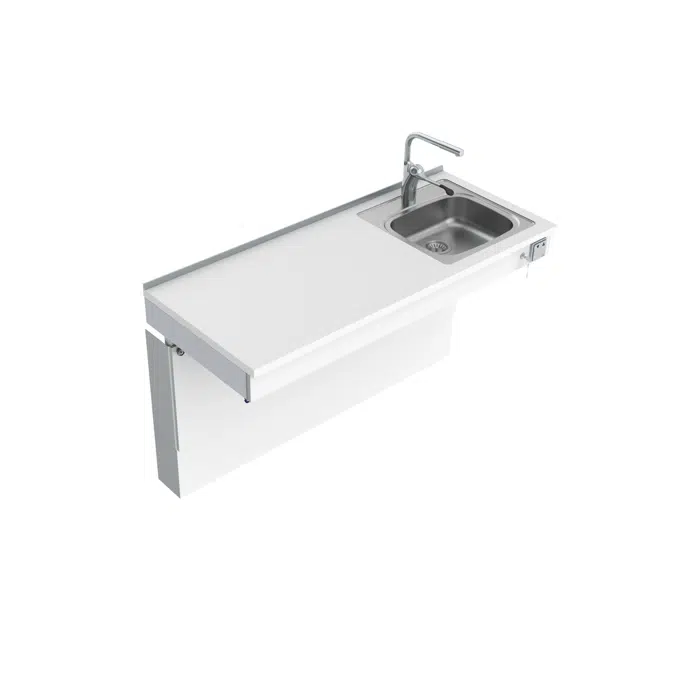

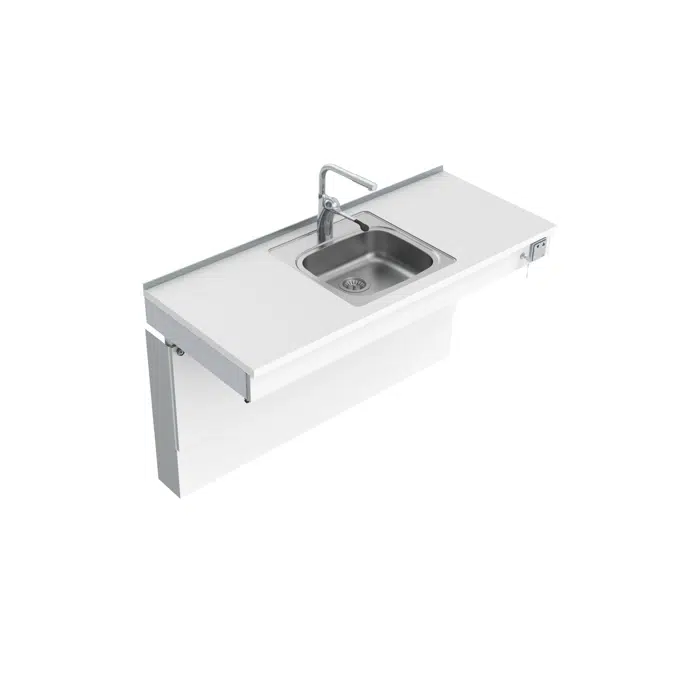

    • Left, centre or right version
    • ES11 inset sink under-glued in worktop
    • Module width 79-159 cm

    Wall mounted, motorised Sink Module 6300-ES11 contains 1 shallow sink bowl with overfill protection.

    The ADA sink module is delivered complete and available in left, centre or right version.

    The modules have a 10 mm shorter width to automatically give 5 mm gap on either side of the unit for the up and down movement. They are also 15 mm shallower in depth to make room for splash protection/tiles.

    The anti-pinch strip is placed under the front edge of the worktop. If anything touches the strip, the lift unit stops.

    Electronics and motor system "Plug and Play".

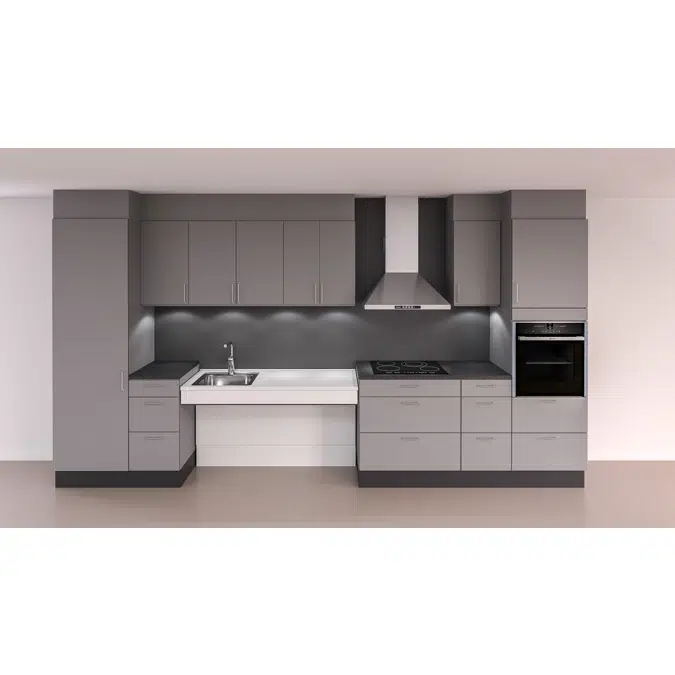

    The module can be integrated into environments from any kitchen manufacturer.

    Functions and advantages

    • Motorised wall mounted, adjustable 30 cm
    • Adjustable depth 576-606 mm incl. Front
    • Tiltable worktop plane for adjustment


    Standard equipment

    • Control button, aluminium design
    • Safety lock with key
    • Safety switches under front of worktop
    • Cover panels hiding installations on the wall under the worktop
    • Aluminium front rim
    • Worktop
    • Brushed aluminium rear edge strip
    • Mixer with long lever and flexible water hoses
    • ES11 under-glued inset sink with flexible drain hose
    规格
    • Installation
      Wall

      Front height
      103 mm

      Height adjustment
      Motorised, steplessly adjustable 300 mm (700-1000 mm excl. top board)

      Speed level
      30 mm / sec.

      Operation
      Control button, ALU-design

      Safety
      The safety strip is placed under the front edge of the worktop. If anything touches the safety strip, the lifting unit stops

      Electrical connection
      Plug for 230 V, max 5.0 A

      Lifting force
      100 kg

      IP-class
      IP 20

      Delivery modules
      Ready-mounted worktop incl. safety switch, motors

      Plumbing connections
      Connection is made with flexible hoses

      Frame depth
      576 - 606 mm from wall (Incl. front)

      Space to wall / adjoining cabinet
      5 mm

      Space to wall (for tiles)
      15 mm

      Tiling
      From 700 mm above floor (alternatively all the way down to the floor)

      Material
      Frame:
      Aluminum
      Cover panels for covering installations under the worktop:
      12 mm white melamine. Several colours can be offered upon request.
      Fronts:
      White lacquered aluminum. Several colours can be offered upon request.
      Top board:
      12 mm compact laminate or 30 mm worktop in high pressure laminate. Post-shaped front edge. Several colours can be offered upon request.

      Warranty
      2 year

      CE

    技术规格
    • 唯一参考vaggmonterad-motordriven-diskbanksmodul-6300-es11
    • 产品系列Height adjustable kitchen systems
    • 产品组Height Adjustable Modular Worktops
    • 类型对象(单个对象)
    • 发布日期2020-05-20
    • 版本号1
    相关
    • 主材料
    • 次要材料层压板
    • 设计国家/地区瑞典
    • 制造国家/地区瑞典
