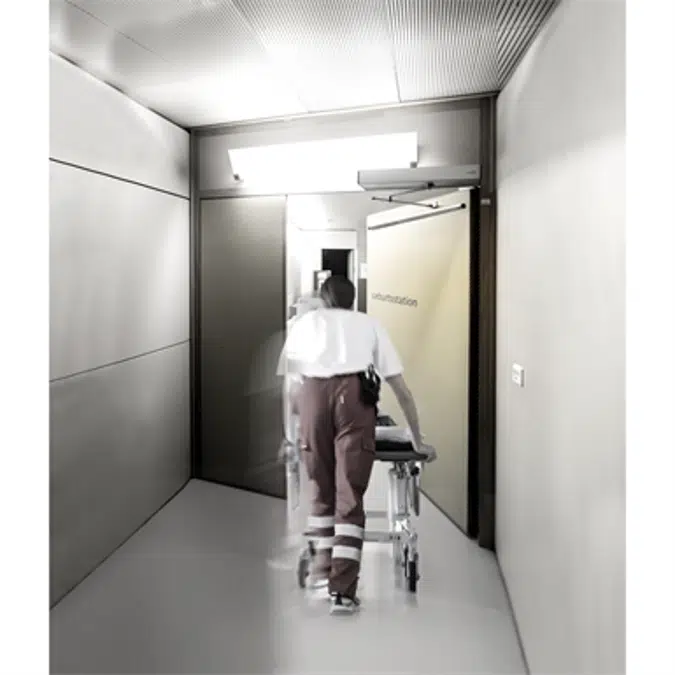

Gilgen FD 20, FD 20-F and FD 20-Invers swing door drive units
Gilgen FD 20 (standard), FD 20-F (fire-rated) and FD 20-Invers (smoke-extraction) swing door drive units
Gilgen FD 20 swing door drive units are TÜV-tested for conformity with EN 16005 and DIN 18650. These drive units are highly consistent when it comes to performance, long service life and quiet running. Suitable even for heavy external doors subject to high wind loads.
( ) FD 20 standard
( ) FD 20-F fire-rated (with DIBt approval)
( ) FD 20-Invers smoke extraction (can be opened with power off)
The drive components and control system are housed in a sleekly designed covering. Full-energy drive with integrated/configurable low-energy function (for operation without safety sensors). Simple to set up and operate via the integrated graphic display screen. Illuminated program-selector buttons (including manual release and reset) integrated into the side cover. Connection terminals for operating and safety/security elements, plus “E”- opener and motor locks.
Drive unit and casing
Dimensions: 95 mm x 120 mm x 690 mm (HxDxW)
( ) E6/EV1 aluminium casing with colourless anodised finish
( ) Casing in polished chrome steel
( ) E6/EV1 full aluminium casing with colourless anodised finish (for bi-parting doors)
( ) Full casing in polished chrome steel (for bi-parting doors)
Possible configurations
( ) Single leaf
( ) Bi-parting (two-leaf door)
( ) Emergency-exit/escape-route function
( ) Fire-prevention function
( ) Emergency-exit and fire-prevention function
( ) Smoke-extraction function (Invers)
( ) Emergency-exit and smoke-extraction function (Invers)
Installation and rod variants
( ) Lintel-mounted with sliding rods in pushing configuration
( ) Lintel-mounted with sliding rods in pulling configuration
( ) Lintel-mounted with normal sliding rods in pushing configuration (for best power transmission)
( ) Leaf-mounted with sliding rods in pushing configuration (for when height is limited)
Accessories and extra functions
( ) Integrated smoke alarm (in drive housing)
( ) Integrated mechanical closing sequence regulator (for fire-rated two-leaf doors)
( ) Connection flap (for two-leaf emergency exit doors)
Additional control elements
( ) Voltage-free outputs for acknowledgements to, for example, the building management system (via relay PCB)
( ) Gilgen radio circuit board and GFU hand-held transmitter
( ) Interlock operation with programmable special function (e.g. for wind protection).
User protection
( ) LZR flat-scan laser, security/safety sensor for automatic swing doors. For reliable monitoring of opening/closing movements, including the secondary closing edge. Fitted externally to the inside and outside of the door leaf.
Operating controls
Standard:
Illuminated program control buttons (including manual release and reset) integrated into the side cover
Optional:
( ) Permanently installed D-BEDiX program selector key. For easy selection of door function, and for displaying various items of system information
( ) Flush installation (using customer’s flush-type box)
( ) Surface installation (with surface-type plastic frame, in white)
( ) KOMBI-D-BEDiX with key cylinder for blocking the selected operating mode. Program selector key with illuminated LCD display, for selecting the door functions, adjusting the door parameters and displaying the operating data.
( ) Flush installation in twin box (depth 1 ½)
( ) Surface installation (with surface-type plastic frame, 2X, in white)
( ) Manual activation and “Reset” buttons (double rocker switch), red
( ) With Feller Ediziodue flush-type plastic frame, red. For installation in embedded, flush-type box
( ) With Feller Ediziodue surface-type plastic frame, white. For surface installation
Control/actuation elements
( ) Radar unit fitted to inside, movement sensor for reliable opening
( ) Radar unit fitted to outside, movement sensor for reliable opening
( ) Contactless ATC push-button for optimum hygienic operation
( ) OPEN push-button, white, from Feller EDIZIOdue
( ) OPEN push-button, green-lit, from Feller EDIZIOdue
( ) EMERGENCY OPEN push-button, green-lit, with “emergency exit” symbol
( ) Key-operated OPEN impulse switch
