Gilgen FD 10, FD 10-F swing door drive units
Gilgen FD 10 (standard), FD10-F swing door drive units

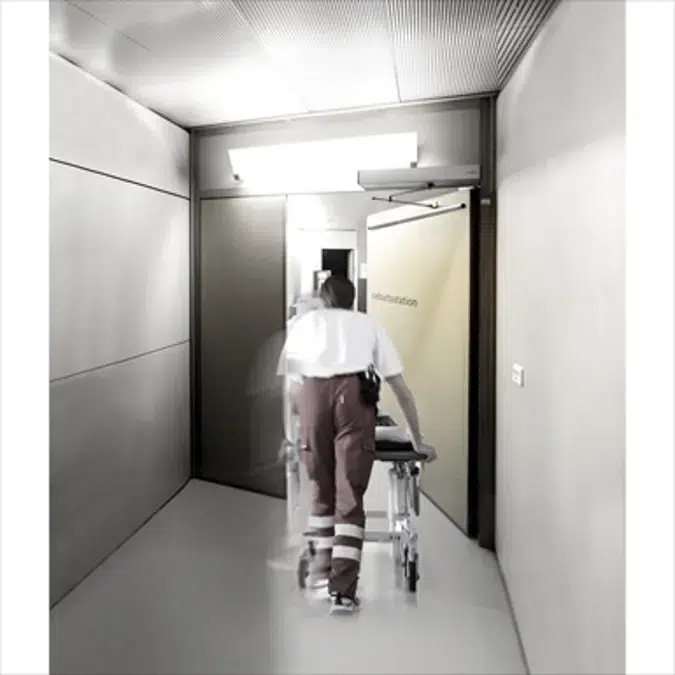

Gilgen FD 10 swing door drive units, TÜV-tested for conformity with EN 16005 and DIN 18650. These drive units are highly consistent when it comes to performance, long service life and quiet running. Suitable even for doors with a door leaf width up to 1250 mm (110mm with sliding rods) and a door leaf weight up to 150 kg.
( ) FD 10 Standard
( ) FD10-F Fire-rated (with DIBt approval)
The drive components and control system are housed in a sleekly designed covering. Full-energy drive mechanism with integrated/configurable low-energy function (for operation without safety sensors). Simple to set up and operate via the integrated graphic display screen. 3-position program selector integrated into the side cover. Connection terminals for operating and safety/security elements, plus “E”- opener and motor locks.
Drive unit and casing
Dimensions: 70 mm x 125 mm x 730 mm (HxDxW)
( ) E6/EV1 aluminium casing with colourless anodised finish
( ) Casing in polished chrome steel
( ) E6/EV1 full aluminium casing with colourless anodised finish (for bi-parting doors)
( ) Full chrome steel casing, polished (for bi-parting doors)
Possible configurations
( ) Single leaf
( ) Bi-parting (two-leaf door)
( ) Emergency-exit function
( ) Fire-prevention function
( ) Emergency-exit and fire-prevention function
Installation and rod variants
( ) Lintel-mounted with sliding rods in pushing configuration
( ) Lintel-mounted with sliding rods in pulling configuration
( ) Lintel-mounted with standard rods in pushing configuration (for best power transmission)
( ) Leaf-mounted with sliding rods in pushing configuration (for when height is limited)*
( ) Leaf-mounted with sliding rods in pulling configuration (for when height is limited)*
( ) Leaf-mounted with standard rods in pushing configuration (for when height is limited)*
*Leaf mounting only possible with FD 10
Accessories and extra functions
( ) Connection flap (for two-leaf emergency exit doors)
Additional control elements
( ) Voltage-free outputs for acknowledgements to, for example, the building management system (via relay PCB)
( ) Interlock operation*, programmable special function (e.g. Servo* or wind protection).
*not applicable for bi-parting doors
User protection
( ) LZR flat-scan laser, security/safety sensor for automatic swing doors. For reliable monitoring of opening/closing movements, including the secondary closing edge. Fitted externally to the inside and outside of the door leaf.
Control elements
Standard:
3-position program selector integrated into the side cover
Fire safety:
3-position program selector integrated into the side cover and reset button
Optional:
( ) Permanently installed D-BEDiX program selector switch
For easy selection of door function, and for displaying various items of system information
( ) Flush installation (using customer’s flush-type box)
( ) Surface installation (with surface-type plastic frame, in white)
( ) KOMBI-D-BEDiX with key for blocking the selected operating mode. Program selector key with illuminated LCD display, for selecting the door functions, for adjusting all door parameters and displaying the operating data
( ) Flush installation in twin box (depth 1 ½)
( ) Surface installation (with surface-type plastic frame, double, in white)
( ) Manual activation and “Reset” button (double rocker switch), red
( ) With Feller Ediziodue flush-type plastic frame, red. For installation in embedded, flush-type box
( ) With Feller Ediziodue surface-type plastic frame, white. For surface-type installation
Control/actuation elements
( ) Radar unit fitted to inside, movement sensor for reliable opening
( ) Radar unit fitted to outside, movement sensor for reliable opening
( ) Contactless CleanSwitch push-button for optimum hygienic operation
( ) OPEN push-button, white, from Feller EDIZIOdue
( ) OPEN push-button, green-lit, from Feller EDIZIOdue
( ) EMERGENCY OPEN push-button, green-lit, with “emergency exit” symbol
( ) Key-operated OPEN impulse switch
