    Tamponamento esterno Gasbeton® Energy (λ=0,08 W/mK) - Finiture

    Aerated autoclaved concrete blocks GASBETON ENERGY were created to meet, with a very simple solution, at the increasingly demanding buildings, offering masonry that with a single process ensure compliance with the most stringent requirements in terms of thermal performance, both winter and summer, already at starting from a thickness of only 30 or 35 cm depending on the climate zones. The goal is achieved thanks to a construction system that involves the use of aerated autoclaved cellular concrete rectified blocks, to be laid with a very thin layer of adhesive mortar (1.5 mm thick), while minimizing laying errors and thermal bridges.

    SYNTETIC DESCRIPTION:
    Cellular concrete, autoclaved cellular concrete, autoclaved aerated concrete, aerated autoclaved cellulare concrete, aerated autoclaved cellular concrete block, thermal insulation, thermal inertia, breathable, soundproofing, fire resistant, light, ecological, green building, recyclable, brick, wall, infill, casing, closure, non structural

    规格

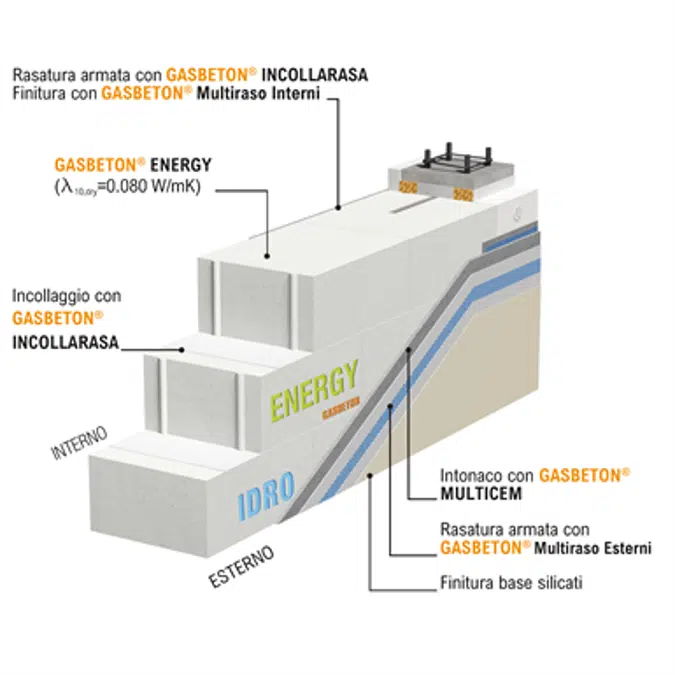

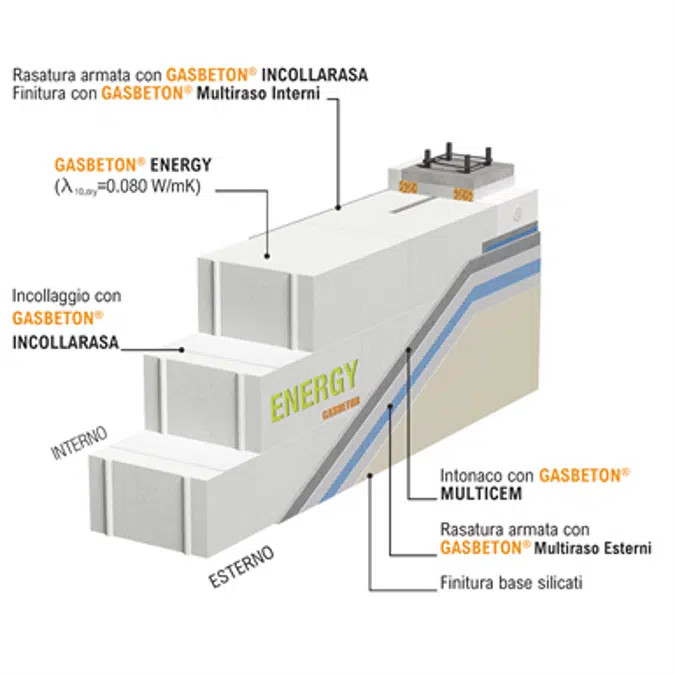

    • STRATIGRAPHY:
      GASBETON Energy system can be used as infill for buildings in which the best ratio between thermal and acoustic performance is to be obtained, thanks to a low thermal conductivity (λ = 0.08 W/mK). GASBETON Energy infill system is formed by the following stratigraphy:
      (external)
      • 2 mm silicate colored silicate / siloxane
      • 5 mm skim plaster with “Multiraso esterni” and glass fiber mesh “rete da intonaco GASBETON”
      • 15 mm “Multicem”
      • GASBETON blocks
      • 5 mm skim plaster with Incollarasa and glass fiber mesh “rete da intonaco GASBETON”
      • 2 mm “Multiraso interni”
      (indoor)
      The masonry is also composed by a vertical stratigraphy, at the base there is mortar “GASBETON Multimalt”, above them there are the blocks and at the top there are 15 mm of foam “Adesivo GASBETON”. Inside the Revit file there is a second row of walls (on the right) which differs from the first due to the presence of the first hydrophobic wall row (IDRO block) with relative mortar “Malta ancorante IDRO” instead of the classic mortar “GASBETON Multimalt”. It is preferible to use these walls for infills placed on the screeds or on the foundations, since these walls inhibit the transmission of any rising damp from them.

      CELLULAR CONCRETE BLOCK PROPERTIES:
      • Depth: 5/10/24/30/35/37,5/40/45/50 cm
      • Height: 25 cm
      • Length: 60 cm
      • Dry mass density block: 350 kg/m3
      • Dry thermal conductivity λ10dry: 0.080 W/mK
      • vapor diffusion coefficient µ = 5 (dry field) ÷ 10 (wet field)
      • Stationary thermal transmittance U: 1,258/0,704/0,315/0,255/0,220/0,206/0,193/0,173/0,156 W/mqK
      • Noise reduction Rw: 33/37/45/47/49/49/50/51/52 dB
      • Fire resistance El 240 (except 5/10 cm)
      • reaction to fire Euroclass A1

    技术规格
    • 唯一参考Gasbeton-Energy-Composite
    • 产品系列Autoclaved Aerated Concrete (AAC) masonry
    • 产品组External Walls
    • 类型对象(单个对象)
    • 发布日期2019-03-27
    • 版本号1
    相关
    • 主材料Autoclaved aerated concrete
    • 次要材料灰泥
    • 设计国家/地区意大利
    • 制造国家/地区意大利
    分类
    • BIMobject 类别墙壁 - 外墙
    • IFC 分类墙壁
    • UNSPSC 名称Blocks
    • UNSPSC 代码301315
    • Uniclass 2015 代码Pr_20_93_52_05
    • Uniclass 2015 说明Autoclaved aerated concrete (AAC) blocks
    • CSI MasterFormat 2014 代码04 22 26
    • CSI MasterFormat 2014 标题Autoclaved Aerated Concrete Unit Masonry
    • OmniClass 编号23-15 15 21
    • OmniClass 标题Wall Blocks
