    Tamponamento esterno Gasbeton® Active (λ=0,07 W/mK) - Basic

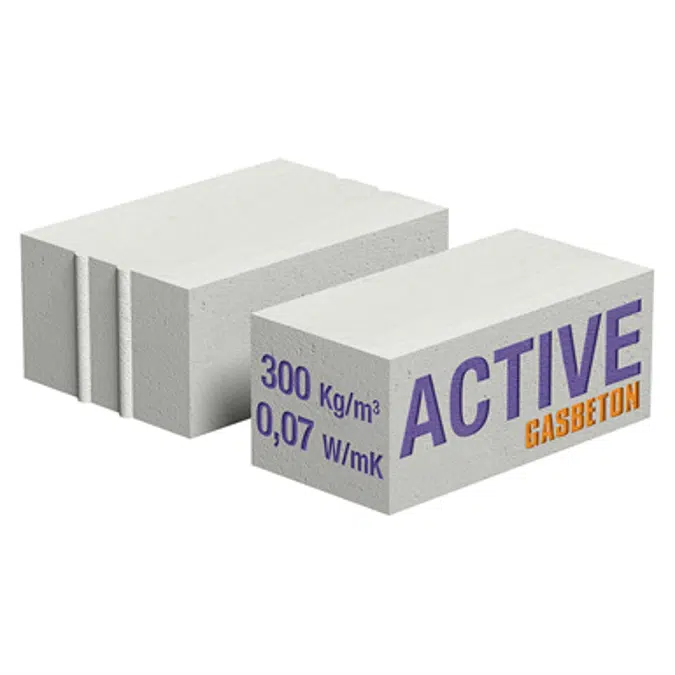

    Extremely light and strong blocks of aerated autoclaved cellular concrete GASBETON® ACTIVE offers excellent performances both in winter and in summer to create exterior walls of nZEB and passive buildings without the addition of thermal coats.
    This is possible due to the reduction of the density of aerated autoclaved cellular concrete blocks up to 300 Kg/m3 which allows to obtain an excellent value of dry thermal conductivity λ10dry: 0.070 W / mK, maintaining unchanged all the valuable typical characteristics of autoclaved aerated cellular concrete, true eco-sustainable, breathable material, resistant to fire, earthquake and noise.

    SYNTETIC DESCRIPTION:
    Cellular concrete, autoclaved cellular concrete, autoclaved aerated concrete, aerated autoclaved cellulare concrete, thermal insulation, thermal inertia, breathable, soundproofing, fire resistant, light, ecological, green building, recyclable, brick, wall, infill, casing, closure, non structural

    规格
    • SPECIFICATION:
      Non structural infill wall made with autoclaved aerated cellular concrete (AAC) blocks GASBETON ACTIVE, produced by Ekoru s.r.l., with CE marking, in CAT I, compliant with the standard UNI EN 771-4, nominal density 300 kg/m3, dry thermal conductivity λ_10,dry 0,070 W/mK, various depths, lenght 600 mm, height 250 mm, with or without vertical joints; the product has to be connected horizontally with a specific adhesive mortar INCOLLARASA, with guaranteed performance on a thin layer T type, with compressive strenght M5 or M10 (spread with a suitable CAZZUOLA DENTATA GASBETON - toothet trowel GASBETON). These walls should be plastered with GASBETON MULTICEM or smoothed internally with INCOLLARASA, by positioning of a plastic holder mesh and finish with GASBETON MULTIRASO indoor or outdoor.

      CELLULAR CONCRETE BLOCK PROPERTIES:
      • Depth: 5/10/24/30/35/37.5/40/45/50 cm
      • Height: 25 cm
      • Length: 60 cm
      • Dry mass density block: 300 kg/m3
      • Dry thermal conductivity λ10dry: 0.070 W/mK
      • vapor diffusion coefficient µ = 5 (dry field) ÷ 10 (wet field)
      • Stationary thermal transmittance U: 1,131/0,626/0,280/0,220/0,190/0,181/0,170/0,150/0,140 W/mqK
      • Noise reduction Rw: 32/36/43/46/47/48/49/50/51 dB
      • Fire resistance El 240 (except 5/10 cm)
      • reaction to fire Euroclass A1

    技术规格
    • 唯一参考Gasbeton-Active-Basic
    • 产品系列Autoclaved Aerated Concrete (AAC) masonry
    • 产品组External Walls
    • 类型对象(单个对象)
    • 发布日期2019-03-27
    • 版本号1
    相关
    • 主材料Autoclaved aerated concrete
    • 设计国家/地区意大利
    • 制造国家/地区意大利
    分类
    • BIMobject 类别墙壁 - 外墙
    • IFC 分类墙壁
    • UNSPSC 名称Blocks
    • UNSPSC 代码301315
    • Uniclass 2015 代码Pr_20_93_52_05
    • Uniclass 2015 说明Autoclaved aerated concrete (AAC) blocks
    • CSI MasterFormat 2014 代码04 22 26
    • CSI MasterFormat 2014 标题Autoclaved Aerated Concrete Unit Masonry
    • OmniClass 编号23-15 15 21
    • OmniClass 标题Wall Blocks
