DOLPHIN Toilet Partitions LFF25SG
DOLPHIN Toilet Partitions LFF25SG
DOLPHIN Toilet Partitions LFF25SG

    DOLPHIN Toilet Partitions LFF25SG

    4.2 out of 5 stars4.2(6 reviews)
    规格

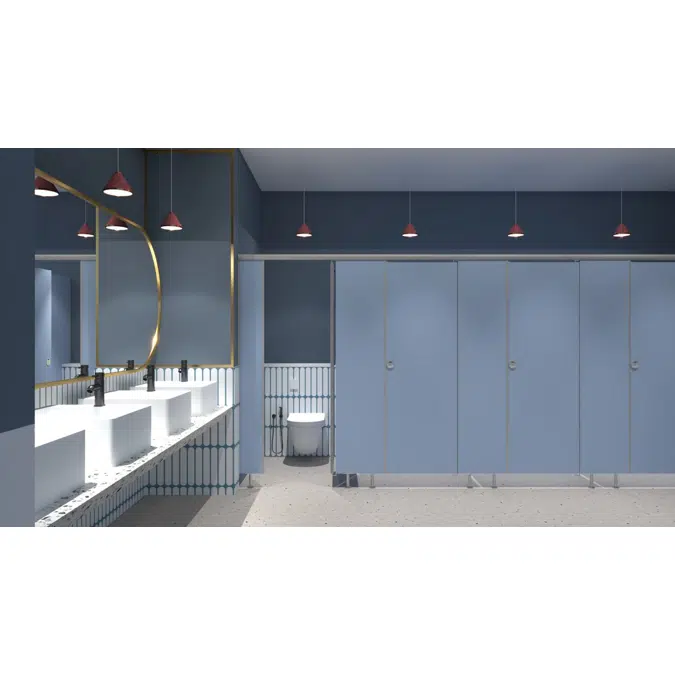

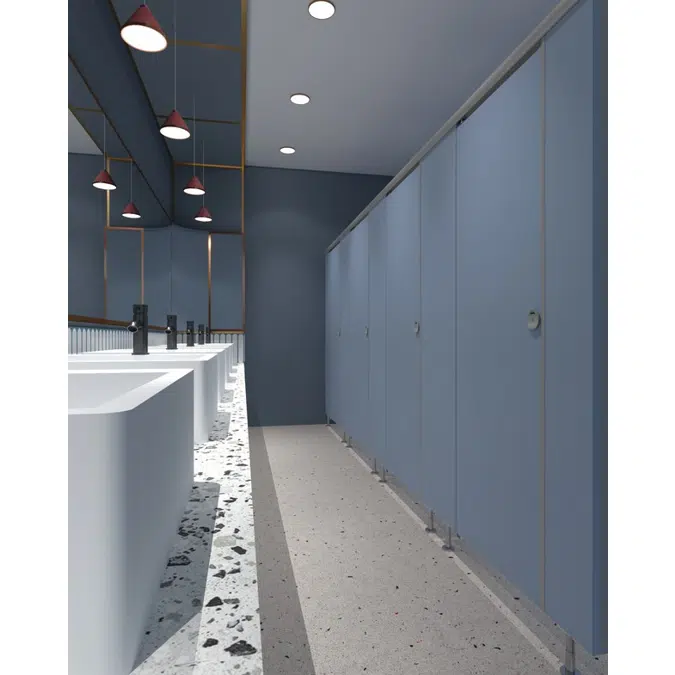

    • "Dolphin Model : LFF 25 SG (Dolphin Model LFF 25 SG) HPL (High Pressure Laminates) with a thickness of not less than 0.8 mm. to sandwich Fomeboard on the inside between the HPL sheet by Sandwich Cold Press system, with a density of not less than 450 kg/m3. which the pomegranate is particularly hard like artificial wood is not a flame retardant medium and does not swell or swell when exposed to water Edge covered with PVC grade A, thickness 2 mm. on all 4 sides with hotmelt adhesive system at 220 degrees Celsius. The total thickness of the sheet is not less than 25 mm. Gravity Hinge Stainless Steel SUS 304 is a vertical axis. The top hinge attaches to the side posts. by embedding the hinge shaft into the door leaf The lower hinge is attached to the side column and embedded in the hinge axis at the bottom of the door. Stainless Steel SUS 304 latch, round shape, interlocking with the front latch showing the red green symbol in a sphere. With a bolt receiver that can be bolted from the front in case of emergency and Stainless Steel SUS 304 stand."
    技术规格
    • 唯一参考DOLPHIN_Toilet_Partitions_LFF25SG
    • 产品系列Toilet
    • 产品组Partitions
    • 类型集合(多个对象)
    • 发布日期2022-11-09
    • 版本号1
    • 高度 (mm)1980
    • 宽度 (mm)1000
    • 深度 (mm)1430
    相关
    • 主材料层压板
    • 设计国家/地区泰国
    • 制造国家/地区泰国
    分类
    • BIMobject 类别卫生 - 空间分隔器或屏风
    • OmniClass 编号23-15 11 15
    • OmniClass 标题Sanitary Partitions and Cubicles
