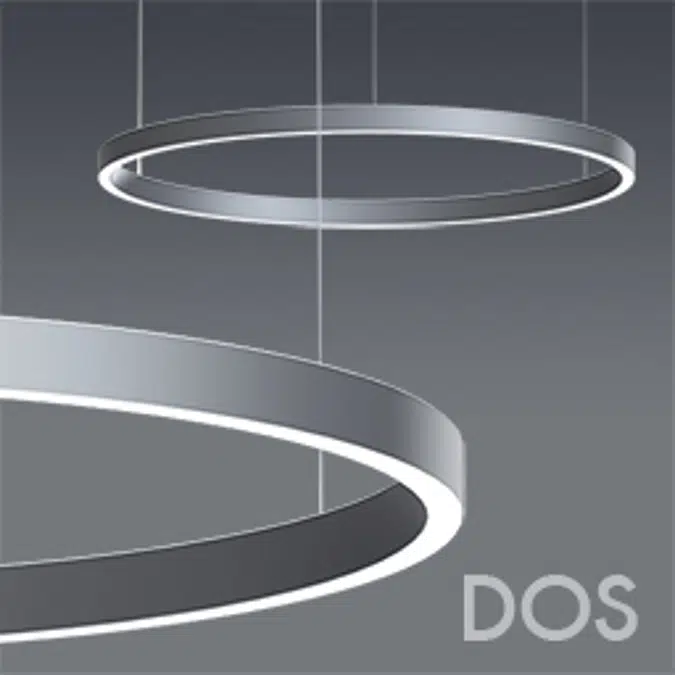

DOS CIRCULAR DIRECT/INDIRECT WHITE LED WITH OPAL ACRYLIC LENS
(6 reviews)CANOPY
CONSTRUCTION
LED DRIVERS
LEDs
- Mounts to all standard JBoxes.
- Available in separate or central mount (see drawings, right).
- Specify SR (separate) or CR (central) mount with remote driver installation. (See p. 2 for more info.)
CONSTRUCTION
- Extruded aluminum outer housing with direct/indirect white frosted acrylic diffusers.
Suspended with field-adjustable aircraft cable, with push-button glider. 8 ft. gray or white 22 AWG power cord. Each fixture requires its own power feed. Specify XP for additional length. (Max. 25 ft.)
LED DRIVERS
- Electronic drivers and dimmer interface housed in canopy or remote gear box (see above), for easy access.
- Separate switching and dimming standard for UDC4 and UDC5 only. For UDC2 separate switching, specify SS.
- cUL listed for dry locations.
LEDs
- Nichia Corp. NFSL757 linear board chips.
- White color temperatures include W30 (3000K) and W35 (3500K); matching the traditional CCT of existing incandescent, fluorescent, and metal halide lamps.
- CRI: 92
- R9 = 72
Specify LED color:
W30–White (3000º K)
W35–White (3500º K)
