QUILTED CURTAIN S.T.O.P. - Absorptive/Noise Barrier Quilted Curtains

QUILTED CURTAIN S.T.O.P. Absorptive/Noise Barrier Quilted Curtains

For Unusual Conditions
Cost Effective
Water & Chemical Resistant
Exterior Applications

MATERIAL:
Foam or fiberglass core, faced with quilted aluminized fabric.

PATTERN:
Quilted pattern.

FEATURES:
Effective and durable absorber with mass loaded vinyl barrier option.

APPLICATIONS:
Effective solution to a wide range of unusual problems. Machinery and work area enclosures.

THICKNESS:
1", 2".

SIZES:
BSC-25 Curtain, (quilting on both sides) standard: 48" wide and Lengths up to 25'. BBC-13 Curtain, (quilting on one side) standard: 54" wide and lengths up to 25'. Custom sizes also available.

COLOR:

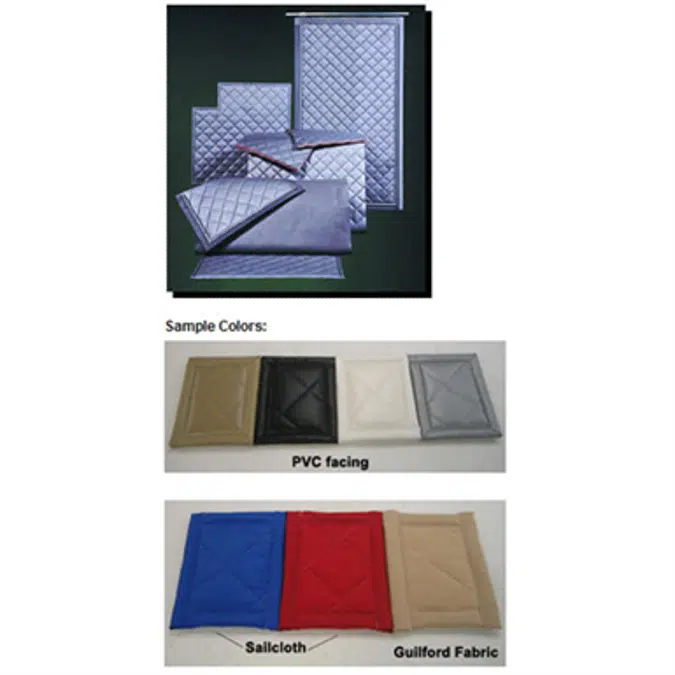

Standard PVC facing Silver. Optional PVC facing: Black, Beige, White. Sailcloth colors: See Website. Guilford Fabric colors: See Website.

FLAMMABILITY:
ASTM E 84, Class A. Flame Spread: 23; Smoke Developed: 30.

INSTALLATION:
Hook and loop fasteners, grommet hangers, curtain spanport hardware.

GROMMETS:
Standard Brass. (Stainless steel upgrade available upon request). ID: 9/16" Grommet center 1 1/4" down from top of panel.

技术规格

唯一参考nst28578
产品系列Suspended Ceilings
产品组QUILTED CURTAIN
类型对象（单个对象）
发布日期2013-08-07
版本号1

链接

产品网址http://www.acousticalsurfaces.com/curtan_stop/curt_screen.htm?d=12

分类

BIMobject 类别建筑 - 天花板
IFC 分类天花板
Uniclass 2015 代码Ss_25_25_05
Uniclass 2015 说明Acoustic panel systems
CSI MasterFormat 2014 代码09 51 00
CSI MasterFormat 2014 标题Acoustical Ceilings
OmniClass 编号23-15 19 15 11 11
OmniClass 标题Acoustical Ceiling Tile
CSI UniFormat II 代码C3030
CSI UniFormat II 标题Ceiling Finishes
