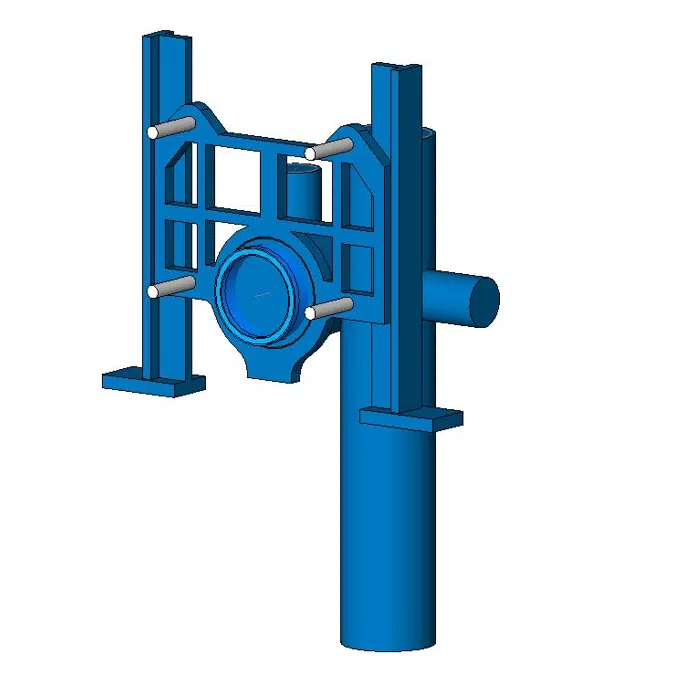

ZN1209 Narrow Wall Vertical Offset Siphon Jet No-Hub System (7-3/16 Depth front-to back)

ZN1209 Narrow Wall Vertical Offset Siphon Jet No-Hub System (7-3/16 Depth front-to back)

Zurn ZN1209 Vertical Offset Siphon Jet No-Hub Narrow Wall System (7-3/16 Depth front to back)

Adjustable, vertical, water closet carrier
300 lb. standard
Narrow wall carrier system (Under 8")
No-hub Connection

ZN1209 | ZN1209-NL4 | ZN1209-NR4

Özellikler

ENGINEERING SPECIFICATION: ZURN ZN1209-NL4 or ZN1209-NR4 Narrow wall vertical offset siphon jet water closet "rigid system" with 4" size no-hub connections and 2" vent complete with Dura-Coated cast iron main fitting, separable face plate rigidly mounted on fitting, universal floor mounted supports, corrosion resistant adjustable ABS coupling with integral test cap, fixture bolts, trim, stud protectors, rear anchor tie down, and bonded "Neo-Seal" gasket.

Teknik özellikler

Benzersiz ref.zn1209-narrow-wall-vertical-offset-siphon-jet-no-hub-system
Ürün ailesiSanitary Components
Ürün grubuCarrier Systems
TipObje (Tekil Nesne)
Yayınlanma tarihi2022-09-23
Baskı numarası1
Yükseklik (inç)24

Bağlantılar

Ürün URL’sihttps://www.zurn.com/products/drainage-interceptors/carriers-fixture-supports/water-closet-toilet-carriers/zn1209
Kurulum talimatlarıhttps://files.zurn.com/care-cleaning-install-warranty-sheets/c17.pdf
Teknik açıklamahttps://files.zurn.com/spec-sheets/zn1209-n4.pdf

İlgili

Ana malzemeCast iron
İkincil malzemeABS
Tasarım yeriBirleşik Devletler

Sınıflandırma

BIMobject kategorisiSıhhi tesisat - Borular
UNSPSC adıPlumbing fixtures
UNSPSC kodu3018
Uniclass 2015 koduPr_20_85_09_96
Uniclass 2015 açıklamasıWall-hung WC support brackets
CSI MasterFormat 2014 kodu22 42 13
CSI MasterFormat 2014 başlığıCommercial Water Closets, Urinals, and Bidets
OmniClass numarası23-31 19 19
OmniClass başlığıWater Closets
CSI UniFormat II koduD2010
CSI UniFormat II başlığıPlumbing Fixtures
