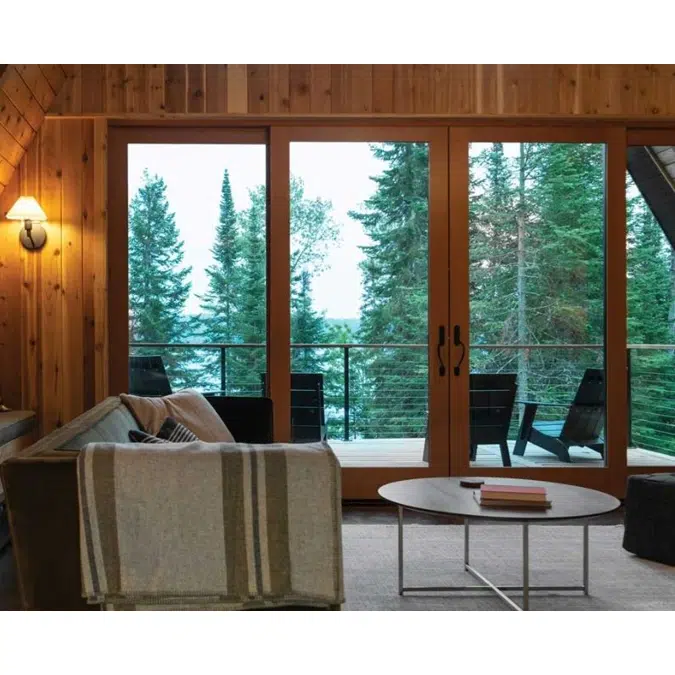

Ultimate Sliding French Door G2 4 Panel

The Ultimate Sliding French door G2 features a space-saving sliding design and offers beautiful, substantial wood surrounds with nearly effortless operation and a durable
Performance Sill for weather protection even in harsh climates.

AT A GLANCE

Extruded Aluminum Exterior | Wood Interior
Exterior Finish: 19 Color Options + Custom
Interior Finish: 6 Wood Options + Custom | 2 Paint Options + Prime | 6 Stain Options + Clear Coat
Available up to 16’ Wide and 10’ High

Özellikler

ADDITIONAL FEATURES:
- Our low maintenance clad-wood products feature an extruded aluminum exterior with a commercial-grade finish for superior resistance to fading and chalking
- Robust stainless steel rollers for premium performance and operating experience
- Multi-point locking system ensures a tight seal and security from top to bottom
- A traditional panel aesthetic available with 4 ¾" stile and top rail, and an 8 ⅛" bottom rail with optional 4 ¾" bottom rail
- Choose from Harp, Vertical pull, and Exterior Flush pull or, for a more custom look, consider Gallery hardware
- Optional top-hung screen glides smoothly
- Available with IZ3 coastal/hurricane certification
- Performance Sill provides water management and easy installation
- Ogee interior with simulated putty exterior glazing profiles. Optional Square interior with simulated putty exterior glazing profiles
- Pairs seamlessly with Ultimate Swinging French door G2

Teknik özellikler

Benzersiz ref.marvin_usfdg2_4p
Ürün ailesiSignature
Ürün grubuUltimate Doors
Tipİnşaat Malzemesi
Yayınlanma tarihi2024-02-28
Baskı numarası1

Bağlantılar

Ürün URL’sihttps://www.marvin.com/products/doors/sliding/ultimate-sliding-french-door-g2
Kurulum talimatlarıhttps://www3.marvin.com/technical-specifications-product?id=97&document=334&drawing=0
Teknik açıklamahttps://www3.marvin.com/technical-specifications-product?id=97&document=332&drawing=0

İlgili

Ana malzemeAhşap
İkincil malzemeExtruded Aluminum
Tasarım yeriBirleşik Devletler
Üretim yeriBirleşik Devletler

Sınıflandırma

BIMobject kategorisiKapılar - Kayar Kapılar
IFC sınıflandırmasıKapı
ETIM KoduEC003534
ETIM AdıExterior door (complete with frame)
Uniclass 2015 koduEF_25_30
Uniclass 2015 açıklamasıDoors and windows
CSI MasterFormat 2014 kodu08 32 00
CSI MasterFormat 2014 başlığıSliding Glass Doors
OmniClass numarası23-17 11 00
OmniClass başlığıDoors

Bölge bulunurluk durumu

Okyanusya	Kuzey Amerika	Avrupa	Asya
Avustralya	Bahamalar	Cebelitarık	İsrail
United States Minor Outlying Islands	Birleşik Devletler		Türkiye
	Caribbean Netherlands
	Cayman Adaları
	Kanada
	Meksika
