    EcoReadyBath

    Bathroom pod

    Introducing EcoReadyBath - Your Prefabricated Bathroom Solution on BIM Platform

    Are you an architect looking to streamline your design process, enhance efficiency, and deliver top-notch projects? Look no further than EcoReadyBath, your ultimate bathroom pod solution now available on the BIM platform.

    Why Choose EcoReadyBath for Architects:

    Seamless Visualization and Design: With EcoReadyBath's BIM-ready model, architects can create vivid 3D representations of their projects. This means you can visualize and communicate your designs more effectively, captivating clients and stakeholders.

    Time-Saving Precision: EcoReadyBath provides architects with a meticulously detailed BIM model, eliminating the need for manual data entry. Accessing accurate information on dimensions, materials, and specifications can save valuable time and reduce the risk of errors.

    Effortless Integration: Our BIM-compatible prefab bathrooms seamlessly integrate with various project disciplines, ensuring smooth collaboration with structural engineers, electricians, and other specialists. This fosters efficient coordination, minimizes conflicts, and enhances project synergy.

    Faster Design Processes: By leveraging EcoReadyBath's BIM capabilities, architects can expedite the design process, boosting overall productivity.

    EcoReadyBath is not just a bathroom pod; it's your gateway to a more efficient, productive, and successful architectural practice. Join us on the BIM platform and experience the future of architectural design today.

    EcoReadyBath - Elevating Architectural Excellence with BIM Integration.

    Özellikler

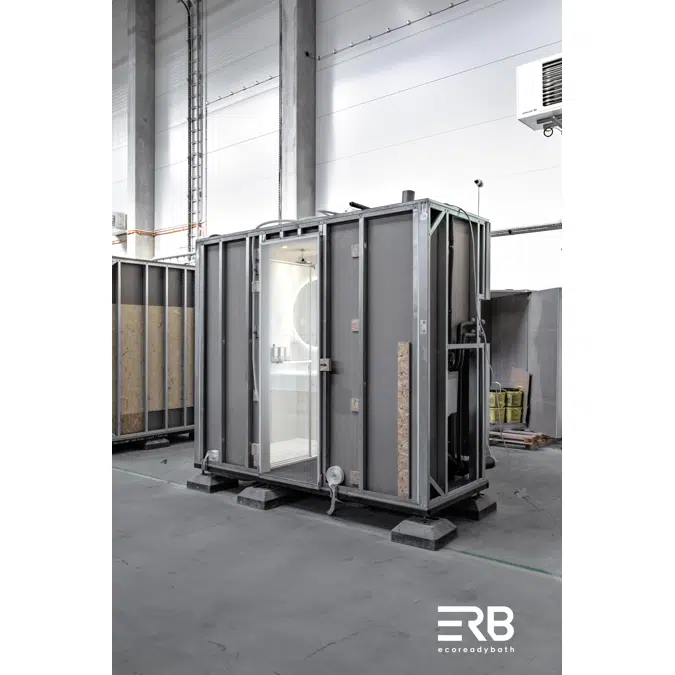

    • General Description of Bathroom Pod Construction

      • Bathroom modules are manufactured on a steel floor frame base.
      • Walls are shaped from cold-formed steel profiles connected with screws and bolts. They must be covered with plasterboard and reinforced with adhesive bonding.
      • Materials used for cladding must possess structural properties and be suitable for skeletal construction.
      • Ceiling construction comprises layered composite panels with a total thickness of 24 mm.
      • The modules' geometry complies with the ordering party's and legal requirements regarding necessary spaces and surfaces, as stipulated by standards such as DIN 18040 Part 1 and 2.
      • The weight of modules in a typical structural arrangement must range from 320 kg/m2 to 400 kg/m2.

      Bathroom Pods:

      • Shower Tray can be extended from 800 to 1500 (in increments of 100)
      • Locking of the Toilet Drain 200mm (on the right and left)
      • Standard Length 2400 / Max Length 3500
      • Shaft length variable in width (horizontal dimension may change)
      • Door Clearance not closer than 10 cm from the edge of the shower tray and at the edge of the toilet drain light
      • Small Accessories as Checkboxes - Shower faucet, sink faucet, shower caddy, toilet paper holder, brush, mirror
      • Floor Height 9-15 cm

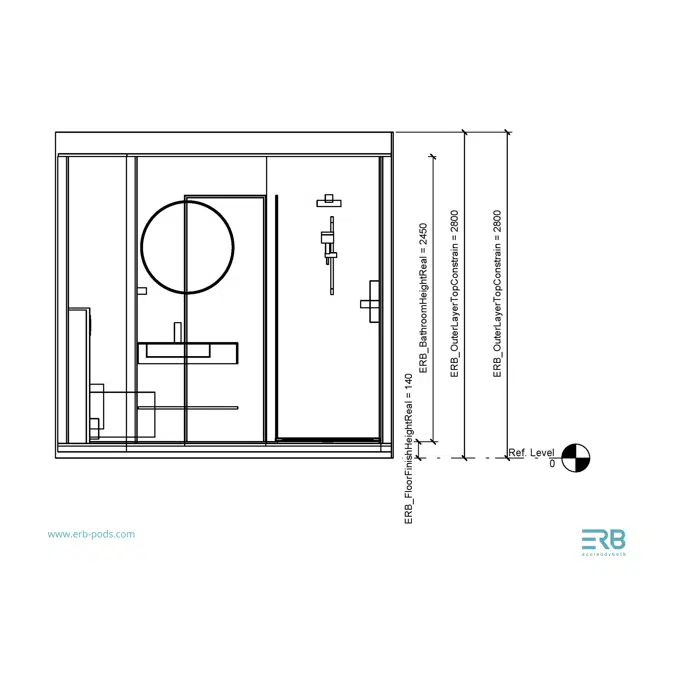

      • Bathroom Height in Clearance Min. 225 - Max. 284 (transport height)
    Teknik özellikler
    • Benzersiz ref.Bathroom-pod
    • TipObje (Tekil Nesne)
    • Yayınlanma tarihi2023-09-08
    • Baskı numarası1
    • Yükseklik (mm)2840
    • Genişlik (mm)2400
    İlgili
    • Ana malzemeÇelik
    • Tasarım yeriPolonya
    • Üretim yeriPolonya
    Sınıflandırma
    • BIMobject kategorisiYapı - Modular Space
    • IFC sınıflandırmasıİnşaat Elemanı
    • Uniclass 2015 koduSs_20_10_60
    • Uniclass 2015 açıklamasıPrefabricated framed and panelled structures
    • CSI MasterFormat 2014 kodu13 42 13
    • CSI MasterFormat 2014 başlığıBathroom Unit Modules
    • OmniClass numarası23-19 31 17 11
    • OmniClass başlığıBathroom Units
