Area Drain with 8 in. Medium Duty Round Fixed Top - FD-940
Watts

Area Drain with 8 in. Medium Duty Round Fixed Top - FD-940

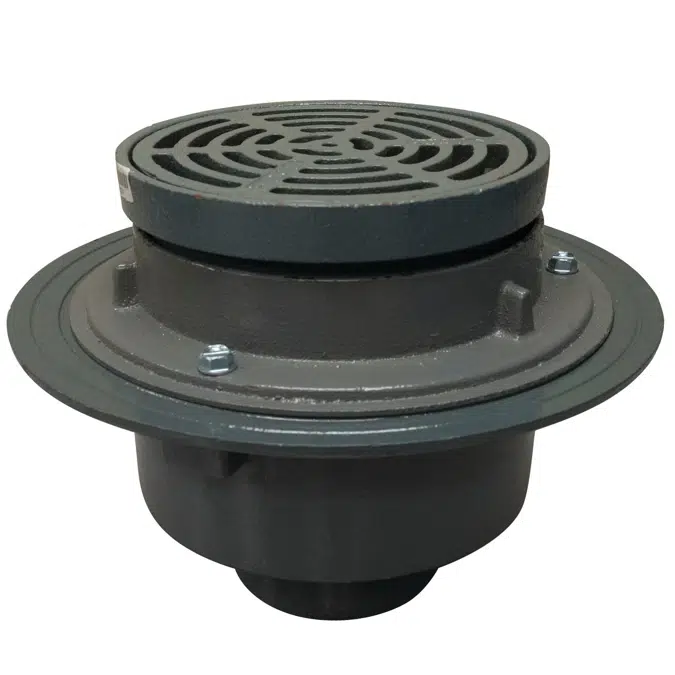

Watts Drainage Products FD-940 epoxy coated all cast iron floor drain with deep body with serrated clamping flange, combined body collar and flashing clamp device, adjustable collar, and non-tilt 8 in. (203) diameter epoxy coated ductile iron (standard) tractor grate.

สเปคสินค้า
  • Features

    • Deep body cast iron floor drain has acid resistant epoxy coating for long life
    • Combined adjustable body collar and flashing clamp
    • Heavy duty epoxy coated ductile iron non tilt grate provides superior impact resistance and durability.
    • Several pipe sizes and outlet types available

    Keywords: watts, plumbing, drainage, drains, floor drain, strainer, epoxy coated cast iron, catch basin, grate



สเปคสินค้าด้านเทคนิค
  • Unique ref.fd-940-Area-Drain
  • Product familyDrainage Solutions
  • กลุ่มผลิตภัณฑ์Floor Drains Channels Trench > Floor & Area Drains
  • ประเภทวัตถุ (วัตถุชิ้นเดียว)
  • วันที่เผยเเพร่2022-06-06
  • หมายเลขฉบับ1
สิ่งที่เกี่ยวข้อง
  • วัสดุหลักCast iron
  • ออกเเบบโดยสหรัฐอเมริกา
  • ผลิตโดยสหรัฐอเมริกา
การจำแนกประเภท
  • หมวดหมู่ BIMobjectประปา - ตะแกรงท่อน้ำทิ้ง
  • CSI MasterFormat 2014 Code22 14 26.13
  • CSI MasterFormat 2014 TitleRoof Drains
  • OmniClass Number23-39 29 11
  • OmniClass TitleWaste Water Drains
  • CSI UniFormat II CodeD2010
  • CSI UniFormat II TitlePlumbing Fixtures

พื้นที่การขาย

อเมริกาเหนือ
แคนาดา
สหรัฐอเมริกา
