AXOR ShowerSolutions Thermostatic module Select 460/90 for concealed installation for 2 functions

Specifikation

Specifikation

• Surfaces: - 18355251 Brushed Gold Optic - 18355341 Brushed Black Chrome - 18355001 Chrome - 18355821 Brushed Nickel - 18355351 Satin Black - 18355141 Brushed Bronze Specification: • consists of: Thermostatic module, shower holder • 2 functions • Select push-button on/off control for 2 outlets • simultaneous use of several outlets • maximum flow rate at 3 bar: 6,7 l/min • thermostat cartridge, Start/stop valve to operate the functions • safety lock at 40 °C • temperature limitation adjustable • hose nut: for shower hoses with conical or cylindrical nut on both sides • connection type: basic set • min. operating pressure: 1 bar • Thermostat is delivered with buttons Rain large and hand shower

Teknisk specifikation

Teknisk specifikation

• Unik ref.18355USA
• ProduktfamiljAXOR ShowerSolutions
• ProduktgruppShower thermostat
• TypObjekt (enstaka objekt)
• Publiceringsdatum2022-09-28
• Edition nummer1

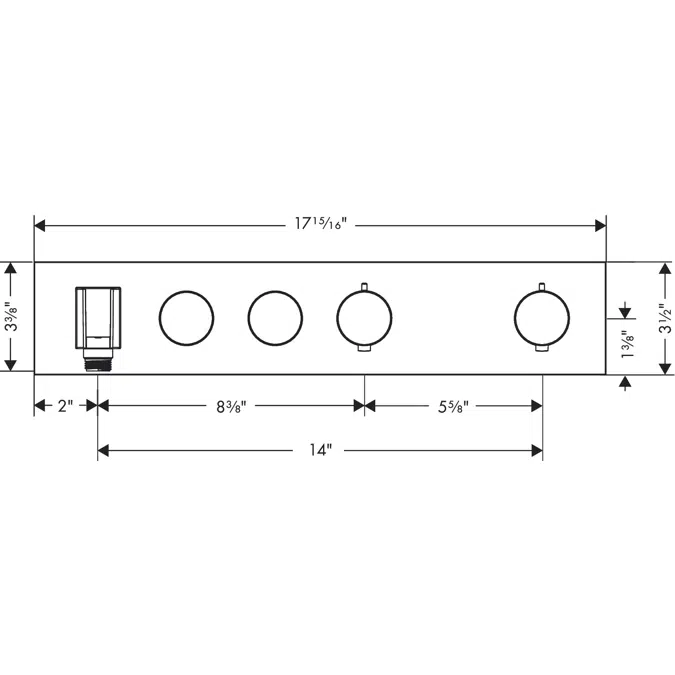

• Höjd (mm)90
• Bredd (mm)456
• Djup (mm)85

Länkar

Länkar

• Produkt-urlhttps://www.axor-design.com/articledetail--18355251

Relaterad

Relaterad

• Designad iTyskland
• Tillverkad iTyskland
• Vikt netto (kg)4

Klassificering

Klassificering

• BIMobjektkategoriSanitet - Duschar
• IFC klassificeringSanitetsterminal
• ETIM kodEC011329
• ETIM namnShower mixing tap
• UNSPSC namnShowers
• UNSPSC kod30181503
• Uniclass 2015 kodPr_40_20_87_76
• Uniclass 2015 beskrivningShower heads
• CSI MasterFormat 2014 Kod22 41 23
• CSI MasterFormat 2014 TitelResidential Showers
• OmniClass nummer23-31 17 00
• OmniClass TitelShowers
• CSI UniFormat II KodD2010
• CSI UniFormat II TitelPlumbing Fixtures
