Polyurethane roof window Extension Fixed - GIU

VELUX roof windows

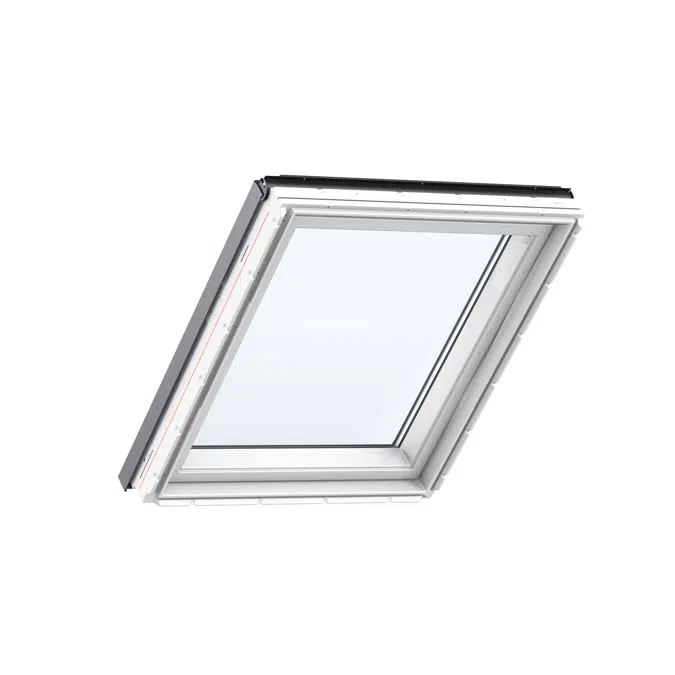

Polyurethane roof window Extension Fixed - GIU

Name: Polyurethane roof window Extension Fixed - GIU
Rating: 4.7 (6 reviews)

4.7(6 reviews)

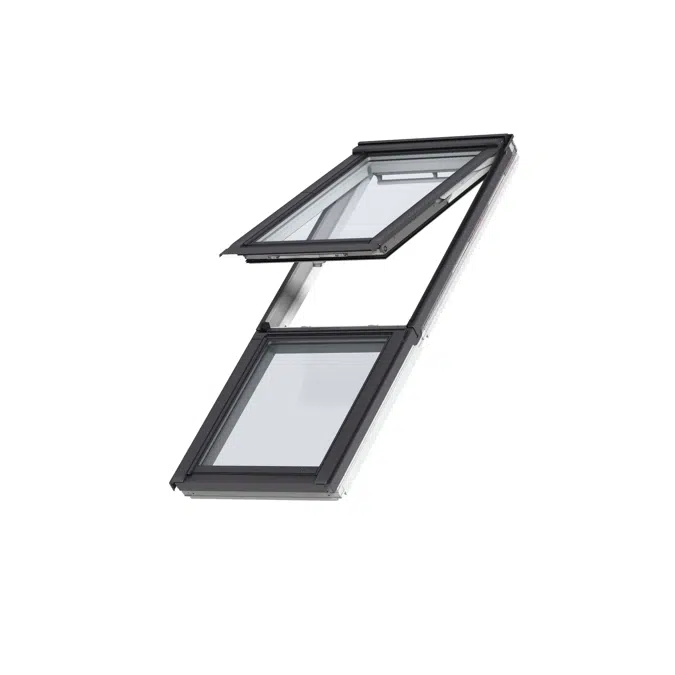

GIU is an additional fixed element that can be installed directly below a centre pivot or top-hung roof window on roof pitches between 15-90°. Cleaning of the outer glass pane is by opening the roof window above.

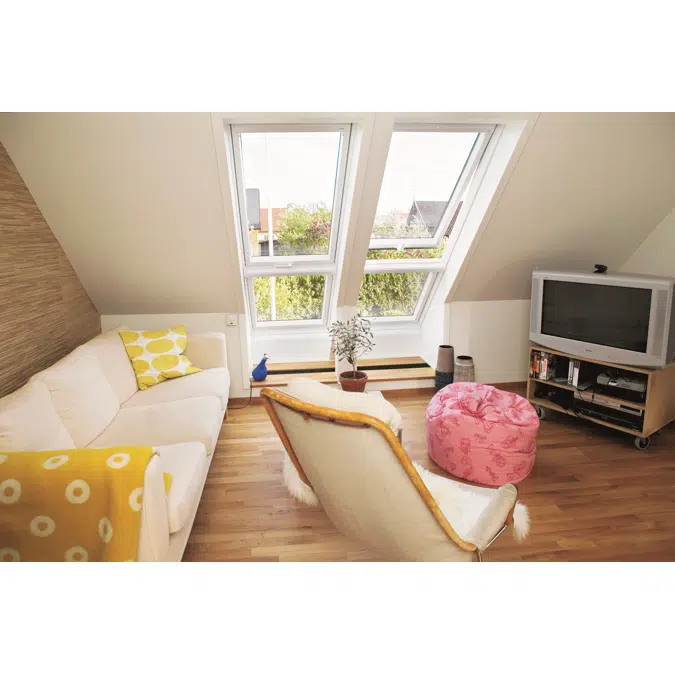

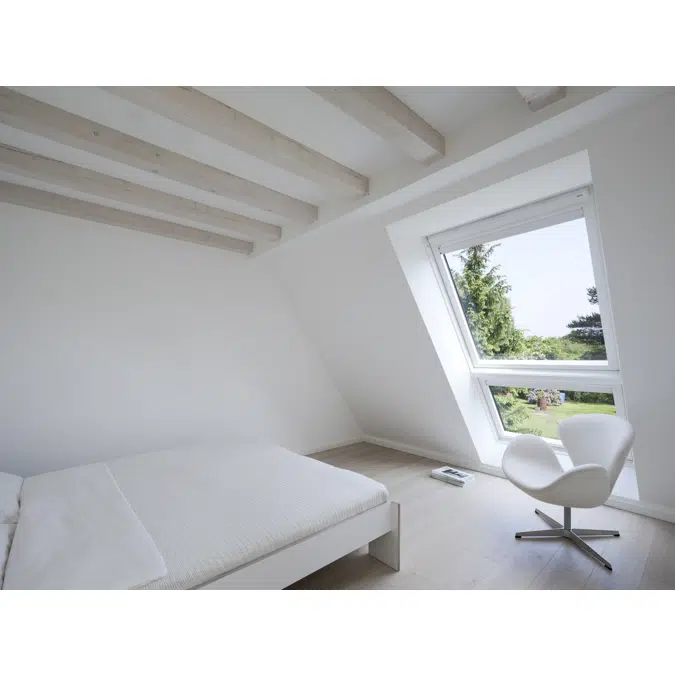

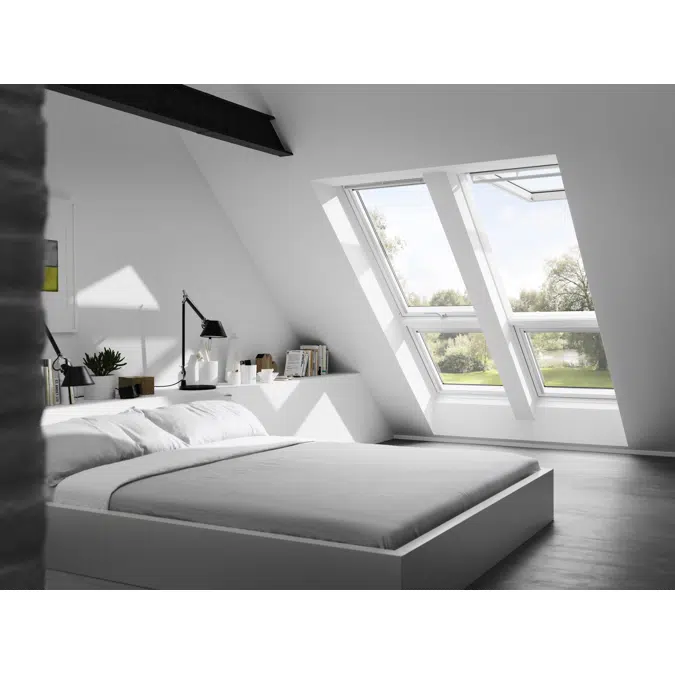

The GIU window allows even more daylight and offers a great view when standing or when seated.

The frame and sash are made of high-quality moulded polyurethane around a core of thermally modified timber with a white lacquer finish. Therefore, giving a maintenance free finish.

Externally the window has maintenance-free cover parts.

Window Sizes :	External frame W x H : mm	Effective daylight areas: m²
MK34	780 x 920	0.44
PK34	942 x 920	0.56
SK34	1140 x 920	0.70
UK34	1340 x 920	0.85

VELUX roofwindows roofwindow roof windows roof window skylight skylights

Specifikim

Finishes:
Internal - White maintenance-free
Finished with polyurethane lacquer (NCS standard colour: S 0500-N, nearest RAL standard colour: 9003).
External – Maintenance-free cover parts.
Aluminium, dark grey (NCS standard colour: S 7500-N, nearest RAL standard colour 7043).
Untreated Copper.
Titanium Zinc.

Specifikime teknike

Referencë unikeGIU
Familja e produkteveSpecial function
Grupi i produkteveFixed extension
LlojiObjekt (një objekt të vetëm)
Data e botimit2019-08-06
Numri i botimit4

Lidhje

Product URLhttps://contenthub.velux.com/api/public/content/87777-cc401-1b425_downloadOriginal?v=7cd6566b
Udhezime instalimihttps://contenthub.velux.com/api/public/content/product-guide_453281?v=5e24b10a
Certifikimet e produktevehttps://www.velux.com/ce-marking
Përshkrimet teknikehttps://contenthub.velux.com/api/public/content/87777-cc401-1b425_downloadOriginal?v=7cd6566b

Të ngjashme

Materiali kryesorPolyurethane
Materiali dytësorXham
Projektuar nëDanimarkë

Klasifikimi

Kategoria BIMobjectDritare - Dritaret Kulmi
IFC classificationDritare
Emrin UNSPSCRoofing accessories
UNSPSC code301516
Uniclass 2015 CodePr_30_59_98_72
Uniclass 2015 PërshkrimRigid polyurethane frame roof window units
CSI MasterFormat 2014 Code08 62 00
CSI MasterFormat 2014 TitleUnit Skylights
OmniClass Number23-17 13 23
OmniClass TitleRoof Windows
CSI UniFormat II CodeB3020
CSI UniFormat II TitleRoof Openings

Rajoni i disponueshëm

Europe	Oceania	Asia
Austri	Zelanda e Re	Turqi
Belgjikë
Bosnjë dhe Hercegovinë
Bulgari
Danimarkë
Estoni
Francë
Gjermani
Holandë
Hungari
Itali
Kroacia
Letoni
Lituani
Mbretëria e Bashkuar
Norvegji
Poloni
Portugali
Republika Çeke
Rumani
Serbia
Sllovenia
Slovakia
Spanjë
Suedi
Switzerland
Ukrainë
