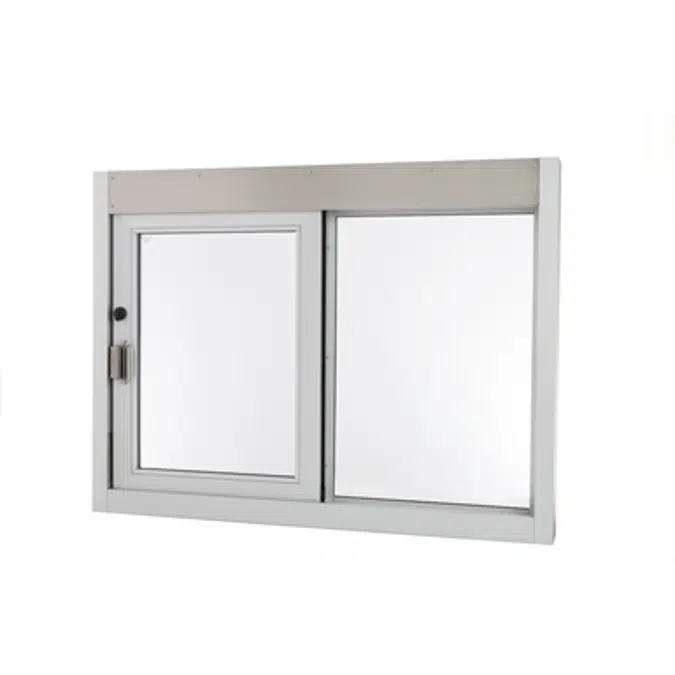

SC-4030 / SC-3030 Side Sliding Transaction Window
SC-4030 / SC-3030 Side Sliding Transaction Window
    Quikserv

    SC-4030 / SC-3030 Side Sliding Transaction Window

    Our 48″W x 36″H and 36″W x 36″H self-closing transaction windows with horizontal sliders meet all health code requirements. These self-closing units are mounted flush to the exterior wall. By simply releasing the window after serving the customer, the door panel closes automatically. With an offset in the base, and gliding on a top-hung ball bearing system, these sliders are the smoothest windows on the market. All SC transaction window models come standard with ¼” clear tempered glass.

    SC-4030: Unit Size: 48″W x 36″H
    SC-3030: Unit Size: 36″W x 36″H

    Specifikim
    • Standard Features

      • Shipped fully assembled and ready to install
      • Warranty backed with Nationwide Service Centers
      • 1/4” clear tempered safety glass
      • Weather-resistant and sealed to protect from the elements
      • Dark bronze or clear anodized aluminum
      • Corrosion-resistant material: anodized aluminum and #304-#3 finish stainless steel
      • Security locking systems
      • Maximum security hook-bolt locks
      • Automatically locks every time the door closes to prevent outside penetration
      • Right or left-hand units

      Optional Features

      • Custom colors available
      • Reduced service openings for areas requiring 432 sq. inches
      • Custom transoms and overall window sizes
      • Various glazing options (B/R, Insulated, Tinted, etc)
      • Constructed with high-visibility, bullet-resistant materials (Level 1)

      Keywords: Transaction windows, drive thru window, transaction window, food service window, fast food transaction window, bank transaction window

    Specifikime teknike
    • Referencë unikesc-4030
    • Familja e produkteveWindows
    • Grupi i produkteveSelf-Closing Slider
    • LlojiObjekt (një objekt të vetëm)
    • Data e botimit2020-09-26
    • Numri i botimit1
    Të ngjashme
    • Materiali kryesorAlumin
    • Projektuar nëShtetet e Bashkuara
    • Prodhuar nëShtetet e Bashkuara
    Klasifikimi
    • Kategoria BIMobjectDritare - Ticket Windows
    • IFC classificationDritare
    • Kodi ETIMEC003536
    • Emri ETIMWindow (complete with frame)
    • Emrin UNSPSCWindows
    • UNSPSC code301716
    • Uniclass 2015 CodePr_30_59_57
    • Uniclass 2015 PërshkrimOpening security and protection products
    • CSI MasterFormat 2014 Code08 56 19
    • CSI MasterFormat 2014 TitlePass Windows
    • OmniClass Number23-17 13 27 15
    • OmniClass TitlePass Windows
    • CSI UniFormat II CodeB2020
    • CSI UniFormat II TitleExterior Windows

    Rajoni i disponueshëm

    North America
    Kanadë
    Meksikë
    Shtetet e Bashkuara
