QSP-713S Mini Combo Hurricane Transaction Drawer - Miami - Dade County Approved

QSP-713S Mini Combo Hurricane Transaction Drawer - Miami - Dade County Approved

QSP-713S Mini Combo Hurricane Transaction Drawer - Miami - Dade County Approved

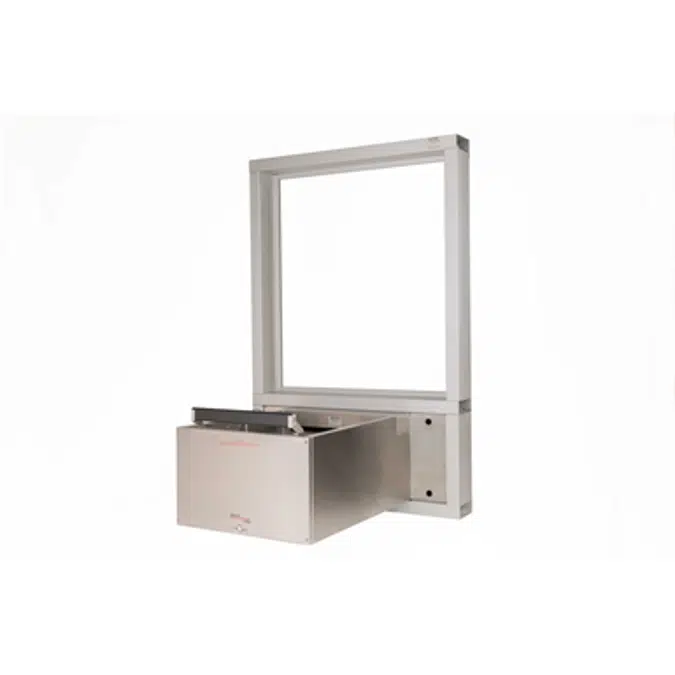

This 32-1/4″W x 49-1/4″H unit is an economical fixed glass panel and transaction drawer combination unit. This can be glazed with Level 1 or 3 bullet-resistant glazing. This unit has either the manual or electric pharmacy drawer already installed in the framing. This one piece unit comes with mounting brackets for easy installation at the job site. The hurricane impact versions come with Level 1 or Level 3 bullet-resistant, hurricane-impact glass.

Dade County Approved (NOA – 17-0731.04)
QSP-713S: Unit Size: 32-1/4″W x 49-1/4″H

Specifikim

Standard Features
- Shipped fully assembled and ready to install
- Warranty backed with Nationwide Service Centers
- Weather-resistant and sealed to protect from the elements
- Corrosion-resistant material: anodized aluminum and #304-#3 finish stainless steel
- Security locking systems
- Level 1 bullet-resistant in closed position
- Serviceability – drawer can be serviced without removing the entire unit
- Transfer area automatically locks when in a closed position
Optional Features
- Electric drawer
- Call button and speakers
- Full intercom systems
- Counter mounting brackets
- 450 watt forced air heater for electric drawer
- Easy manual operation upon power failure for electric drawer
- ETL listed for electric drawer

Specifikime teknike

Referencë unikeqsp-713s-mini-combo-miami-dade-county-approved
Familja e produkteveWindows
Grupi i produkteveMiami - Dade County Approved
LlojiObjekt (një objekt të vetëm)
Data e botimit2020-09-26
Numri i botimit1

Lidhje

Product URLhttps://www.quikserv.com/qsp-713s-mini-combo/
Udhezime instalimihttps://www.quikserv.com/wp-content/uploads/2019/04/QSP-713S-MINI-2016R-Installation-Drawing.pdf
Certifikimet e produktevehttps://www.quikserv.com/wp-content/uploads/2019/04/Miami-Dade-PCJ-Approval-17-0731-04-1.pdf
Përshkrimet teknikehttps://www.quikserv.com/wp-content/uploads/2019/04/QS-1Sheet-PharmacyPackage-Rev-2.0.pdf

Të ngjashme

Materiali kryesorÇelik
Projektuar nëShtetet e Bashkuara
Prodhuar nëShtetet e Bashkuara

Klasifikimi

Kategoria BIMobjectDritare - Ticket Windows
IFC classificationDritare
Kodi ETIMEC003536
Emri ETIMWindow (complete with frame)
Emrin UNSPSCWindows
UNSPSC code301716
Uniclass 2015 CodePr_30_59_57
Uniclass 2015 PërshkrimOpening security and protection products
CSI MasterFormat 2014 Code08 56 19
CSI MasterFormat 2014 TitlePass Windows
OmniClass Number23-17 13 27 15
OmniClass TitlePass Windows
CSI UniFormat II CodeB2020
CSI UniFormat II TitleExterior Windows

Rajoni i disponueshëm

North America
Kanadë
Meksikë
Shtetet e Bashkuara
