Meyer Sound

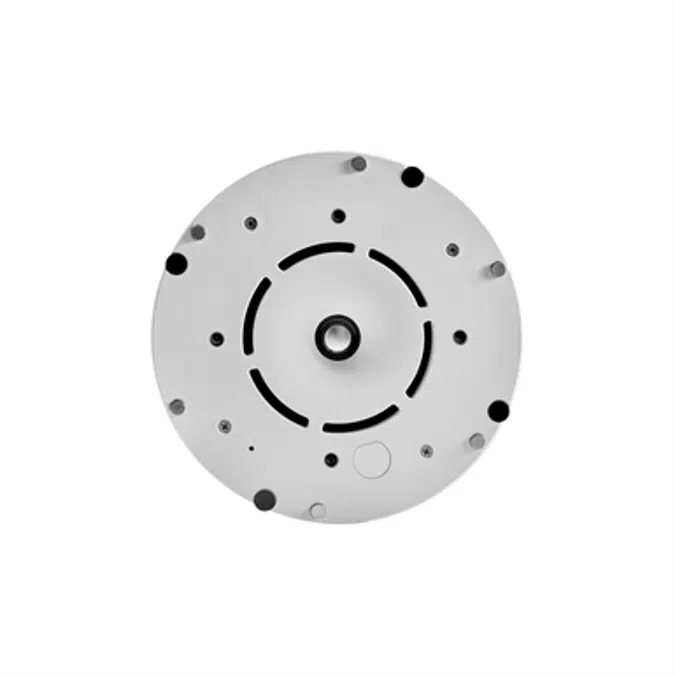

Ashby Ceiling Loudspeakers

The Ashby’s dual-driver concentric configuration offers accuracy and fidelity over a full range: Experience it all, from crystal-clear speech to music’s sparkling highs and rich bass.

Features & Benefits

Self-powered
Easy to install
Extremely wide and consistent coverage
Ultra low distortion
Exceptional SPL-to-size ratio
Beautiful low frequency response and reproduction of speech and music
Supports long cable runs with light-gauge cablesOne MPS-488HP can power up to 16 Ashby-8Cs

Applications

Distributed systems for music and paging that demand high-quality audio and vocal intelligibility
Constellation acoustic systems

Specifikim

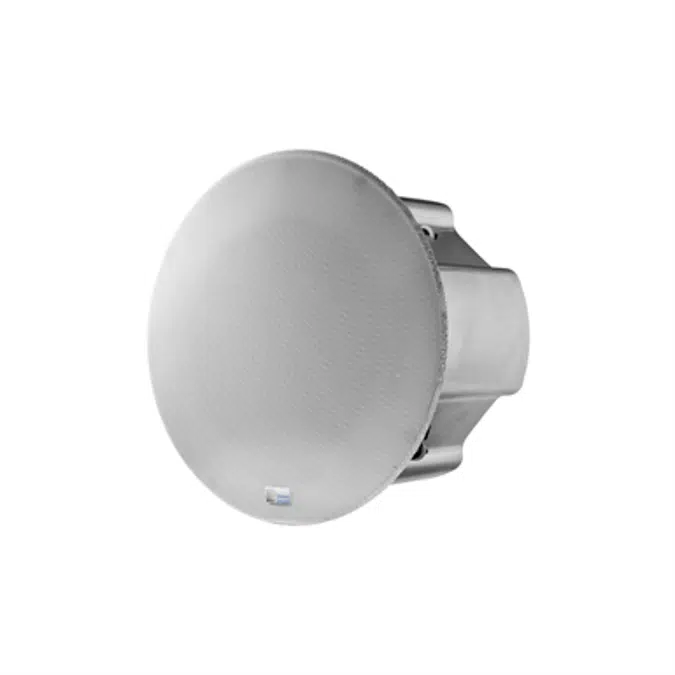

Ceiling Loudspeaker: Ashby 5C
The loudspeaker shall be self-powered and include one 5-in (127 mm) diameter coaxial transducer and one 0.75-in (20 mm) dome tweeter mounted concentrically in wave guide in front of the 5-in driver.
Performance specifications for a typical production unit shall be as follows, measured at 1/3-octave resolution: operating frequency range, 100 Hz - 18 kHz; phase response, 290 Hz – 16 kHz ±45° and a conical coverage of 110 degrees. The loudspeaker shall be capable of maximum linear peak SPL of 112 dB peak at 1 m measured using M-noise, a full-range signal developed by Meyer Sound to better model the loudspeaker’s performance with music.

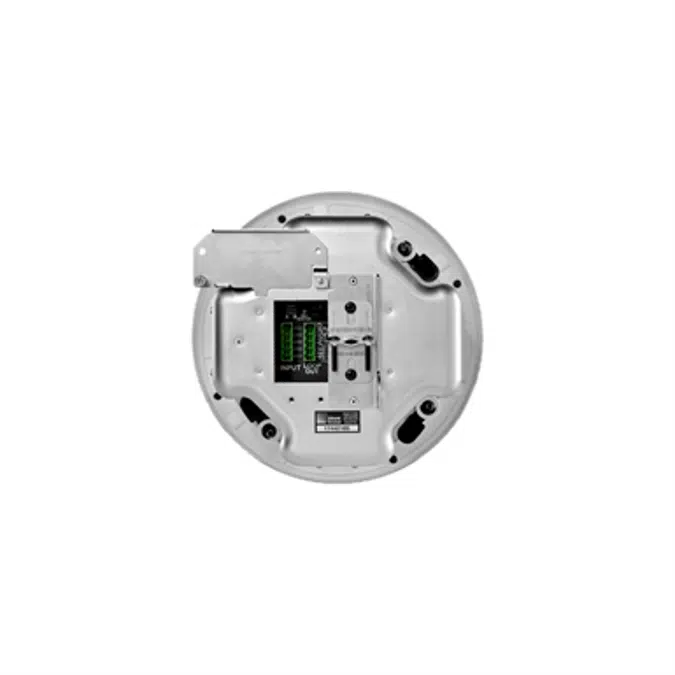

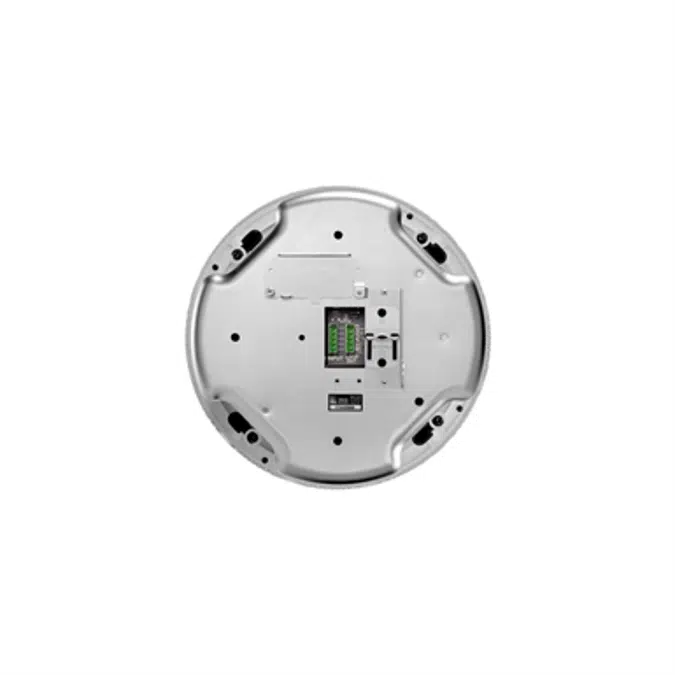

The loudspeaker shall be equipped with two Phoenix 5-pin male connectors (pins 1, 2 for 48 V DC power, pins 3, 4, 5 for balanced audio). One shall be the input, the second connector shall be hard wired for looping. The loudspeaker shall have looping capabilities, and when connected to one channel of the required power supply up to three units can be powered. The audio input shall be electronically balanced with a 10 kOhm impedance and shall accept a nominal -2.5 dBV (0.25 V rms, 1 V peak) signal.
The loudspeaker shall incorporate a highly efficient Class-D power amplifier with a total output power of 220 W (440 W peak). Power requirements for the loudspeaker shall be a Meyer Sound MPS-488HP power supply, capable of delivering 48 V DC. Current draw for the loudspeaker shall be 0.16 A in idle state and its maximum long-term continuous current draw shall be 0.32 A with a duration of less than 3 s.
The loudspeaker shall tolerate voltage drops up to 30% caused by long cable runs when connected to one channel of the required power supply. Maximum cable run for a single unit is 450 ft with 18 AWG (135 m with 1.0 mm) and the maximum cable run for three looped units is 150 ft with 18 AWG (45 m with 1.0 mm).

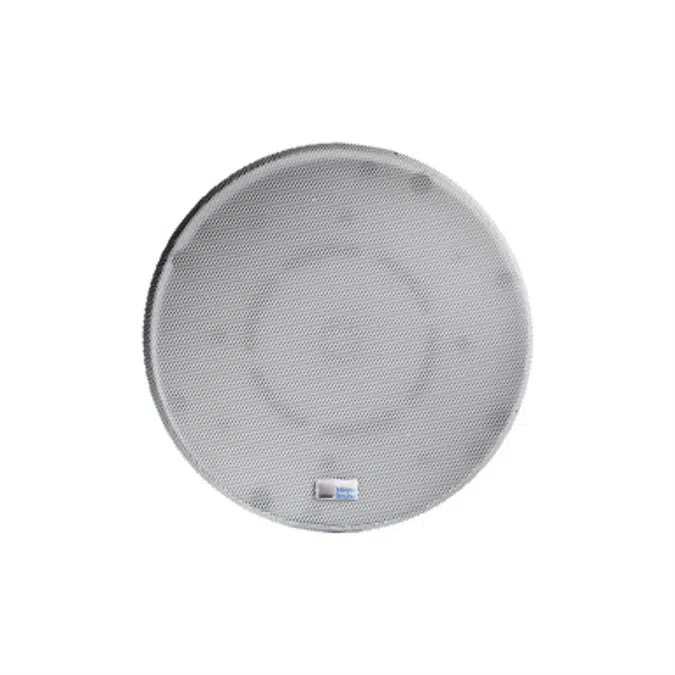

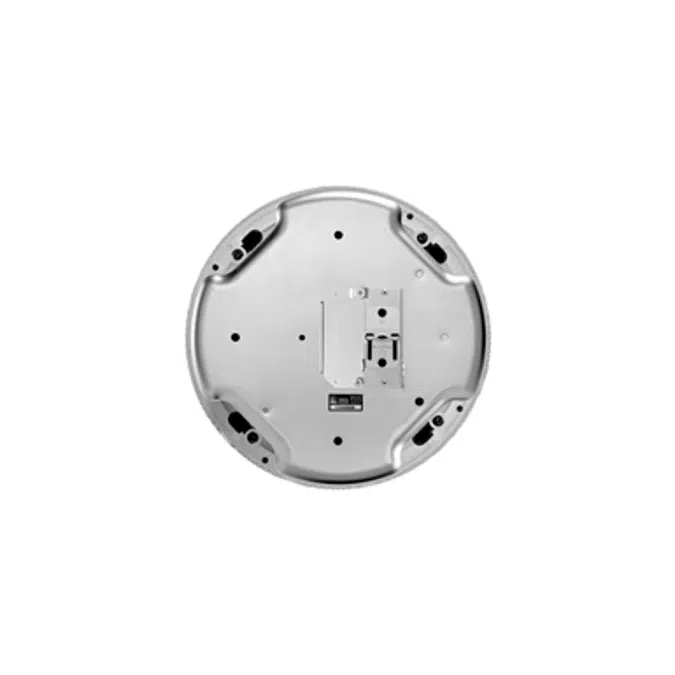

Loudspeaker components shall be housed in a zinc-plated steel enclosure which shall also include a UL94V-0 rated baffle. The enclosure shall incorporate 4 mounting clamps for flush-mount installations in ceilings and walls with a minimum depth of 7.17 in (182 mm). Grille shall be made of perforated steel and its diameter shall be 9.34 in (237.3 mm).
Dimensions shall be 8.92 in (226.5 mm) in diameter and 7.17 in (182 mm) in depth (front of ceiling surface to built-in safety attachment ring). Cutout diameter range shall be 7.60 - 7.875 in (193 - 200 mm). Weight shall be 7.8 lb (3.53 kg).
The loudspeaker shall be the Meyer Sound Ashby-5C
Ceiling Loudspeaker: Ashby 8C
The loudspeaker shall be self-powered and include one 8-in (203.2 mm) diameter coaxial transducer and one 0.75-in (20 mm) dome tweeter mounted concentrically in wave guide in front of the 8-in driver.
Performance specifications for a typical production unit shall be as follows, measured at 1/3-octave resolution: operating frequency range, 60 Hz - 18 kHz; phase response, 190 Hz – 16 kHz ±45° and a conical coverage of 100 degrees.
The loudspeaker shall be capable of maximum linear peak SPL of 114 dB peak at 1 m measured using M-noise, a full-range signal developed by Meyer Sound to better model the loudspeaker’s performance with music.
The loudspeaker shall be equipped with two Phoenix 5-pin male connectors (pins 1, 2 for 48 V DC power, pins 3, 4, 5 for balanced audio). One shall be the input, the second connector shall be hard wired for looping. The audio input shall be electronically balanced with a 10 kOhm impedance and shall accept a nominal -2.5 dBV (0.25 V rms, 1 V peak) signal.
The loudspeaker shall incorporate a highly efficient Class-D power amplifier with a total output power of 220 W (440 W peak). Power requirements for the loudspeaker shall be a Meyer Sound MPS-488HP power supply, capable of delivering 48 V DC. Current draw for the loudspeaker shall be 0.16 A in idle state and its maximum long-term continuous current draw shall be 0.78 A with a duration of less than 3 s.
The loudspeaker shall tolerate voltage drops up to 30% caused by long cable runs when connected to one channel of the required power supply. Maximum cable run for a single unit is 300 ft with 18 AWG (90 m with 1.0 mm) and the maximum cable run for two looped units is 150 ft with 18 AWG (45 m with 1.0 mm).

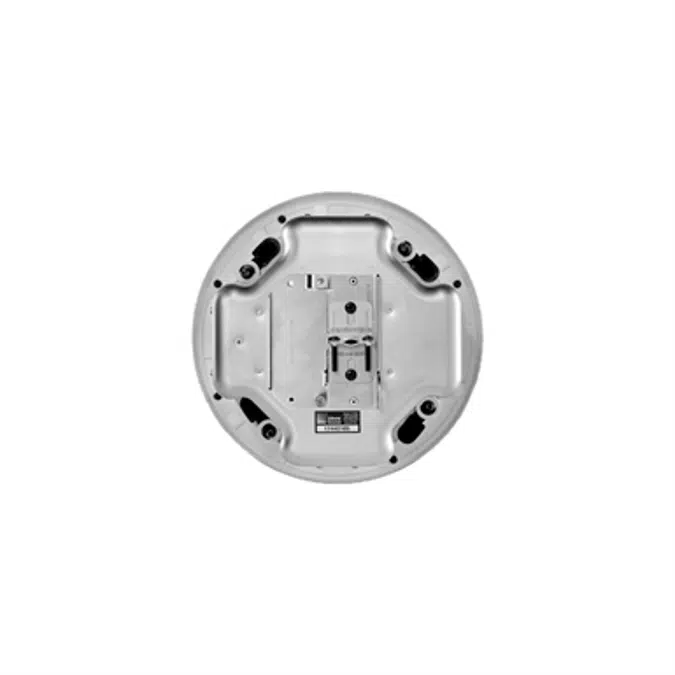

Loudspeaker components shall be housed in a zinc-plated steel enclosure which shall also include a UL94V-0 rated baffle. The enclosure shall incorporate also 4 mounting clamps for flush-mount installations in ceilings and walls with a minimum depth of 8.87 in (225.3 mm). Grille shall be made of perforated steel and its diameter shall be 12.97 in (329.3 mm).
Dimensions shall be 12.64 in (321 mm) in diameter and 8.87 in (225.3 mm) in depth (front of ceiling surface to built-in safety attachment ring). Cutout diameter range shall be 11.32 - 11.75 in (287.6 - 298.4 mm). Weight shall be 13.8 lb (6.26 kg).
The loudspeaker shall be the Meyer Sound Ashby-8C.
Keyword: Loudspeaker, Loudspeakers, Ceiling Loudspeaker, Ceiling Loudspeakers

Specifikime teknike

Referencë unikemeyersound-ashby
Familja e produkteveLoudspeakers
Grupi i produkteveULTRA
LlojiObjekt (një objekt të vetëm)
Data e botimit2020-03-12
Numri i botimit2

Lidhje

Product URLhttps://meyersound.com/product/ashby/
Udhezime instalimihttps://meyersound.com/download/ashby-operating-instructions/?wpdmdl=10918&masterkey=59fbc40103189
Certifikimet e produktevehttps://meyersound.com/download/ashby-8c-datasheet/?wpdmdl=32890&masterkey=5a6fcc01f21dc
Përshkrimet teknikehttps://meyersound.com/download/ashby-8c-datasheet/?wpdmdl=32890&masterkey=5a6fcc01f21dc

Të ngjashme

Materiali kryesorAlumin
Projektuar nëShtetet e Bashkuara
Prodhuar nëShtetet e Bashkuara

Klasifikimi

Kategoria BIMobjectElektronikë - Audio
IFC classificationObjekt
Uniclass 2015 CodePr_70_75_36_50
Uniclass 2015 PërshkrimLoudspeakers
CSI MasterFormat 2014 Code27 24 23
CSI MasterFormat 2014 TitleAudio-Video Devices
OmniClass Number23-37 15 29 11 13
OmniClass TitleLoudspeakers
