Magnetic Access Pro-H

Name: Magnetic Access Pro-H
Rating: 3.7 (6 reviews)

3.7(6 reviews)

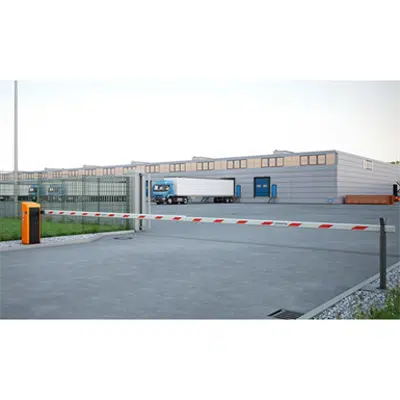

"The Magnetic.Access Pro-H model is part of the Magnetic.Access product range and is especially designed for access applications with a boom skirt. Magnetic.Access Pro-H models contain the same components as Magnetic.Access Pro-L barriers but the housing is adjusted in height and it comes with a MicroBoom (straight boom) instead of a VarioBoom. Optionally available are pluggable modules to extend the functionality of the barrier as well as comprehensive accessories. The Magnetic.Access range does not only offer long-life cycle, great reliability and quality but impresses with sophisticated and enduring design, extremely low operational costs, high ease of use and almost maintenance-free technology."

Specifikim

"Drive unit The drive unit of MHTM™ MicroDrive is not only astonishing because of its small dimensions. You also get a high torque with an extremely minimized power consumption. The high torque guarantees best operation even under severe weather conditions (heavy winds, snow, etc.). The motor, motor control and gearing are all combined in one compact drive unit. Control unit The control unit MGC Pro is compliant with EN 13849. It is located directly underneath the top cover and can be accessed from all sides. Configuring the barrier is easily accomplished via the LCD’s intuitive user interface that can be navigated with just 4 push-buttons. Design and quality MHTM™ MicroDrive barriers impress with sophisticated and enduring design. The modularly designed housing made of extruded aluminium profiles and a base frame made of stainless steel (both powder-coated) offers best protection against corrosion. The MHTM™ product line is winner of the red dot award: product design 2012. MicroBoom and boom skirt The straight barrier boom MicroBoom is only available for Magnetic.Access Pro-H models and serves as guidance for the boom skirt. Depending on the model of the boom skirt (with or without over-climb protection), it is fixed underneath or at the side of the boom as well as at the housing. A bottom rail profile with a foamed edge protection offers stability and safety. For additional stability, a pendulum support or a support post is used."

Specifikime teknike

Referencë unikeMagnetic-Access-PRO-H
Familja e produkteveMHTM MicroDrive
Grupi i produkteveAutomatic Vehicular Barriers
LlojiObjekt (një objekt të vetëm)
Data e botimit2016-12-06
Numri i botimit1
Gjatësia (mm)1115
Gjerësia (mm)360
Thellësia (mm)315

Lidhje

Product URLhttps://www.magnetic-access.com/en/products/barriers/access/access-pro-h.html
Video udhëzuesehttps://www.youtube.com/watch?v=UhrqRGPXxCg
Certifikimet e produktevehttps://www.magnetic-access.com/en/downloads/certificates.html
Përshkrimet teknikehttps://www.magnetic-access.com/files/data-DE/datenblaetter/DB_Access%20Pro-H_en.pdf

Të ngjashme

Materiali kryesorAlumin
Materiali dytësorÇelik
Projektuar nëGjermani
Prodhuar nëGjermani
Weight Net (kg)44

Klasifikimi

Kategoria BIMobjectInxhinieri & Infrastrukturë - Pajisje Rrugore
IFC classificationElement elektrik
Uniclass 2015 CodePr_40_70_22_06
Uniclass 2015 PërshkrimBarrier parking control units
CSI MasterFormat 2014 Code01 55 00
CSI MasterFormat 2014 TitleVehicular Access and Parking
OmniClass Number23-39 11 11 15
OmniClass TitleTraffic Barriers
