Inspiring window and door designs in the GEALAN building model - Created with the GEALAN Plug-In for Revit

Name: Inspiring window and door designs in the GEALAN building model - Created with the GEALAN Plug-In for Revit
Rating: 4.6 (7 reviews)

4.6(7 reviews)

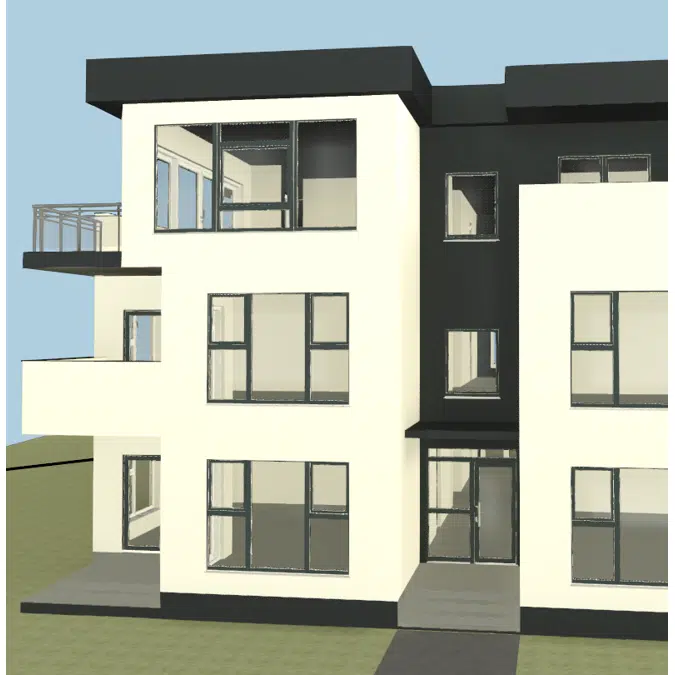

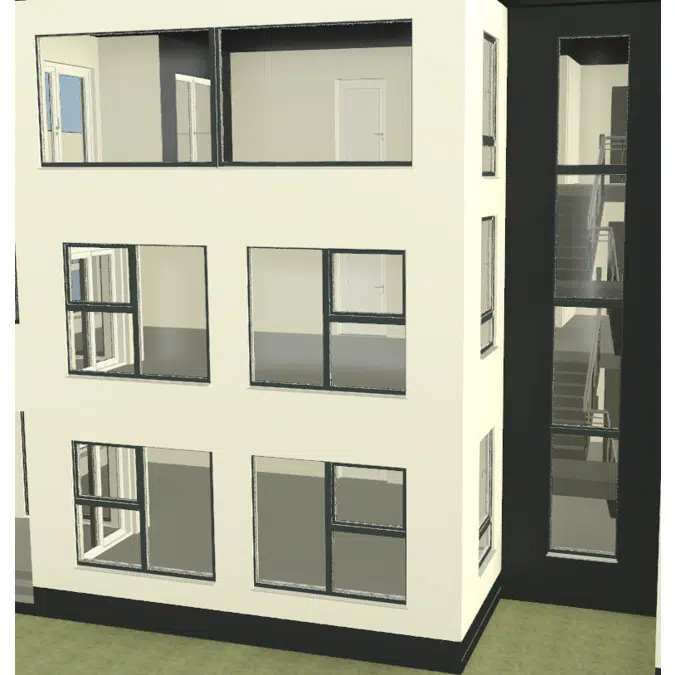

Experience the future of window planning with our GEALAN Revit Plug-In! The windows, doors (entrance doors, balcony doors...), and sliding doors used in the building model were created with our powerful Planersoftware 3.0 Plug-In seamlessly integrated into Revit. Explore inspiring designs, benefit from automatic calculations, U-value analyses, and more. Download the building model and be inspired by some window and door models created with the Planersoftware 3.0 Plug-In.

You can download the Plug-In on the GEALAN BIMobject site

Advantages of the Planersoftware 3.0 Revit Plug-In

Unlimited Design Freedom: Create windows and doors according to your individual preferences and requirements to realize unique architectural designs.

Automatic Calculations: Continuous background calculations ensure that your designed windows and doors are not only aesthetically appealing but also meet the highest standards in terms of size, statics, and energy efficiency.

Fast Planning and Implementation: By being able to create even complex elements in a short time, the Plug-In offers a time-saving solution for planning and implementing windows and doors in Revit projects.

Qualitative BIM Data: The generated BIM data adheres to the highest standards for Level of Geometry (LOG) and Level of Information (LOI), resulting in a precise and detailed representation of the planned windows and doors.

Visual Representation: Obtain a clear 2D and 3D visualization of your designed elements, including colors, dimensions, and a 3D preview to illustrate your planning optimally.

Free Use: The Revit Plug-In is available for free to architects, planners, and BIM users, allowing for wide application and integration into various projects.

The Planersoftware 3.0 Plug-In automatically generates Revit families for all window and door shapes (infinite selection). Examples include standard windows, corner windows, entrance doors, balcony doors, sliding doors, and much more.

You can download the Plug-In on the GEALAN BIMobject site

Specifikim

Are you looking for a tool to generate high-quality window and door BIM models for Revit in just a few minutes? Utilize our free Revit Plug-In! Choose the appropriate model for your project from preset windows and doors. If the desired model is not available, no problem. Use the "Free Construction" feature to design your own windows and doors.
Possible Revit families for windows and doors

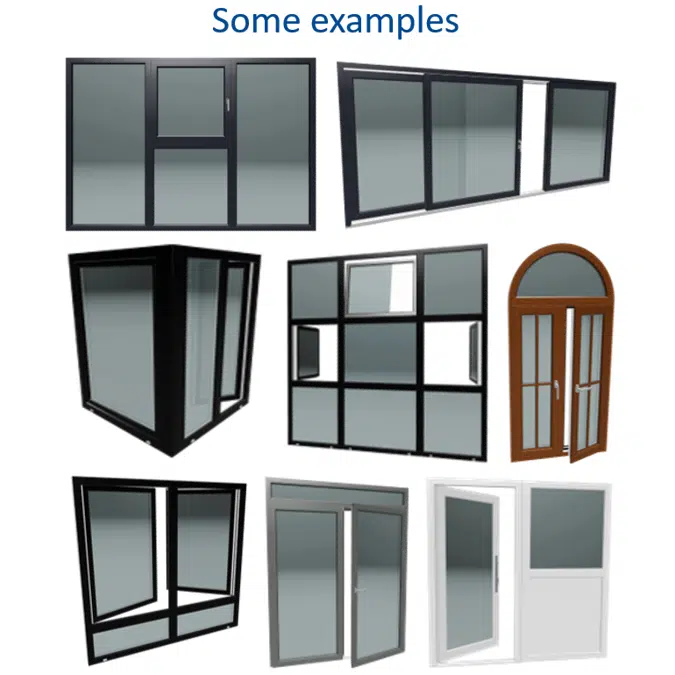

Windows: Standard window, tilt-turn window, corner window, casement window, post window, pointed arch window, slanted window, round arch window, triangular window, and many more.
Door: Entrance door, balcony door, patio door, lift-slide door, sliding door, window door with threshold, and many more.
You can download the Plug-In on the GEALAN BIMobject site

Specifikime teknike

Referencë unikeinspiring-window-and-door-designs-in-the-gealan-building-model-created-with-the-gealan-plug-in-for-revit
Familja e produkteveWindow - Door - Sliding Door
Grupi i produkteveRevit Plug-In (Window - Door - Sliding Door)
LlojiShowcase (model)
Data e botimit2024-01-11
Numri i botimit1

Lidhje

Të ngjashme

Materiali kryesorPVC
Materiali dytësorXham
Projektuar nëGjermani
Prodhuar nëGjermani
