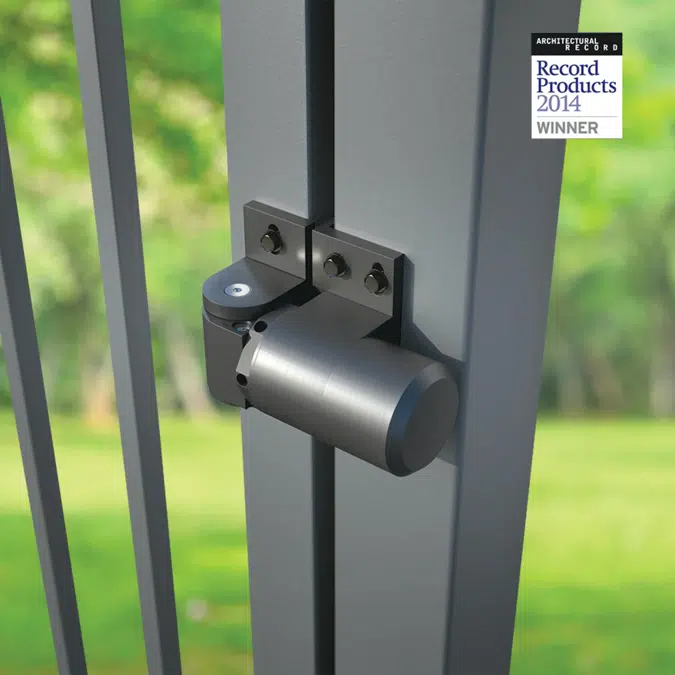

SureClose ReadyFit 108 SF

Hydraulic SureClose® Gate Closers & Hinges are designed to replace conventional, bulky commercial gate hinges and closers. These strong and sturdy hinge-closers provide smooth, bind-free performance. Superb engineering and patented design allow clever concealment of the hydraulics in a remarkably small housing. There is no compromise of quality with these small-footprint SureClose® gate closers and hinges. Each ‘ReadyFit’ model lives up to its name by providing convenient screw slots and holes for sturdy fixing. 25mmx12g self-drilling Tek screws are supplied. The slots allow fine vertical adjustment for speedy gate alignment. Horizontal adjustment is attained by way of a built-in, adjustable locking ring that rotates in or out as required to ensure the gate is level and overall alignment is achieved. It’s remarkably simple for a commercial-style gate closer product. All SureClose® Hinges and Closers are made of high-grade Aluminum. Optional, L-shaped steel mounting brackets can either be welded or fastened to appropriate gate frames and posts.

Specifikim

Externally Mounted, Hydraulic Self-Closing Hinge-Closer
• Controlled quiet close
• Gap variance of Min. ½” to Max. 1⅜” (12-35mm)
• Screw-on or weld-on (screws and brackets included)
• Final Snap-close action in all "108" models
• Maximum opening angle 88º
• Alignment legs give double face-fixing strength
• Emergency Override feature for safety and longevity
• Minimum fence post size 2" (50mm)
• Must install a gate-stop to prevent the gate opening more than 90º

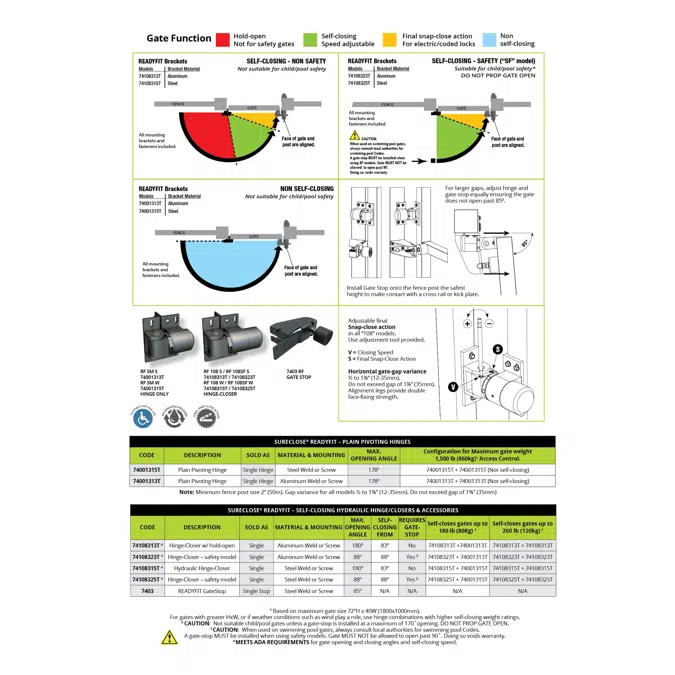

• One Hinge-Closer (108) + one Plain Hinge (SM) hold up to 180lb (80kg) – See Chart
• Two Hinge-Closers hold 260lb (120kg). See detailed table – See Chart

Brand	SureClose^®
Product Code	74108323T, 74108325T
Gate Application	Pool Gate, Child Safety Gate, Front Gate, Side Gate, Pedestrian Gate, Driveway Gate - Double, Driveway Gate - Single, Pet Gate, Playground Gate, Public/Commercial Gate, Security Gate, Privacy Gate, Safety Gate
Gate Type	Self-Closing, Non Self-Closing
Gate Material	Aluminum, Steel/Ornamental Iron
Self-Closing Gate Weight	Up to 180lb (80kg), Up to 260lb (120kg)
Approx Gate Size	4ft W x 6ft H (1.2m x 1.8m)
Gate Frame/Post Shape	Square-to-Square
Min Post Size	2"+ (50mm)
Ideal Gate Gap	½”–1⅜” (12-35mm)
Fixing Method	Screw-On, Bolt-On, Weld-On
Color/Finish	Black Anodised

Specifikime teknike

Referencë unikeSureClose-ReadyFit-108-SF
Familja e produkteveGate Hinges
Grupi i produkteveHinges
LlojiObjekt (një objekt të vetëm)
Data e botimit2023-06-13
Numri i botimit1
