Adjustable Rail QuadraRack™ & ServerRack

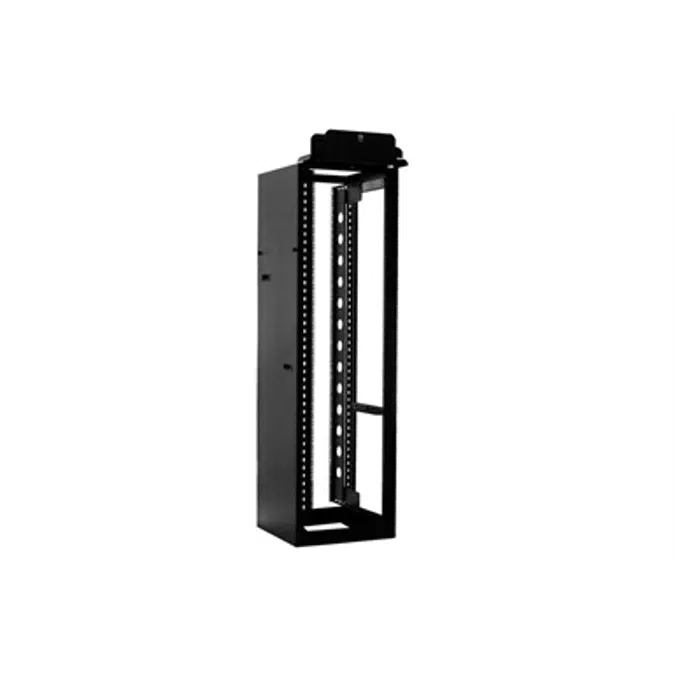

The Adjustable Rail QuadraRack® (ARQR) and the Adjustable Rail ServerRack (ARSR) provide a sturdy, feature rich solution for supporting rack-mount network, computer server and data storage equipment in data centers, computer equipment rooms and other IT facilities. Both racks offer the strength and stability of an enclosure in an open four-post mounting system that provides easy access to equipment and cabling.

The front and rear frames are welded to speed assembly and increase strength. Four brackets connect the front and rear corners of the frames. Front mounting rails attach to the front frame in a fixed position and align with the front of the rack or can be reversed for recessed mounting to maximize side-to-side airflow through network switches. Rear mounting rails can be adjusted in depth even after the rack has been bolted to the floor and can be extended beyond the rear of the frame by 6” (150 mm). A second set of holes along the sides of the frame lets you add optional side-mounted equipment support rails that are independent of the mounting rails and use no Rack-Mount unit (U) space. The bottom of the rack is punched for easy floor attachment. Each rack will support up to 2,204 lb (1000 kg) of equipment.

The Adjustable Rail ServerRack has square-punched mounting rails that let you change mounting hardware (cage nuts) to match specific computer server and data storage equipment mounting requirements. The Adjustable Rail QuadraRack has threaded mounting holes that speed installation of patch panels, fiber enclosures and network switches. Each U is marked and numbered on the front pair of mounting rails making it easy to locate and position equipment. The front pair of mounting rails may be mounted to allow U numbering to start at the top or bottom of the rack.

Each rack is available in three heights and two depths and includes a Top-Mount Cable Waterfall Tray with adjustable radius drops to allow easy side-to-side routing for patch cords. Use with any CPI cabling section (vertical cable manager) or Cable Guide Kits to organize cables along the sides of the rack. Attach CPI Cable Runway to the top of the rack with J-Bolts, a Cable Runway Elevation Kit or a Cable Runway Mounting Bracket to support overhead premise cables. A side panel option is also available and can be mounted to CPI’s vertical cable management products.

CPI Online Catalog

Specifikim

• Four-post frame with threaded or square-punched mounting rails used to support 19” wide rack-mount network, computer server and data storage equipment and shelves
• For indoor use only, in environmentally controlled areas; may not be used outdoors, in industrial or harsh environments or in plenum spaces
• Includes:
- (2) Mounting frames, (4) horizontal braces, (2) front mounting rails, (2) rear mounting rails & (1) top-mount cable tray
- Assembly hardware
- (1) Two Mounting Hole Ground Terminal Block and Antioxidant Joint Compound
- Adjustable Rail QuadraRack includes (50) #12-24 screws
- Adjustable Rail ServerRack includes (50) #12-24 cage nuts and screws
- Order installation hardware separately (P/N 40604-001 or 40604-003 for concrete floors)
• Available Sizes: See dimensions and order table
• Usable Equipment Space: See dimensions and order table
• Equipment Support:
- Front equipment mounting rails can be mounted flush to the front of the rack or recessed 2.95” (75 mm)
- Rear equipment mounting rails attach at .98” (25 mm ) increments and are adjustable front-to-rear from 15” (380 mm) to “Max Rail Depth” in the order table
- 19” wide, EIA-310-D compliant hole pattern, 1-3/4” high (44.45 mm) U, Universal hole pattern with 5/8”- 5/8”-1/2” (15.9 mm - 15.9 mm - 12.7 mm) vertical hole spacing
- Adjustable Rail QuadraRack has threaded #12-24 equipment mounting holes
- Adjustable Rail ServerRack has square-punched .375” (9.53 mm) equipment mounting holes
- Rack-Mount (U) spaces are marked and numbered on the front mounting rails; rails can be mounted with numbers beginning at the top or bottom of the rack
• Load Capacity: 2,204 lb (1000 kg) of equipment, evenly distributed over all four corners
• Grounding and Bonding:
- Rack components are bonded together during assembly per TIA-942
- Two ground connections (two pairs of M6 studs on 5/8” centers) are located at the front and rear of the rack on the bottom center of the frame
- One ground terminal block is included with the rack
• Certifications: 19” EIA-310-D compliant; UL Listed 60950
• Material: Steel
• Construction: Welded front and rear frame, bolted assembly; ships unassembled, flat on a pallet
• Finish: Epoxy-polyester hybrid powder coat paint available in black, gray, computer beige or glacier white

Specifikime teknike

Referencë unikecpi-adjustable_rail_quadrarack_-_serverrack
Familja e produkteveComputer Network Equipment
Grupi i produkteveRack Systems
LlojiObjekt (një objekt të vetëm)
Data e botimit2014-12-18
Numri i botimit1

Lidhje

Të ngjashme

Materiali kryesorÇelik

Klasifikimi

Kategoria BIMobjectElektronikë - Komunikim
IFC classificationElement elektrik
Emrin UNSPSCNetwork cable
UNSPSC code26121609
Uniclass 2015 CodePr_65_72
Uniclass 2015 PërshkrimElectrical power products and wiring accessories
CSI MasterFormat 2014 Code26 00 00
CSI MasterFormat 2014 TitleElectrical
OmniClass Number23-35 33 23 13
OmniClass TitleVertical Electrical Racks
CSI UniFormat II CodeD5010
CSI UniFormat II TitleElectrical Service and Distribution
