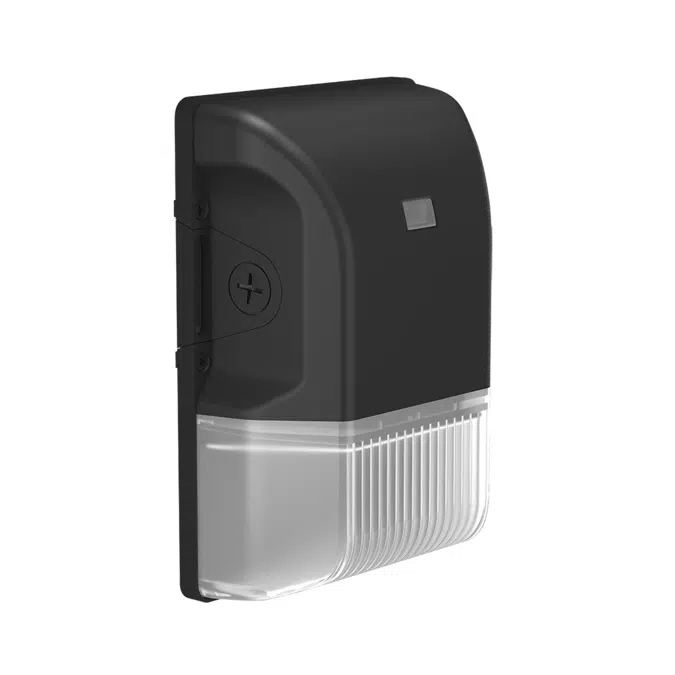

BRISK17 Field-Adjustable Ultra-Economy Wall Pack Entry Light

KEY FEATURES

High output, high efficiency, Ultra-economy entry light
Available field-adjustable CCT (3000K/4000K/5000K)
Available wattages: 20W and 30W
Comes with integrated photocell
0-10V dimming standard
UL listed for wet locations
5-year limited warranty

Cпецификация

- COMPLIANCE
  - DLC Listed
    This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
    DLC Product Code: PLLLMBSHJ6UX (BRISK17FA20)
    DLC Product Code: S-J0FC5L (BRISK17FA30)
- PERFORMANCE
  - Lifespan
    100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
- LED CHARACTERISTICS
  - LEDS
    Long-life, high-efficacy, surface-mount LEDs
- ELECTRICAL
  - Drivers:
    Constant Current, Class 2, 120-277V, 50/60 Hz
    20W: 120V: 0.20A, 208V: 0.10A, 240V: 0.08A, 277V: 0.07A
    30W: 120V: 0.26A, 208V: 0.15A, 240V: 0.13A, 277V: 0.12A
  - Photocell
    120-277V compatible, Integrated Button Photocell included.
  - Note
    All values are typical (tolerance +/- 10%)
- FIELD ADJUSTABLE
  - Color temperature selectable by 3000K, 4000K, and 5000K
- CONSTRUCTION
  - IP Rating
    Ingress protection rating of IP65 for dust and water
  - Cold Weather setting
    Minimum starting temperature is -40°C (-40°F)
  - Maximum Ambient Temperature
    Suitable for use in up to 45°C (113°F)
  - Housing
    Precision die-cast aluminum housing and door frame
  - Mounting
    Hinged wiring access and conduit entries on the back sides, top, and bottom make installation a snap
  - Lens
    Polycarbonate lens
  - Green Technology
    Mercury and UV free. RoHs-compliant components.
  - Finish
    Formulated for high durability and long-lasting color
