Geopietra

Scaglia - Profile panel

MODEL | SCAGLIA P16
Dry-Stack Joint

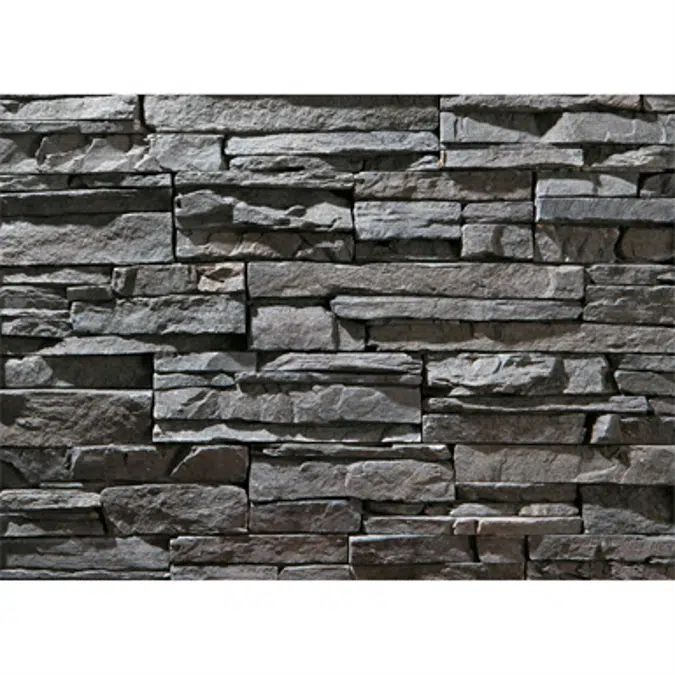

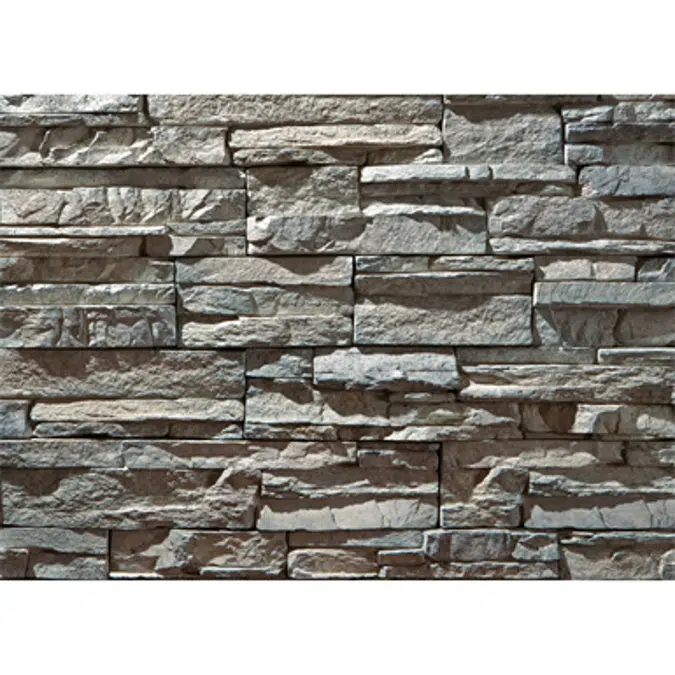

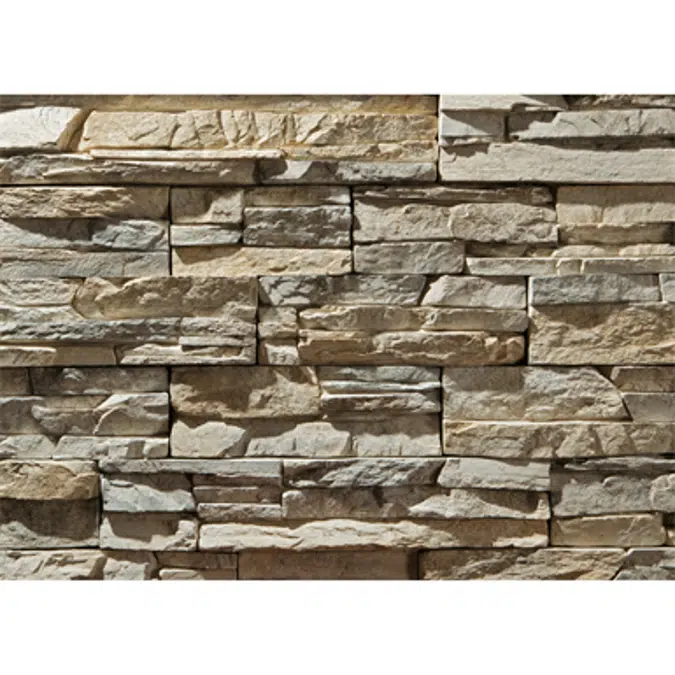

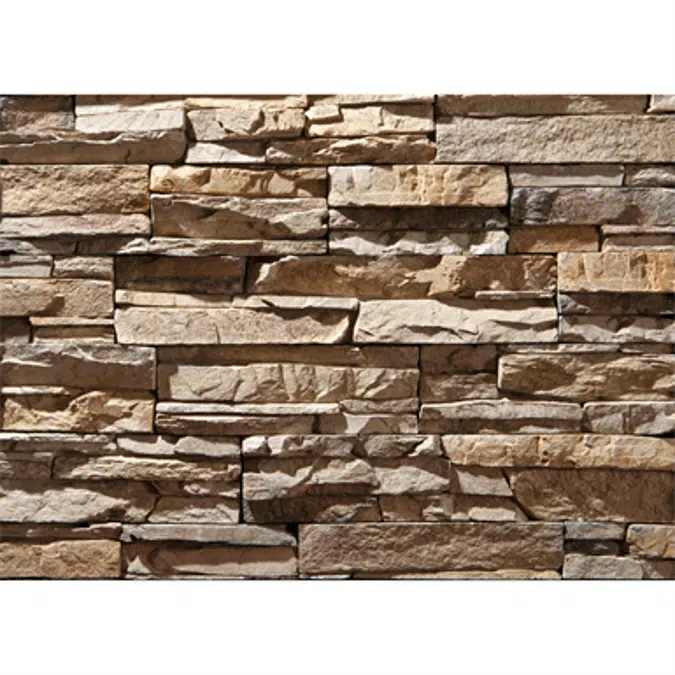

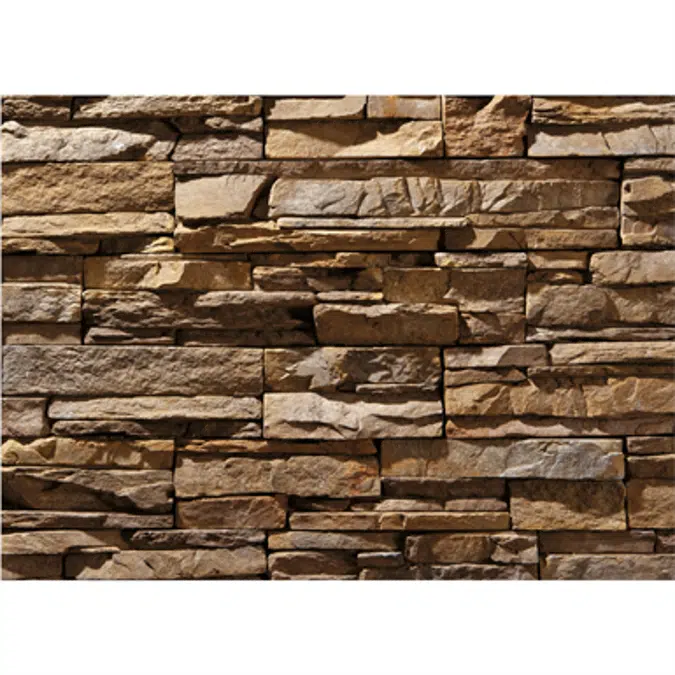

Available in 6 colours
Size: Panel HEIGHT 10 cm Flat LENGTHS 20, 30 and 50 cm - angles 20 and 30 cm
Thickness: 2-5 cm

BIM IMAGES SIZE: base 80 cm

Due to their structure and colouring, the CASTLE and the PANEL models CANNOT be mixed together or with other items in the collection. Except for the P34 CREATIVO model.

CASTLE PROFILE.
The Castle profile is made from a series of square-shaped models. Volcanic or calcareous stone featuring detailed texture, hard stone with chipped outlines and quality sculpted processes. The completely dry installation shows the stone joints and pattern, creating classic, linear walls with a contemporary vibe.

INNOVATIVE MATERIALS AND INSTALLATION METHODS.
Geopietra® has always been committed to developing innovative materials and installation methods, obtaining endorsements for its
products, providing the best guarantees for use on premises, and ensuring the safety and efficiency of the property solutions created.

CERTIFIED SUCCESS.
• LEPIR II FIRE TEST: 2018 | France | murogeopietra® on EPS cladding meets the non-propagation criteria of the fire beyond the next floor and obtained the permission to cover R+2 public building.
• ANTI-SEISMIC TESTING UNI EN 1998-1: 2016 | France | The regulation establishes the basic performance requirements applicable
to buildings and civil engineering works in seismic areas. murogeopietra® is recognized as the first anti-seismic reconstructed stone wall in Europe, even on external thermal insulation.

INSTALLATION AND EVOLVED MATERIALS IN A SINGLE INTEGRATED SYSTEM.
Murogeopietra® is marketed as a single integrated system. It uses the Geocoll levelling glue system, state-of-the-art laying of the Geopietra® cladding on a previously prepared base and the application of the GEOBI two-component mortar. Geopietra® makes the most believable eco-friendly manufactured stone veneer in the world. Geopietra® is a mix of Portland cement concrete, lightweight aggregates and permanent mineral oxide-based colours. The stone is manufactured using natural raw materials only and each stone is coloured by hand with great care and transformed into a product of superior craftsmanship, which is absolutely unique.

Cпецификация

Supply and installation of murogeopietra® veneer, a guaranteed integrated system, consisting of: Geopietra® manufactured stone and / or brick composed of lightweight aggregates, in order to be light, breathable and with low thermal conductivity. Model ________________________________ Shades ____________________ to cover sq/m _____________ of wall and ml ____________ of corners. Murogeopietra® SCAGLIA will be laid only in the version: DRY STACK JOINT Murogeopietra® veneer will be bonded using a specific Geocoll® system mortar, based on natural hydraulic lime, produced according to EN998, supplied for n° ___________ bags. In case of laying with JOINT, the grouting will be done using the laying system __ normal joint, __ full joint, __ over grout joint with GeoBi, a special two-component system mortar, available in (fine or coarse) _____________ grain and (sabbia, marche, toscana, grigio chiaro, grigio, arena)____________ colour , supplied for n° _______ bags. The integrated system must comply with the following thermo-technical parameters: - coefficient of thermal conductivity (λ) not exceeding 0.1866 W / mk; - coefficient of resistance to vapour diffusion (μ) not exceeding 26.4; - density (δ) not exceeding 1,200 kg / m3. A special Geopietra Technical Manual will be attached to the supply, showing the operations of assessment and preparation of the laying base, use of the adhesive, laying and grouting, which the installer must follow. If the user does not respect all the laying conditions indicated in the Technical Manual (wich can be downloaded on the website www.geopietra.com in the Technical Manual section) and does not use the integrated murogeopietra system, all forms of guarantee will be void and no responsibility will be chargeable to the seller.

Техническая спецификация

Уникальная ссылкаScaglia-Profile-panel
Тип продукцииProfile-panel
Группа продукцииScaglia
ТипОбъект (один объект)
Дата публикации2019-12-23
Номер версии2

Ссылки

Ссылка на продукциюhttps://www.geopietra.com/manufactured-stone/manufactured-stone-walls/panel/scaglia
Инструкции по монтажуhttps://www.geopietra.com/manufactured-stone-support/stone-covering-installation-manuals/9-wet-wet-installation-double
Видеоинструкцииhttps://www.youtube.com/watch?v=3r1FkQ6UnhY
Сертификация продукцииhttps://www.geopietra.com/manufactured-stone-support/stone-covering-data-sheets
Техническое описаниеhttps://www.geopietra.com/sites/default/files/2021-10/01_SPEC_PRODUCT_ENG_0.pdf

Связанные

Основной материалБетон
Разработано вИталия
Страна-производительИталия

Классификация

Категория BIMobjectСтены - Облицовка
Классификация IFCПоверхность
Название по ССКПУ ООНWall finishing materials
Код ССКПУ ООН301615
Код Uniclass 2015Ss_25_20_85
Описание Uniclass 2015Stone cladding systems
Код CSI MasterFormat 201406 61 13
Заголовок CSI MasterFormat 2014Simulated Stone Fabrications
Код CSI UniFormat IIC3010
Заголовок CSI UniFormat IIWall Finishes
