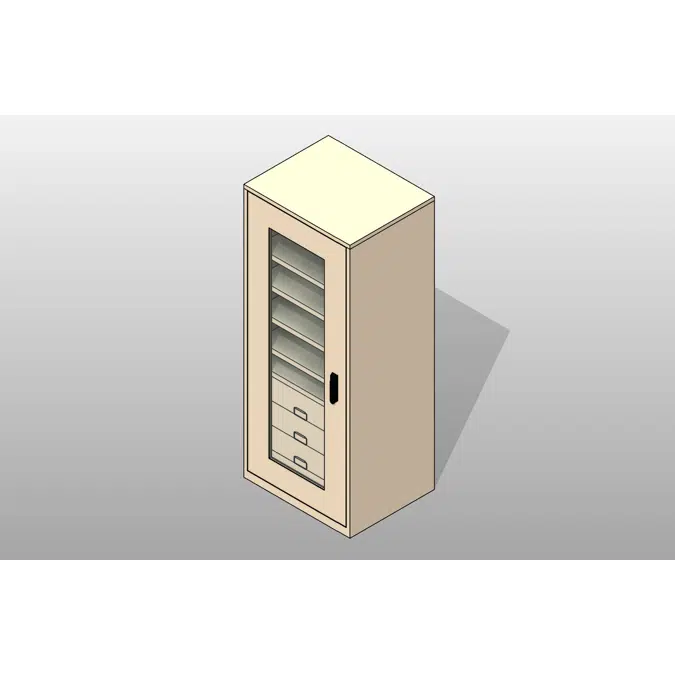

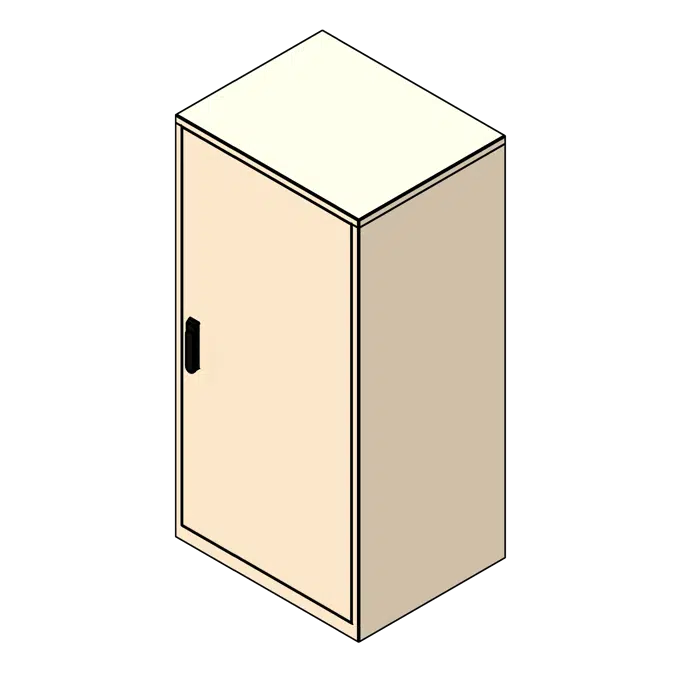

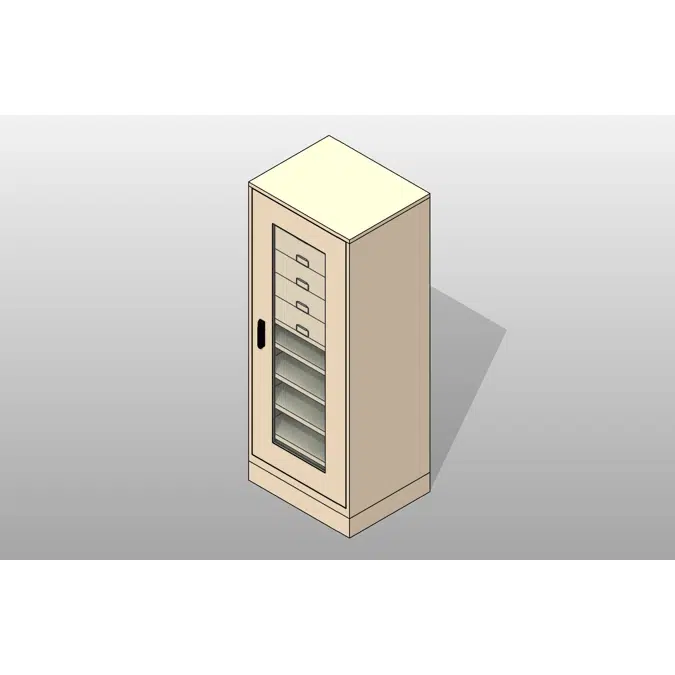

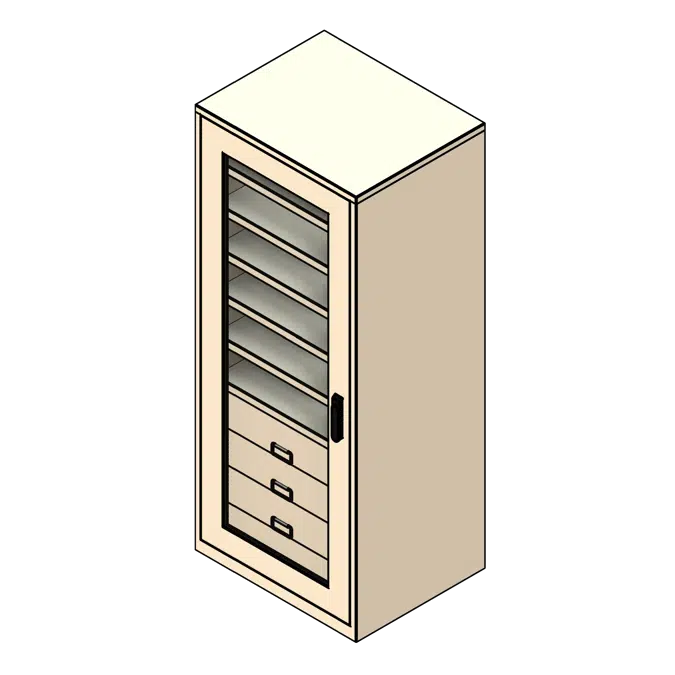

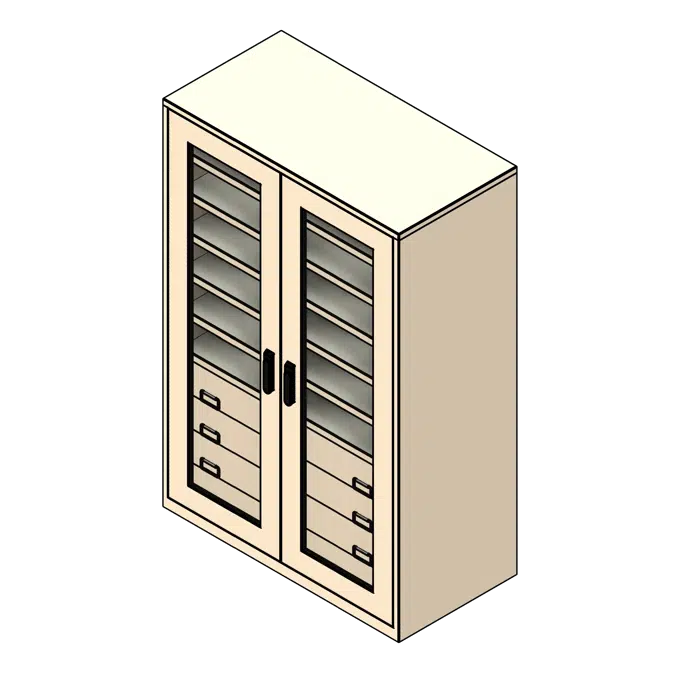

Shelves and Drawers Museum Preservation Cabinet

Museum Preservation Cabinet with Shelves and Drawers

This museum cabinet is ideal for any collections that require protection from the elements. Utililizing a combination of shelves and drawers to accomplish any storage need. Simple assembly and durable materials ensure this storage solution will stand the test of time.

Standard sizes
Widths: 30", 36", 42", 48", 60"
Depths: 18", 24", 30", 36"
Heights: 42", 60", 72", 84", 96"

Ideal for museums and similar applications
Customizable number of shelves and drawers
Optional casters can be added or removed to create a mobile storage device
Provides protection agaisnt external elements such as water, fire, and smoke

The museum storage cabinet is designed to be highly flexible and adaptable with every Revit model built to reflect its real world counterparts as closely as possible. Use the built in shelf and drawer options to visualize your storage solutions.All shelves, drawers, and doors are assembled without the use of nuts, bolts, or clips. All shelving and drawer units are designed for expansion and are available as mobile-ready for easy conversion. Available full-height center dividers allow for different drawer or shelving configurations on each side of the divider. Available depths make it an ideal choice for any collection or museum applications.

Opis

ShelvesShelves are constructed of 18-gauge steel, have a height of 1.250 inches and support a uniformly distributed load of 100 pounds. Shelves are installed using clips that allow for removal or adjustment of shelves without the use tools. Shelves available in full or half-width sizes. Nominal Shelf Dimensions
- Width: 30 inch to 60 inch sections used to meet project requirements
DoorsDoors are welded construction with a minimum 16-gauge cold rolled steel and reinforced to prevent binding, warping, racking, or twisting. All corner seams are mig-welded (fully filled) and ground smooth to provide aesthetically pleasing, sealed, and square corners. The doors and cabinet are designed to allow removal of all contents when the cabinet doors are opened at 90 degrees. BaseCabinet include an integrated base which houses leveling system and provisions required for stacking and bolting or anchoring of cabinet to a mobile carriage or stationary base. Forklift and caster bases are also available.Accessories
- Casters
- Glass Doors
- Garment Rod
Finishes Paint finish, low pressure laminate, high pressure laminate,acrylic finish, or non-off-gassing powder coated steel (standard).

Specyfikacja techniczna

Nr referencyjnySSG_Cabinet_Museum_Preservation_Combo_PCS
Rodzina produktuMuseum
Grupa produktuPreservation, Flat File, Security
TypObiekt (jeden obiekt)
Data publikacji2021-03-13
Numer edycji1

Linki

Url produktuhttps://fetchbim.com/catalog/product/view/id/3248
Opis technicznyhttps://app.fetchbim.com/Family/65b83f33-7eb9-4a9b-854a-60ebe34a60a4/File/PDF-SpecManual

Dodatkowe informacje

Materiał głównyStal malowana proszkowo

Klasyfikacja

Kategoria BIMobjectMeble - Półki i regały
Klasyfikacja IFCMeble
CSI MasterFormat 2014 Code10 51 13
CSI MasterFormat 2014 TitleMetal Lockers
OmniClass Number23-21 11 11
OmniClass TitleCommercial Storage Units
CSI UniFormat II CodeE20
CSI UniFormat II TitleFURNISHINGS
