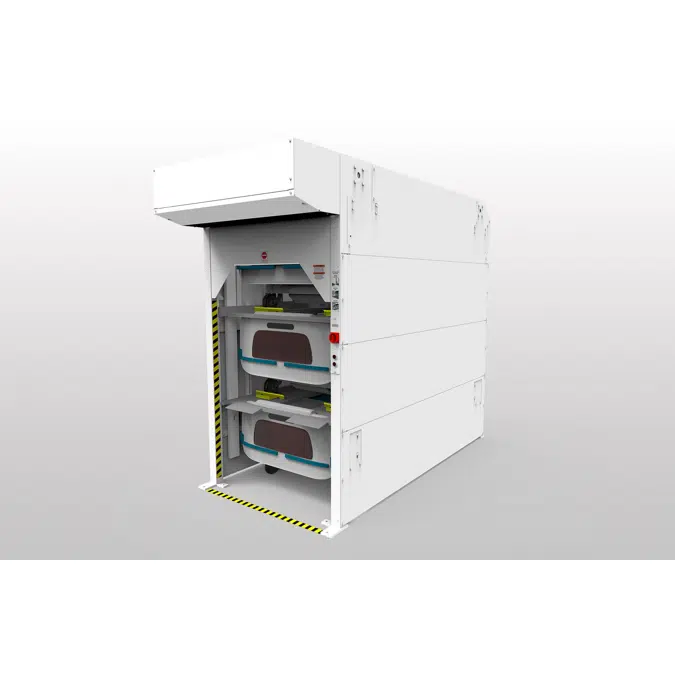

3 Position Heavy Duty Hospital Bed Lift

Designed for beds up to 900 lbs
Accomodates beds up to 44.5" W x 95" D x 32" H
Vertically stacks and stores 3 hospital beds

The hospital bed storage system is designed to vertically stack and store hospital beds off the floor. By increasing the hospital's capacity, organization, and downtime, hospitals will meet the JCAHO standard for bed storage while also increasing the number of beds available at any time.Capacity for up to 5 hospital beds per bed lift.Reduces hallway clutter to address NFPA 101 - Life Safety Code.Saves up to 70% of floor space per unitBeds are easily accessible, reducing required time to retrieve hospital beds.Provides a safe and dedicated storage location for beds.Easy to use semi-automatic system lowers and raises beds at the push of a button.

Opis

Tech Specs
- Controls: Forward/Reverse push buttons
- Capacity: 600 lbs | 272 kg capacity per position. Designed for hospital beds with a vertical pitch of 27"
- Lifting Speed: Max 11.7 seconds per position
- Motors: 1 x 1 - 1/2 HP
- Weight: 1743 lbs
- Loading Position: Designed to load using the width of the bed which requires less floor space for loading. This is for spaces with a unique profile and space constraints.
- CE & cCSAus Mark
- OSHPD (Seismic) available upon request
Electrical Specs
- 200V, 1PH, 15 Amp (works with 208V)
- Bed lifts come with all necessary hardware to plug directly into dedicated outlet upon install, per electrical specifications
- Electrician can decide on-site whether or not to hardwire
Add-ons
- Loading Ramps: A single unit recieves a single set of loading ramps. Multiple unit orders receive two sets of loading ramps. Extra ramps are available upon request for an additional fee.
- Platform Inserts: Fills platform profile for stretchers and other narrow base applications
- Vertical Security Gate: Roll down security gate to prohibit non-authorized access
- Anti-Microbial Paint: Increased protection against 99.9% of all common pathogens as well as additional properties that are resistant to mold, mildew, and fungus.

Specyfikacja techniczna

Nr referencyjnyBed_Lift_Heavy_Duty_3_Position_PCS
Rodzina produktuHealthcare
Grupa produktuSurgical, Storage, Pharmacy Casework and Exam Room
TypMontaż (wiele obiektów)
Data publikacji2021-08-21
Numer edycji1

Linki

Url produktuhttps://fetchbim.com/catalog/product/view/id/56

Dodatkowe informacje

Materiał głównyStal malowana proszkowo

Klasyfikacja

Kategoria BIMobjectMeble - Półki i regały
