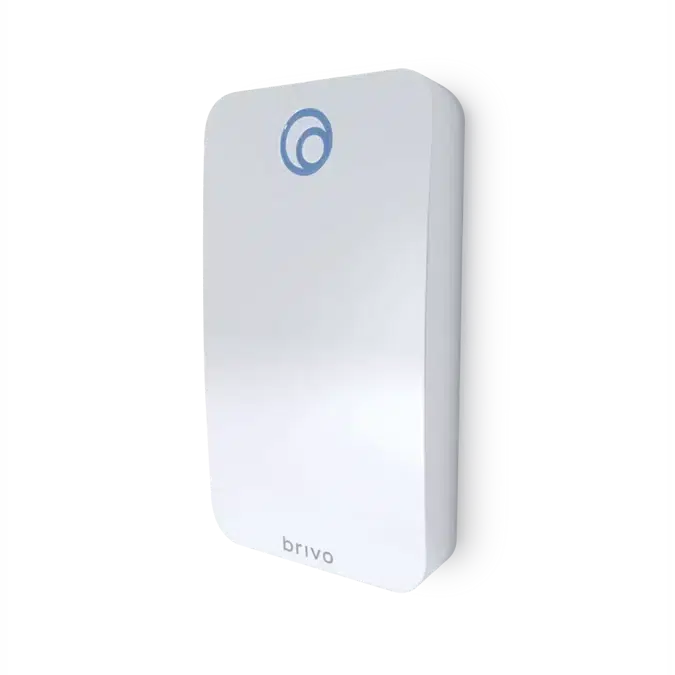

Brivo ACS100 Control Panel/Credential Reader

Brivo ACS100 Control Panel/Credential Reader

The Brivo ACS100 is a combination control panel and credential reader.

The Brivo ACS100 is a supporting component of your Brivo security platform. The Brivo ACS100 combines a multi-credential reader with a powerful access control panel in a single device. When used with Brivo Mobile Pass, the ACS100 allows touchless entry.

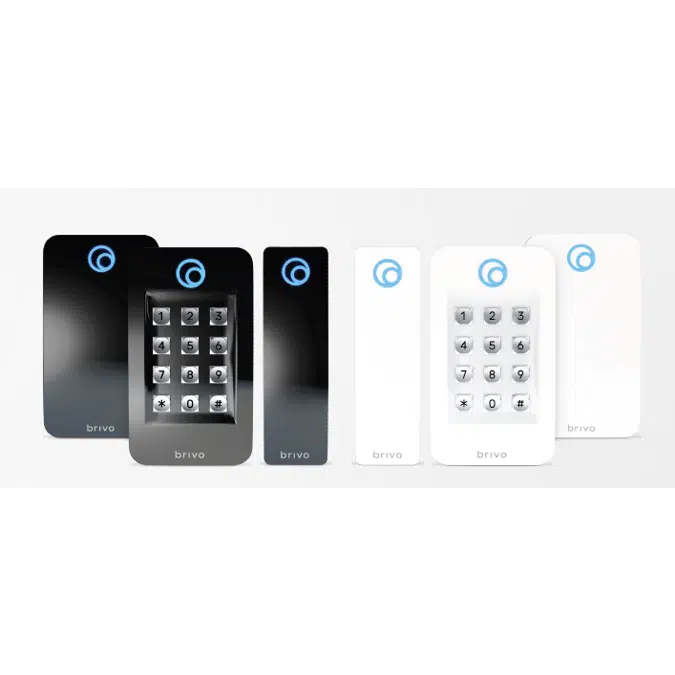

The Brivo ACS100 is indoor/outdoor rated (IP55) and available in mullion, single gang and keypad versions.

APPLICATIONS & BENEFITS

Simplifies Installation
Supports a single wire installation for network connection and powering devices at the door.

Enables Modular Expansion
Start with one door or hundreds and enjoy full functionality from the start. Add a second reader for anti passback applications.

Provides Flexibility
Supports multiple credential types including Mobile, Smart Cards, Proximity Cards and PINs. Can be powered via PoE or 12VDC input.

Industry leading security in a beautiful package
Encrypted data storage and communications in an attractive device with three form factors and two color options.

Opis

System Compatability	Compatible with Brivo Acccess and Brivo Onair
Total Number of Credentials	Unlimited credentials per ACS100-E when connected to Brivo Access.
	Up to 250,000 credentials while offline.
Mobile Credential Support	Supports Brivo Mobile Pass direct BLE connection and pulse via cloud features.
	Certain 3rd partymobile credentials are supported through pulse via cloud feature
Maximum Number of Readers	1 internal OSDP reader, 1 optional external OSDP reader
Event History	60,000 events offline from Brivo Access, unlimited events online
Inputs	1 auxiliary input, 1 door position input and 1 request-to-exit (REX) input
Output Relay	Available switched ground that can be configured as Normally Open (Normal) or Normally Closed (Energized) for maglock applications up to 3A@24VDC (when using an external power supply to power the lock solenoid).
	12VDC source present for door strike applications (no external power supply needed for the door lock relay)
Authentication & Encryption	TLS1.2+, with AES256 encryption, SHA256 certificate, 4096 bit key length.
	Secure Communication Protocol (SCP) OSDP support for OSDP reader.
Card Reader Input	1 external OSDP Reader via RS-485
Input Power	PoE (802.3af ) or 12VDC@2A

Specyfikacja techniczna

Nr referencyjnybrivo-acs100-control-panel_credential-reader
Rodzina produktuDevices
Grupa produktuControl Panels
TypObiekt (jeden obiekt)
Data publikacji2023-08-14
Numer edycji1

Linki

Url produktuhttps://www.brivo.com/products/control-panels/
Certyfikacja produktuhttps://resources.brivo.com/data-sheets/brivo-acs100-data-sheet
Opis technicznyhttps://resources.brivo.com/data-sheets/brivo-acs100-data-sheet

Dodatkowe informacje

Zaprojektowano wStany Zjednoczone
Wyprodukowano wStany Zjednoczone

Klasyfikacja

Kategoria BIMobjectElementy elektroniczne - Sterowniki
Uniclass 2015 CodePr_75_75_27
Uniclass 2015 DescriptionElectronic access control products
CSI MasterFormat 2014 Code08 74 00
CSI MasterFormat 2014 TitleAccess Control Hardware
OmniClass Number23-29 13 00
OmniClass TitleSecurity Access Controls
