Machine Enclosures : Absorptive Noise Barrier Quilted Curtains

Quilted Curtain - Sound Blankets - Reinforced
BBC-EXT-R-2 Noise Barrier/Sound Absorber Sound Blankets

BBC-EXT-R-2 offers the benefits of both a noise barrier and a sound absorber composite in one product. This BBC product consists of an exterior grade, UV resistant heavy-duty faced quilted fiberglass absorber bonded to a one-pound per sq. ft. reinforced loaded vinyl barrier. The heavy-duty facing is a 10 oz per sq yd vinyl-coated-polyester (VCP) quilted to the sound absorber rather than the standard 4.5 oz facing. Curtain panels are constructed with grommets across the top and bottom and exterior grade Velcro seals along the vertical edges.

STC = 33
NRC = .75
Facing Colors on Quilt: Gray, Tan, Black or White
Barrier Colors: Gray, Tan, Olive or Blue

MATERIAL:
Vinyl coated polyester facing on 2" quilted fiberglass & 1 lb/sf reinforced mass loaded vinyl barrier.

FEATURES:
Effective and durable absorber with mass loaded vinyl barrier option.

APPLICATIONS:

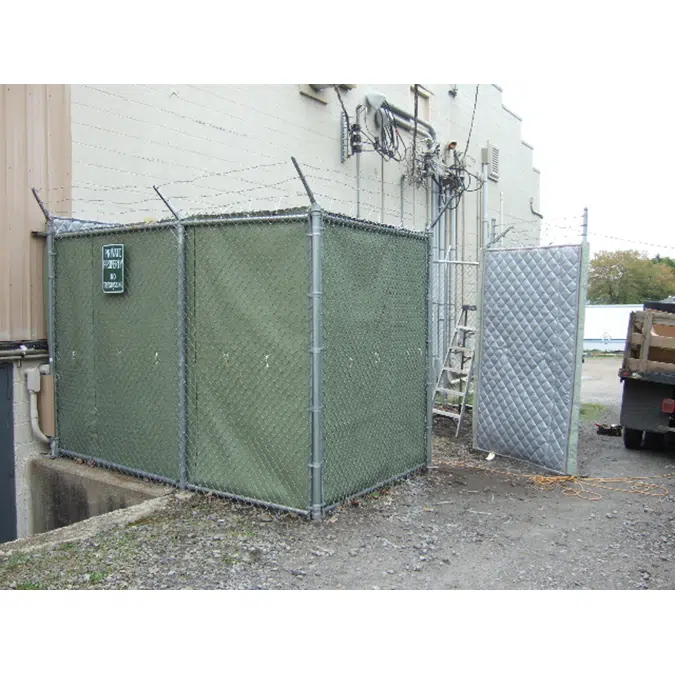

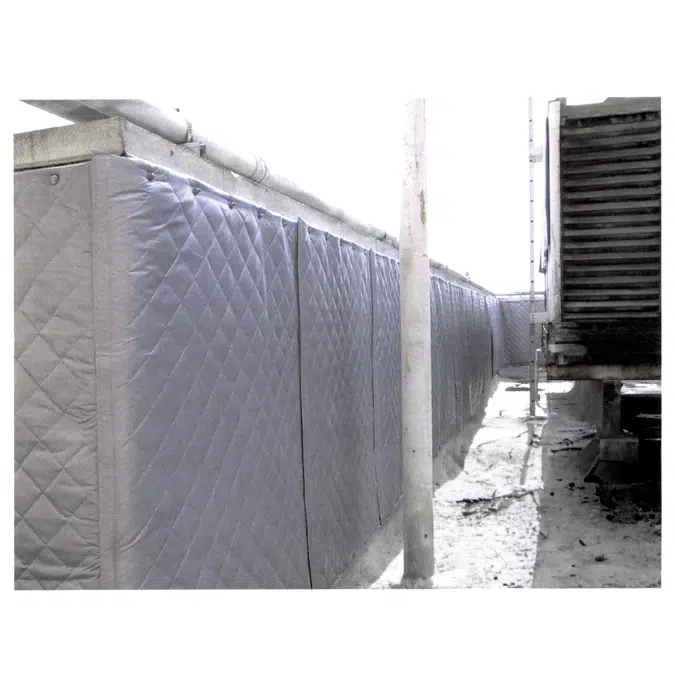

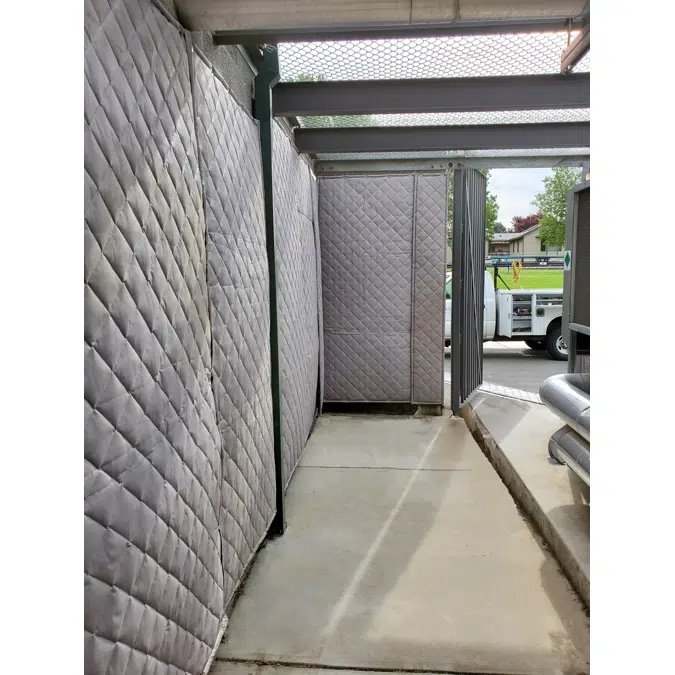

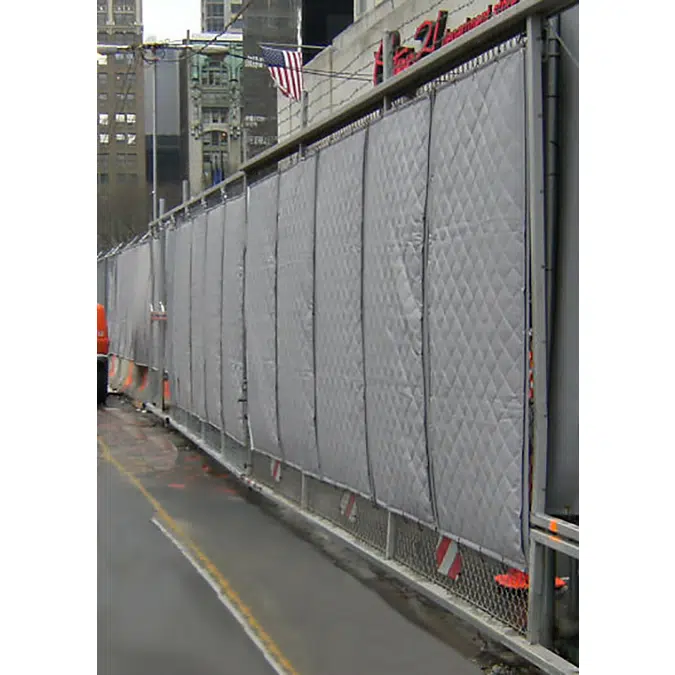

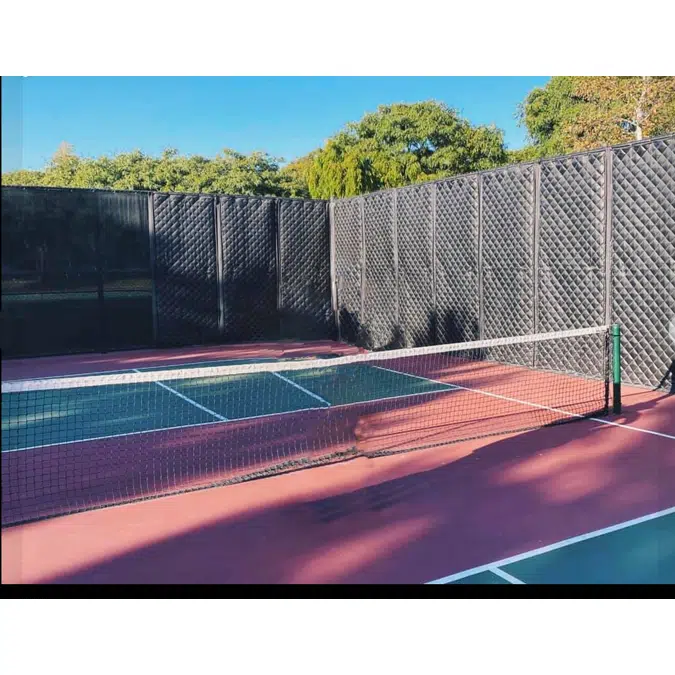

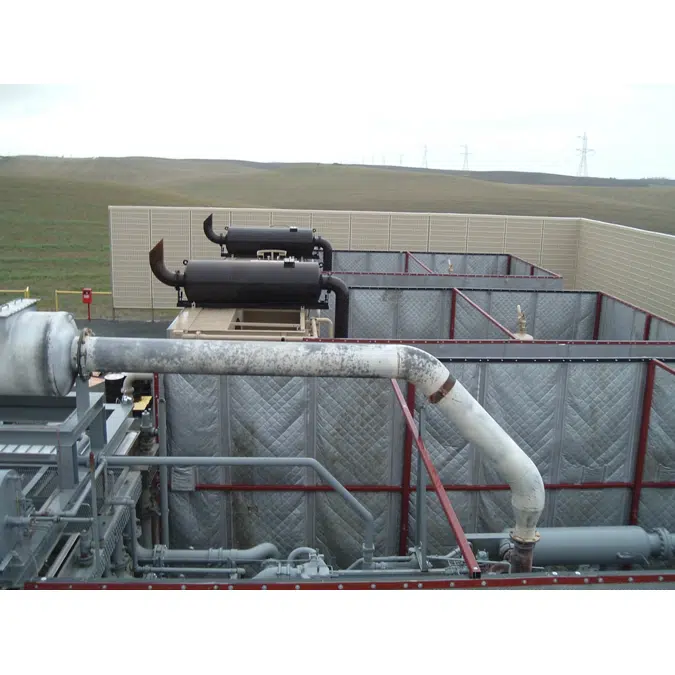

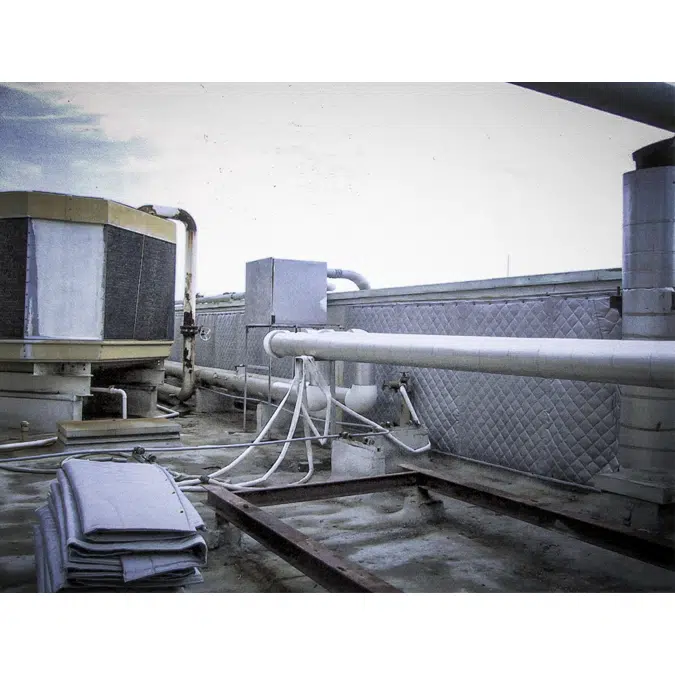

Typically used as modular curtain panels in outdoor applications where high abuse resistance or excellent durability as well as maximum longevity and noise reduction is required. Also used as sliding acoustical doors, durable acoustical jacket on fans or valves, as well as a temporary noise barrier on outdoor construction projects.

WEIGHT:
1.45 lb/sf.

THICKNESS:
Nominal 2".

SIZES:
Standard Width: 54"; Roll Length 25'.

TEMPERATURE RANGE:
-20°F to +180°F.

Specyfikacja techniczna

Nr referencyjnynst14679
Rodzina produktuBlanket Sound Isolation Insulation
Grupa produktuQUILTED CURTAIN
TypObiekt (jeden obiekt)
Data publikacji2013-08-07
Numer edycji1

Linki

Url produktuhttp://www.acousticalsurfaces.com/curtan_stop/sound_blanket.htm?d=12

Dodatkowe informacje

Zaprojektowano wStany Zjednoczone
Wyprodukowano wStany Zjednoczone

Klasyfikacja

Kategoria BIMobjectMateriały budowlane - Izolacje
Klasyfikacja IFCSufit
Uniclass 2015 CodeSs_30_25_22_01
Uniclass 2015 DescriptionAcoustic baffle suspended ceiling systems
CSI MasterFormat 2014 Code09 84 00
CSI MasterFormat 2014 TitleAcoustic Room Components
OmniClass Number23-15 13 21 35
OmniClass TitleAcoustical Ceiling Treatment
CSI UniFormat II CodeC30
CSI UniFormat II TitleINTERIOR FINISHES
