SPECIFICATIONS
System
Frequency Range (-10 dB) 86 Hz - 18 kHz
Frequency Response (±3 dB) 109 Hz – 15.3 kHz
System Power Rating
Full Range 800 W Continuous Pink Noise (3200 W peak), 2 hrs
400 W Continuous Pink Noise (1600W peak), 100 hrs
Bi-amp LF 800 W Continuous Pink Noise (3200 W peak), 2 hrs
400 W Continuous Pink Noise (1600W peak), 100 hrs
Bi-amp HF 150 W Continuous Pink Noise (600 W peak), 2 hrs
50 W Continuous Pink Noise (200 W peak), 100 hrs
Maximum Input Voltage
Full-Range 80 V Rms (2 hrs), 160 V peak
Bi-Amp LF 80 V Rms (2 hrs), 160 V peak
Bi-Amp HF 50 V Rms (2 hrs), 135 V peak
Maximum SPL (1m) 131 dB Cont. Ave (2 hrs), 137 dB Peak
Sensitivity
Full-Range 102 dB (85 Hz – 19 kHz)
Bi-Amp LF 100 dB (85 Hz – 950 Hz
Bi-Amp HF 107 dB (950 Hz – 19.2 kHz)
Coverage Pattern (-6 dB) Horizontal: 100° (+5°/-15°, 1.5 kHz to 15 kHz)
Vertical: Varies with array size and configuration
Impedance
Full-Range 8Ω, 6.7Ω min @ 200 Hz
Bi-Amp LF 8Ω, 6.9 Ω min @ 230 Hz
Bi-Amp HF 16 Ω, 15.9 Ω min @ 1.1 kHz
Amplifiers Crown DCi Family with DSP on-board
Recommended:
Crown DCi 2 | 1250N
Crown DCi 4 | 1250N/ND/DA
Crown DCi 2 | 2400N
Crown DCi 4 | 2400N
Transducers
Low Frequency Driver 2 x 2261FF, 254 mm (10 in) diameter, each with two 76 mm (3 in) diameter voice coils, Neodymium Differential Drive®, Direct Cooled™
High Frequency Driver 3 x 2415K, D2 Dual Diaphragm Dual Voice Coil Compression Drivers, each with two 38 mm (1.5 in) dia. Voice Coils; 21 mm (0.8 in) exit
Physical
Enclosure Material Fiberglass shell, gelcoat finish, with 18 mm Birch plywood internal bracing.

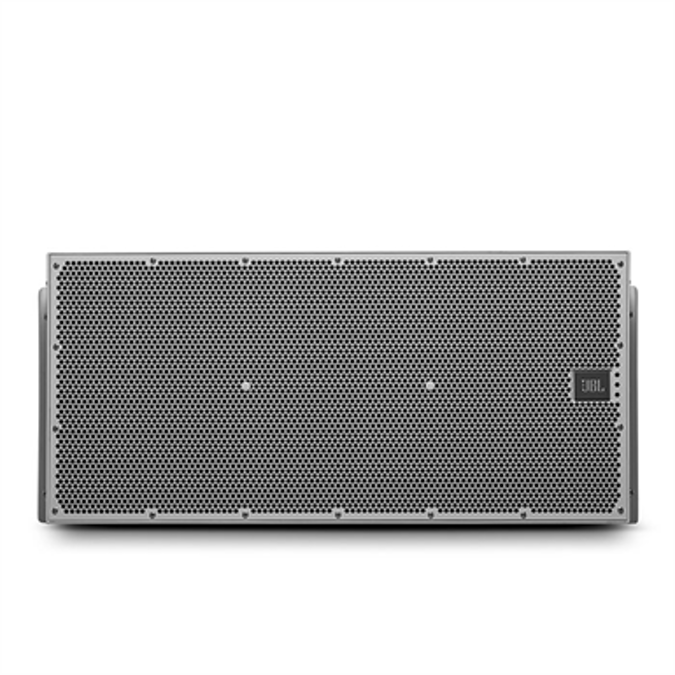

Grille Powder coated 14 gauge hex-perforated steel with zinc under-coating, backed with acoustically transparent cloth and hydrophobic screen.
Inter-Enclosure Angles VLA-C2100 to VLA-C2100: 2.4°, 3.8°, 6.0°, 9.5°, 15° using VLA-C2100 Bracket Plate (included with VLA-C2100)
VLA-C2100 to VLA-C265 (either model on top/bottom): 1.9°, 3.0° using VLA-C2100 Bracket Plate (included with VLA-C2100) and 4.7°, 7.5°, 11.9° using VLA-C265 Bracket Plate (included with VLA-C265)
VLA-C2100 below VLA-C125S Subwoofer (VLA-C2100 cannot be connected above C125S): 0°, 7.5° using VLA-C125S Bracket Plate (included with VLA-C125S)
Environmental IP-55 rating per IEC529 (dust protected and protected against jets of water)

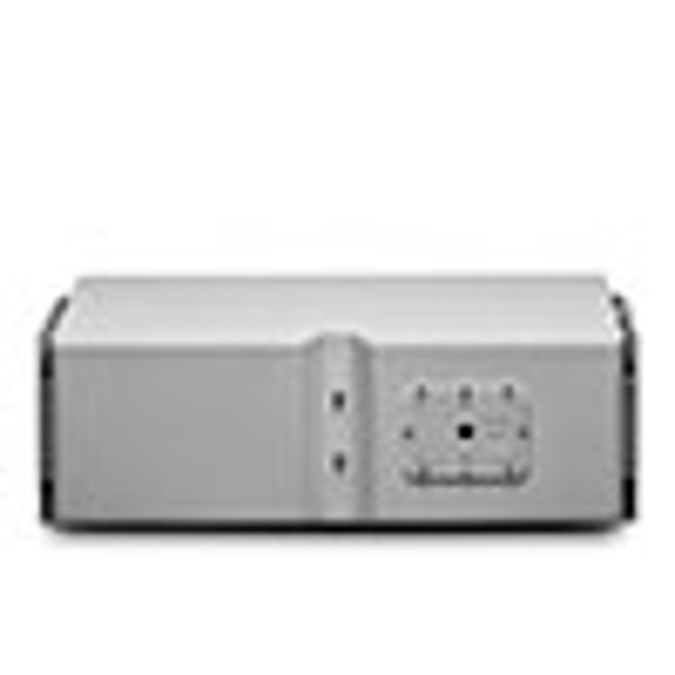

Terminals CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9mm (0.375 in) spade lugs. Touch-proof covers
Colors -GR: Gray (similar to Pantone 428C), -BK: Black
Dimensions (H x W x D) 381 x 848 x 460 mm (15.0 x 33.4 x 18.1 in)
Net Weight (ea) 37.7 kg (83 lbs)
Shipping Weight (ea) 44.0 kg (97 lbs)
Included Accessories 2 x VLA-C2100 Bracket Plates
8 pcs. M10 x 35 mm stainless steel bolts (1.5mm pitch, 6 mm hexdrive) for attaching Bracket Plates
2 pcs. Plastic Trim Cover Panels for Bracket Plates, each attaches via
4 pcs (8 total) 3-32 x ½” trusshead, phillips-drive, stainless steel bolts
Optional Accessories VLA-C-SB Suspension Bar Kit for the array, includes 2 identical Suspension Bars (for top/bottom), 4 pcs ¾-inch Class 2 Screw Pin Shackles (must use 2 Shackles for each Suspension Bar, located at end channels, not in the center).
