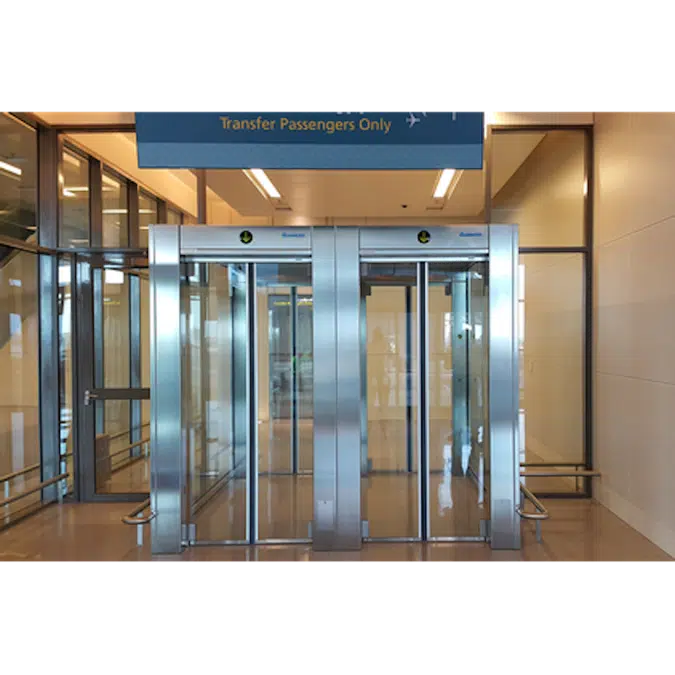

PasSec

Technical Specifications

Drive

High reliablity DC motor 5 speed settings

Materials

• Casework: Mild steel and aluminium painted RAL9006

• Moving panels: 12mm frameless and structural

toughened glass

• Side panels: 10mm toughened glass infill (laminated

option available)

Operational Modes

Entry: Free

By key selector, the PasSec can be operated in four

modes:

• Automatic: Unidirectional in the exit direction only

• Interlocking: Unidirectional controlled passage (HSW)

• Maintenance: No control in either direction

• Locked: Walkway closed and locked

By means of remote inputs, it is possible to select

automatic, interlocked and locked modes, as well as

operate both entry and exit doors.

Passage Sensors

Different sensors analyse the movement of passengers,

detect the direction, position of travel and activate the

doors accordingly. Should passage in the reverse direction

be detected, the sensors will instruct the doors to close

and trigger an alarm. Sensors detect left luggage.

Controlling Unit

Gunnebo NEP controller 24Vdc

User Interface

• 7 relays with different sets of status flags

• 8 inputs, to control by remote the operating mode:

RS485, RS232 (only for debug)

• Local and remote diagnostic alarm display facilities

• Adjustable parameter control via User Interface, i.e.

speed timeouts, etc.

Alarm Conditions

Alarm triggered in case of door obstruction, wrong way

usage, and system diagnostic failure.

Technical Data

Power Supply 115/230Vac 50/60Hz

Power Rating 600VA peak / 100VA standby

Operating temperature

5°C to 45°C 95% RH noncondensing

Flow Rates

50 to 100 passages per minute

depending upon passenger

speed of travel

Features

• 650 and 950mm clear walkways to comply with disability

legislation

• Free passage, in transit anti-return, wrong way detection

and left item detection (depending upon model chosen)

• Interlock function (HSW only)

• Stainless steel and other finish options

• Fail lock or fail safe configuration (factory set up)

• Local and remote control override

• Traveller status light indicators

• Audio synthesizer for alarms and prerecorded messages

Benefits

• Reduction in staffing costs

• Superior anti-return detection

• Left luggage detection (HSW)

• Unobtrusive design combined with highly glazed

aesthetic

• High visibility of traveller progress

Applications

• Airports

• Seaports

• Museums
