Standard: LPS 1175 D10 (SR4) Issue 8 (also rated to E3 & G1), BS1722-14: 2017, BS EN ISO 1461:2009, BS EN 13438:2013
Secured by Design - Police Preferred Specification

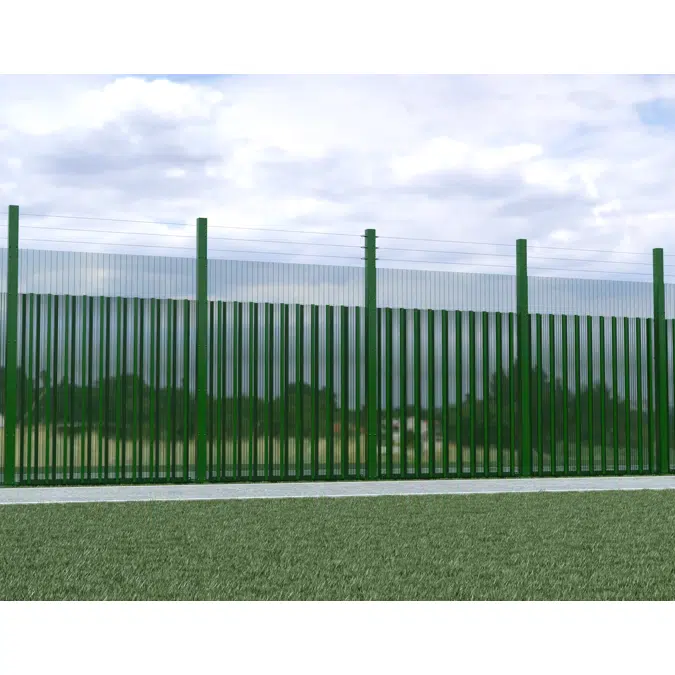

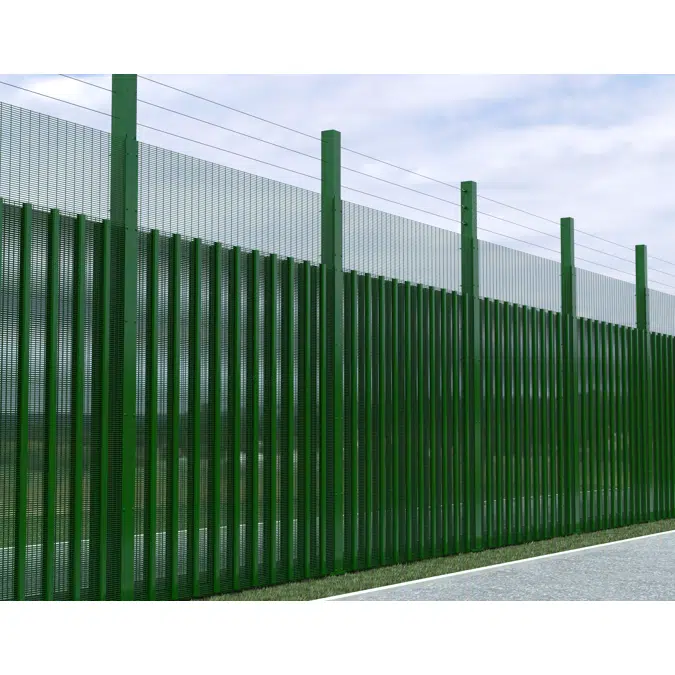

Product Reference: CLD Securus S4 358 Rigid Mesh Panel System
Panel type: Mesh and wire. Double layered mesh cassette system. Galvanised and powder coated to minimum 80 microns dft.
Mesh and wire. Double layered mesh cassette system. Galvanised and powder coated to minimum 80 microns dft.
Panel width: 2520mm
Wire diameter: 4mm
Mesh size: 76.2 x 12.5 mm mesh
Available heights
Select as required: 2880mm to 5000mm
Nominal height: 2.8m to 5m
Finish: Polyester powder-coated to minimum 80 microns.
Any RAL colour
Top edge projection: nil
Panel installation: Bottom of panel minimum 300mm below ground.
Security topping
options: Barbed and razor wire, cranked and straight
Posts: SHS, galvanised after manufacture and polyester powder-coated to match fencing
Post dimensions: 120mm x 120mm
Maximum post
Centres: 2530mm +/- 9mm
Fixings: 100mm x 5mm full length clamp bar. M8 case hardened stainless steel self-tapping screws and M8 stainless steel cup square bolt (min 160mm)
Foundations: Set posts in holes minimum 450mm square x 800mm deep.
Note: Contractor/ client is responsible for the foundation size suitable for the ground conditions and fence height.
Warranty: Minimum of 15 years against manufacturing defects.
Notes: All dimensions are nominal, for further information please contact CLD Fencing Systems.
Information is correct at time of production. As part of our policy of continuous improvement, we reserve the right to alter product specification without notice.
To be read in conjunction with Preliminaries/General conditions
