Standard: BS1722-14: 2017, BS EN ISO 1461:2009, BS EN 13438:2013

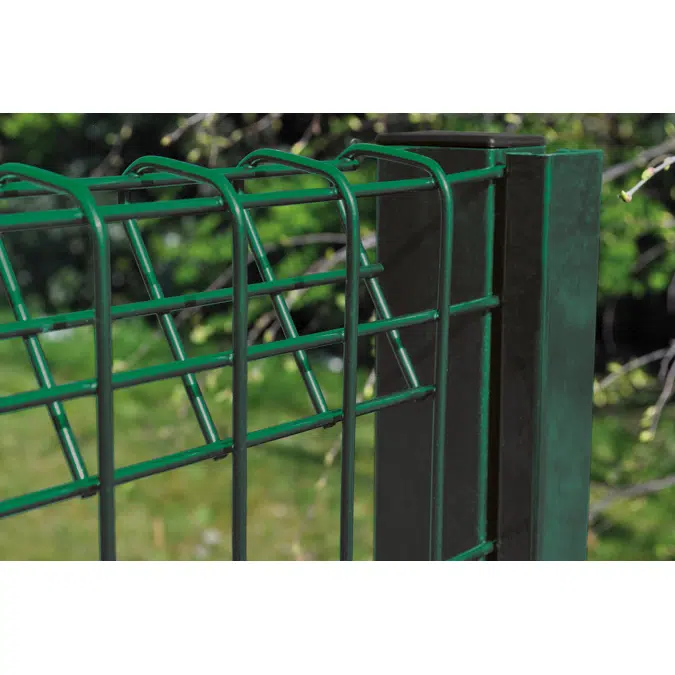

Product Reference: CLD RoTop Rigid Mesh Panel System
Panel type: Mesh and wire, galvanised and polyester powder-coated to a minimum of 60 microns
Panel width: 3000mm
Wire diameter: 5mm diameter wire
Mesh size: 150mm 50mm mesh
Height: 900mm, 1200mm, 1500mm or 1800mm
Nominal height: 0.9m, 1.2m, 1.5m or 1.8m
Finish: Polyester powder-coated to minimum 60 microns.

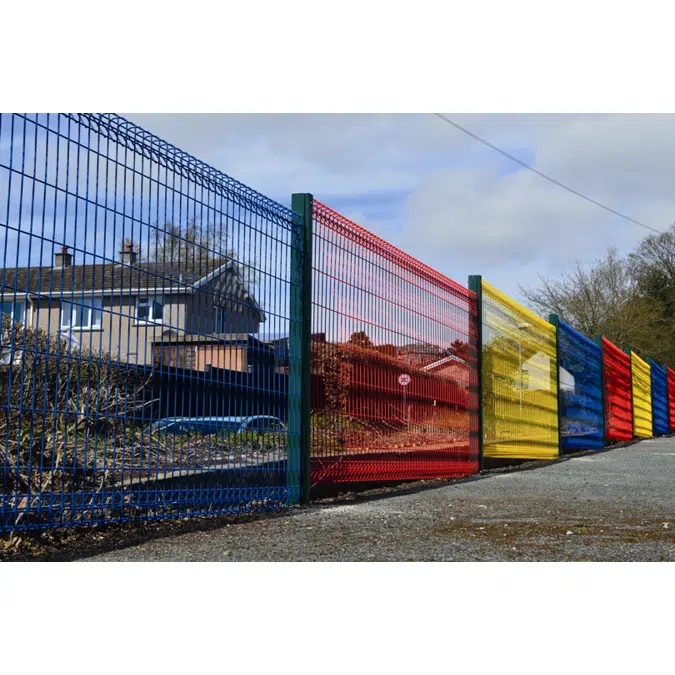

Any RAL colour.
Top edge projection: nil - flush
Panel installation: Bottom of panel maximum of 50mm above ground
Security topping n/a
Posts: 60mm x 40mm RHS or SHS, depending on application – please contact CLD Fencing Systems for full details - galvanised after manufacture and polyester powder-coated to match fencing
Post dimensions: Depending upon application
Maximum post 3010mm
Centres:
Fixings: 41mm x 21mm channel clamp bar with SafeTFix fixings. Please contact CLD Fencing Systems for full details.
Foundations: Set posts in holes 300mm diameter x 800mm deep (adjust according to fence height), filled not less than half the depth with concrete. Note: contractor/ client is responsible for the foundation size suitable for the ground conditions
Warranty: Minimum of 15 years against manufacturing defects.
Notes: All dimensions are nominal, for further information please contact CLD Fencing Systems.
Information is correct at time of production. As part of our policy of continuous improvement, we reserve the right to alter product specification without notice.
To be read in conjunction with Preliminaries/General conditions
