3in1 solar roof window GGLS

Name: 3in1 solar roof window GGLS
Rating: 5 (9 reviews)

5.0(9 recensioni)

VELUX 3in1 solar roof window GGLS is solar-powered and centre-pivoted. It is an all-in-one window equipped with a rain sensor and is based on the design of roof window GGLS.

3in1 solar powered roof window GGLS is a wireless solution which together with three windows in one frame allows for fast and easy installation. The new daylight solution gives you an extensive view, increased influx of daylight and full flexibility for ultimate control and convenience.

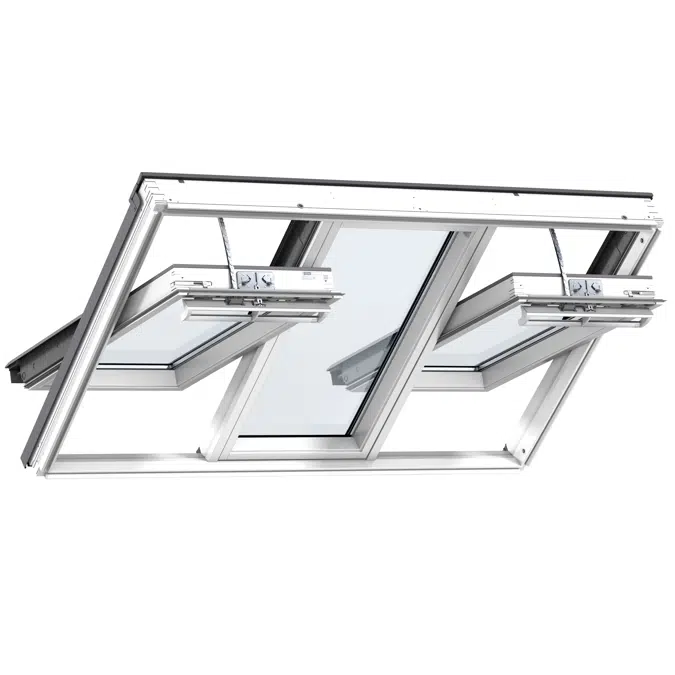

3in1 roof window GGLS is centre-pivoted and has tree sashes, a fixed and two openable, in one frame.
The ventilation flap allows fresh air to enter the room through a dust and insect filter.

The frame and sash made of laminated pine wood and ventilation flap made of pine wood are all finished with triple coat. The exterior of the frame and sash is metal-clad and therefore maintenance-free. The window is equipped with an insulating glass unit.

Window Sizes :	External frame W x H mm:	Effective Daylight area :m²	Geometric free area open: m²
FFKF06	1880 x 1178	1.41	0.54
FFKF08	1880 x 1398	1.74	0.66

Voce di capitolato

Be aware that for background ventilation the values are pr. openable sash

Background Ventilation (via Ventilation flap)

Sizes
: Ventilation
capacity at 4Pa
: at 8Pa
: at 10Pa
: at 20Pa
:
FFKF06
& FFKF08
1 ventilation
flap open
4.8 l/s
6.9 l/s
7.8 l/s
11.3 l/s

Ventilation
: Equivalent
Area : mm²
Geometrical Free
Area : mm²
1 ventilation
flap open
3100
3100

Finishes:

Internal -
- White-painted finished with triple coat
  White Paint (NCS standard colour :S 0500-N, nearest RAL standard colour: 9003)
External -
Maintenance-free cover parts.
- Aluminium, dark grey (NCS standard colour: S 7500-N, nearest RAL standard colour 7043).
- Untreated Copper

Specifiche tecniche

Rif. UnicoGGLS-31S
Famiglia di prodottoNew standard
Gruppo di famigliaRemote or ACTIVE operated
Numero di versione1

Links

Link al Prodottohttps://contenthub.velux.com/api/public/content/8ea77-56633-b548c_downloadOriginal?v=f82a461a
Istruzioni di installazionehttps://contenthub.velux.com/api/public/content/product-guide_454896?v=3c3776d2
Certificazione di Prodottohttps://www.velux.com/ce-marking
Descrizione Tecnicahttps://contenthub.velux.com/api/public/content/8ea77-56633-b548c_downloadOriginal?v=f82a461a

Relativo a

Materiale principalePino
Materiale secondarioAlluminio

Classificazioni

Categoria BIMobjectFinestre - Finestre da tetto
Clasificazione IFCTetto
Nome UNSPSCRoofing accessories
Codice UNSPSC301516
Codice Uniclass 2015Ss_30_30_72_73
Descrizione Uniclass 2015Roof window systems
Codice CSI MasterFormat 201408 61 00
Titolo CSI MasterFormat 2014Roof Windows
Numero OmniClass23-17 13 23
Titolo OmniClassRoof Windows
Codice CSI UniFormat IIB3020
Titolo CSI UniFormat IIRoof Openings
