Ruskin Aluminum Adjustable Louver ELM811H
Ruskin Aluminum Adjustable Louver ELM811H
    Ruskin

    Ruskin Aluminum Adjustable Louver ELM811H

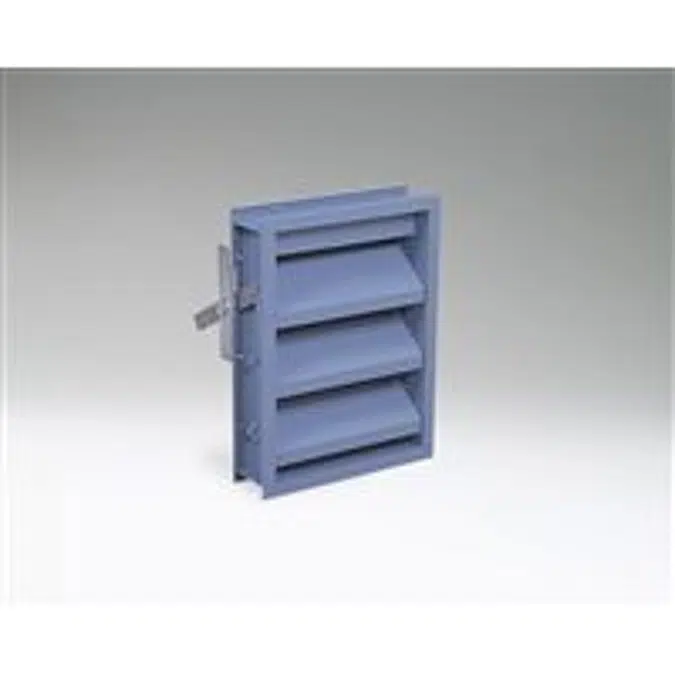

    The ELM811H Adjustable Louver - J-Style 45° angle is 4" deep and has a 45 degree blade angle. It features:

    • .125" thick extruded frame and blade construction
    • 38% free area.
    • Low torque operation and architecturally pleasing appearance with low leakage performance.
    • Concealed blade linkage is protected from weather exposure and reduces required installation depth.
    • Blade and jamb seal options provide tight blade-to-blade and blade-to-frame closure.
    Specifiche tecniche
    • Rif. Unicord-40
    • Famiglia di prodottoExterior Louvers and Grilles
    • Gruppo di famigliaAdjustable Louvers
    • TipoOggetto (oggetto singolo)
    • Data di pubblicazione2009-09-09
    • Numero di versione1
    Classificazioni
    • Categoria BIMobjectPorte - Griglie di aerazione

    Disponibilità Regionale

    Nord America
    Stati Uniti
