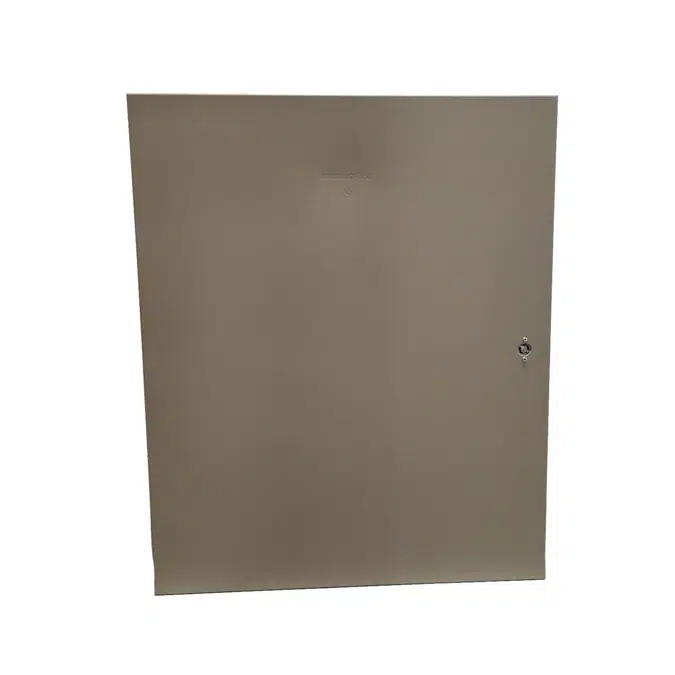

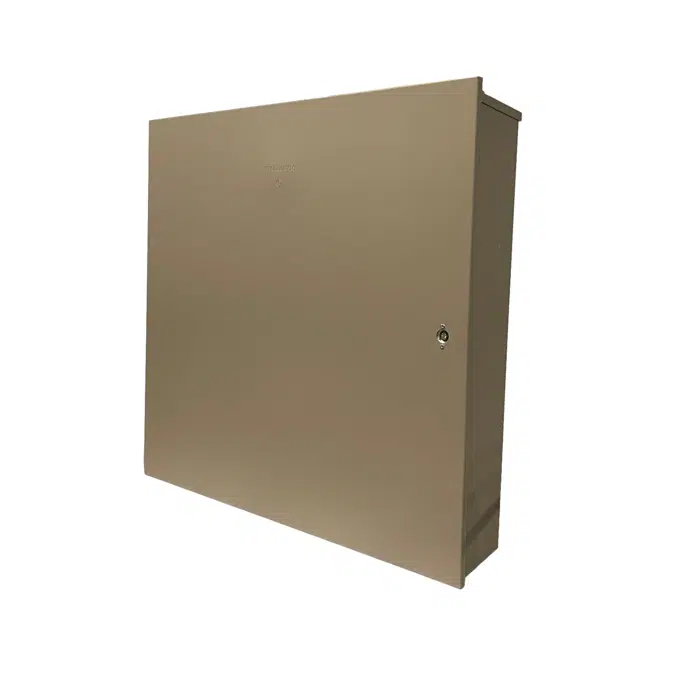

30″ Series Surface-Mount Enclosures

Features

• Two Models:
  • 30368W-UL: 30" W x 36" H x 8" D
  • 30369W-UL: 30" W x 36" H x 9" D
• Fully enclosed exterior service boxes
• Constructed of 14 gauge zinc-coated steel with powder-coat tan finish
• 14 gauge reinforced hinged door with 7/16" recessed hex latch
• "Communications" embossed
• Box weight is 85 lbs. (30368W-UL) | 105 lbs. (30369W-UL)
• UL listed (UL 1863); designed to NEMA 3R

30" Service Boxes Include:

• Enclosure w/ hinged door
• 3/4" plywood back board for mounting utility equipment
• 4-position #4-14 ground bar
• 30368W-UL: 2 knockouts 7/8" to 2-1/2" (for 3/4" to 2" conduit) & 10 knockouts 7/8" to 1-3/4" (for 3/4" to 1-1/2" conduit)
• 30369W-UL: 2 knockouts 2-1/2" to 3-1/2" (for 2" to 3" conduit) & 8 knockouts 1-3/8" to 1-3/4" (for 1" to 1-1/2" conduit)
