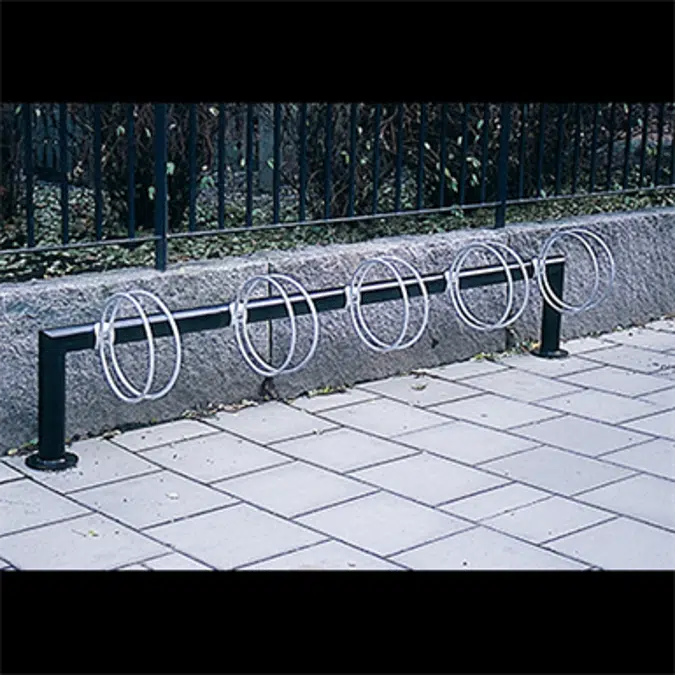

Goggle bicycle rack - single sided, 5 bicycles

Voce di capitolato

Voce di capitolato

• Weight of each post used for ground attachment: 8 kg. Some assembled required. Available in single or double-sided versions, wall-mounted or topped with a wooden ledge. The frame is made from zinc-plated, polyester powder-coated pipe steel with a diameter of 76 mm, coloured black RAL 9005. The hoops are made from hot-dip galvanized steel with a diameter of 12 mm. The supporting post are made from hot-dip galvanised steel. The base plate version attaches to the surface with bolts. Bolts are not included. The steel bars secure to the frame with bolts, making it easy to compensate for height differences. The supports for the ground-mounted version are extended for mounting beneath the surface of the ground. The attachable version can be bolted to a precast concrete foundation with bolts M10. Bolts are not included. Maintenance: Polyester powder-coated steel can be treated with alkyd oil enamel as required.

Specifiche tecniche

Specifiche tecniche

• Rif. Unicogoggle_bicycle_rack_single5
• Famiglia di prodottoBicycle environment
• Gruppo di famigliaBicycle stand
• TipoOggetto (oggetto singolo)
• Data di pubblicazione2017-05-30
• Numero di versione1
• Altezza (mm)370
• Larghezza (mm)2450
• Profondità (mm)390

Links

Links

• Link al Prodottohttps://nola.se/en/products/goggle/
• Istruzioni di installazionehttps://cdn.nola.se/wp-content/uploads/products/542c63caa7f927.pdf

Relativo a

Relativo a

• Materiale principaleAcciaio verniciato a polvere
• Materiale secondarioAcciaio zincato
• Progettato inSvezia
• Prodotto inSvezia
• Peso Netto (Kg)26

Classificazioni

Classificazioni

• Categoria BIMobjectPaesaggio ed esterni - Arredo esterni
• Clasificazione IFCMobilia
• Nome UNSPSCFurniture and Furnishings
• Codice UNSPSC56
• Codice Uniclass 2015Pr_40_50
• Descrizione Uniclass 2015Furnishings
• Codice CSI MasterFormat 201412 00 00
• Titolo CSI MasterFormat 2014Furnishings
• Numero OmniClass23-21 00 00
• Titolo OmniClassFurnishings, Fixtures and Equipment Products
• Codice CSI UniFormat IIE2010
• Titolo CSI UniFormat IIFixed Furnishings
